Description
The Wavenet AC1404RXX4-500 is a premium 14 AWG 4-conductor stranded oxygen-free bare copper (OFC) riser-rated (CMR/CL3R) audio cable, designed for permanent in-wall and in-ceiling speaker installations. Supplied in a convenient 500ft REELEX II box for tangle-free pulling.
Key Features
14 AWG 4-Conductor OFC: Four 14 AWG oxygen-free bare copper stranded conductors (105 strands each) deliver superior signal clarity and low resistance (9.2 ohms) for long cable runs.
CMR/CL3R Riser Rated: ETL listed and compliant with CMR/CL3R riser fire safety standards (FT4), making it suitable for installation in vertical riser shafts and between floors in residential and commercial buildings.
PVC Insulation & Jacket: Durable PVC insulation on each conductor (0.1023 in diameter) with a tough PVC outer jacket (0.3149 in diameter) for long-lasting protection.

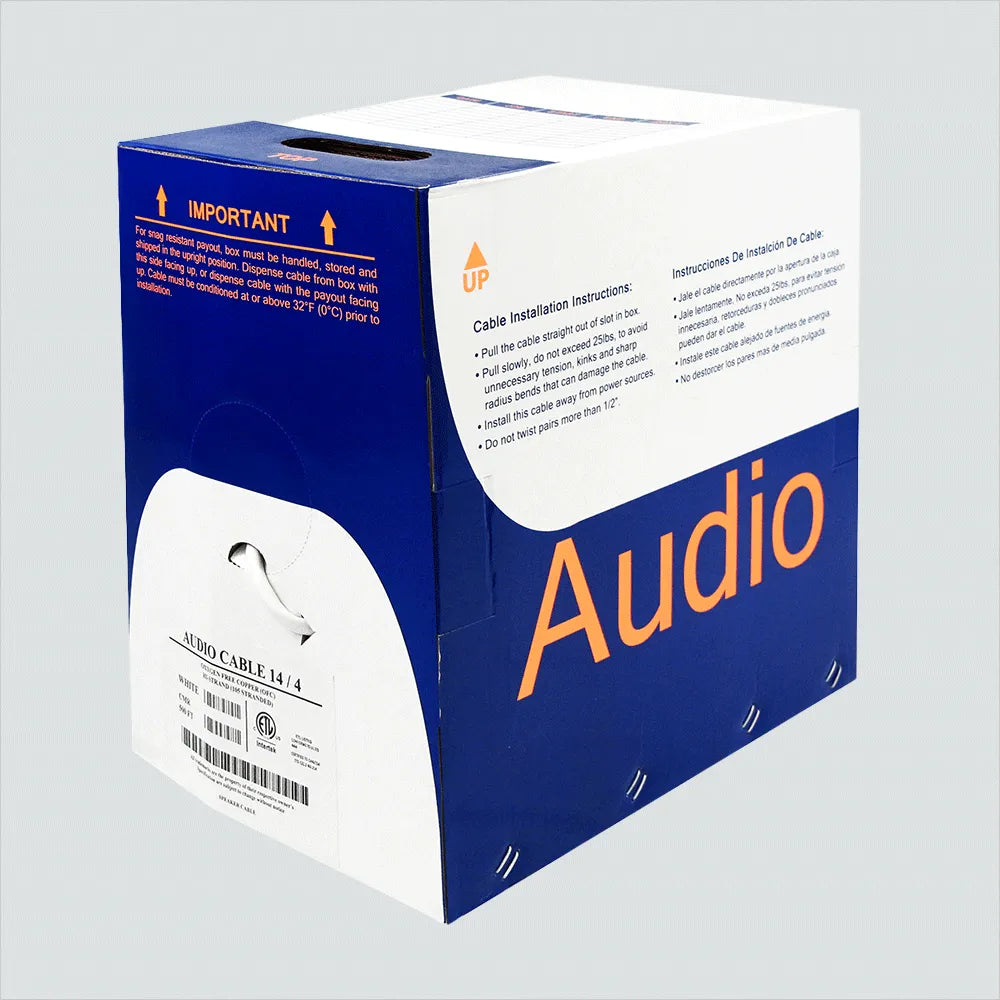

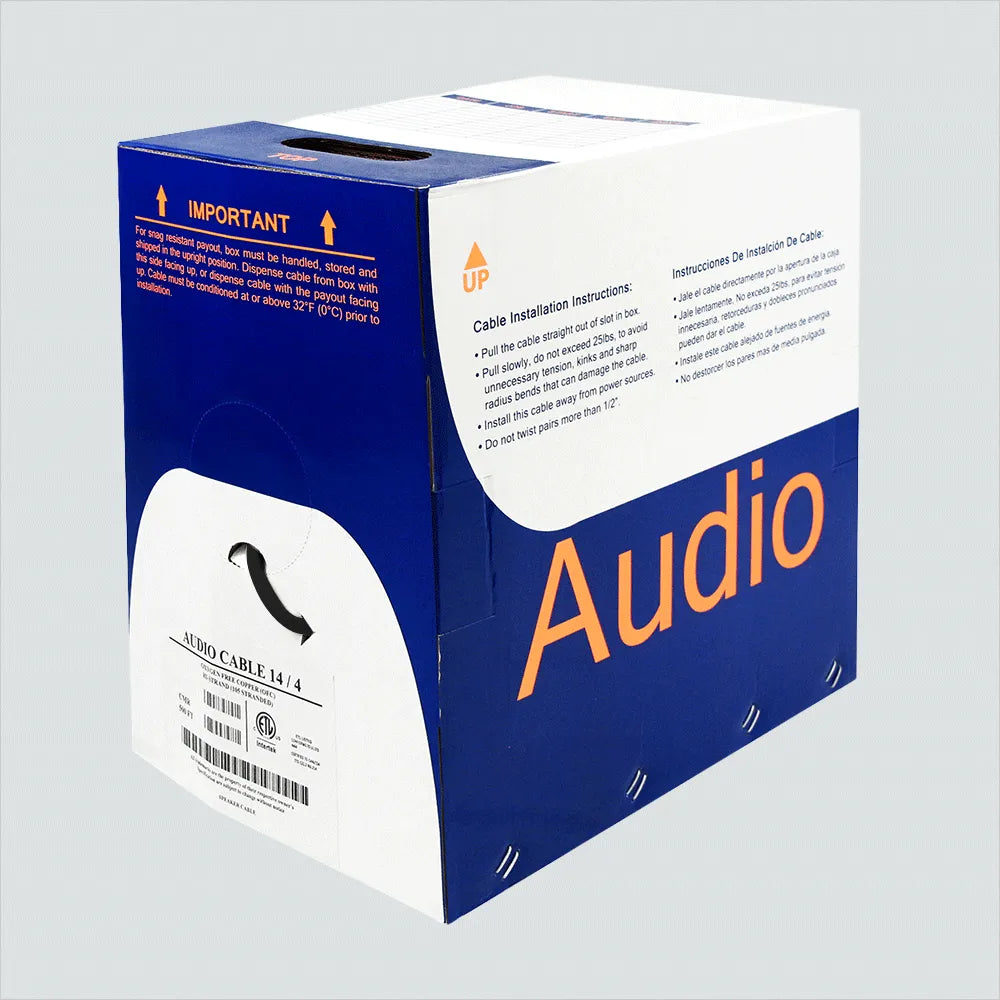

500ft REELEX II Box: Packaged in the REELEX II dispenser box for fast, kink-free deployment — no tangles or twists during installation.

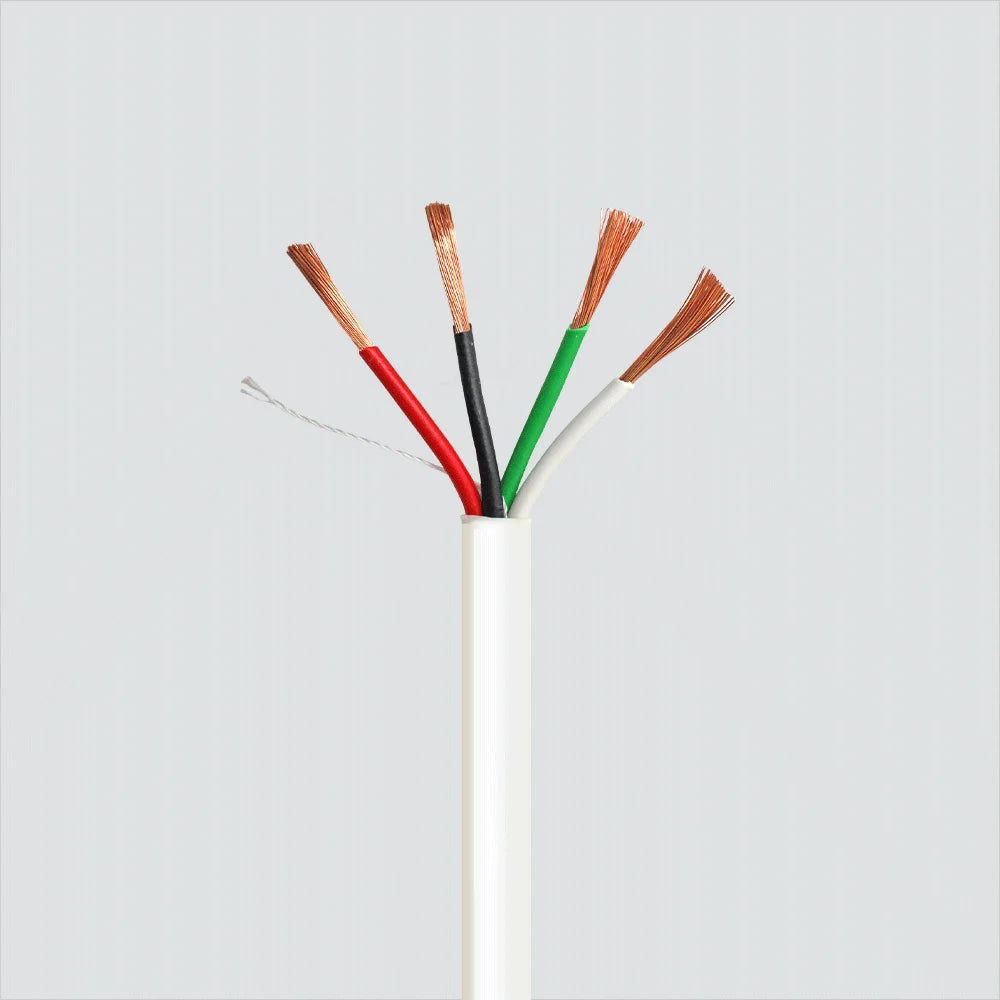

Color-Coded Conductors: Black, Red, White, and Green insulation for easy polarity identification and quick termination.
Technical Specifications
| Conductor Material | Oxygen-Free Bare Copper (OFC) |
| Number of Conductors | 4 |
| AWG | 14 |
| Stranding | 105 x 0.0063 in |
| Insulation Material | PVC |
| Insulation Diameter | 0.1023 in |
| Jacket Material | PVC |
| Outer Diameter | 0.3149 in |
| Conductor Resistance | 9.2 ohms |
| Nominal Weight | 42 lbs |
| Rating | CMR/CL3R / FT4 / 75C |
| Package | 500 ft REELEX II |
Applications
Ideal for in-wall and in-ceiling speaker wiring, home theater installations, commercial audio systems, distributed audio, and background music systems where riser-rated cable is required by local building codes.
Additional Info & Specs
Conductor: Oxygen-Free Bare Copper | Conductors: 4 | AWG: 14 | Stranding: 105 x 0.0063 in | Insulation: PVC (0.1023 in) | Jacket: PVC (0.3149 in) | Resistance: 9.2 ohms | Weight: 42 lbs | Rating: CMR/CL3R / FT4 / 75C | Package: 500 ft REELEX II
