Product Overview

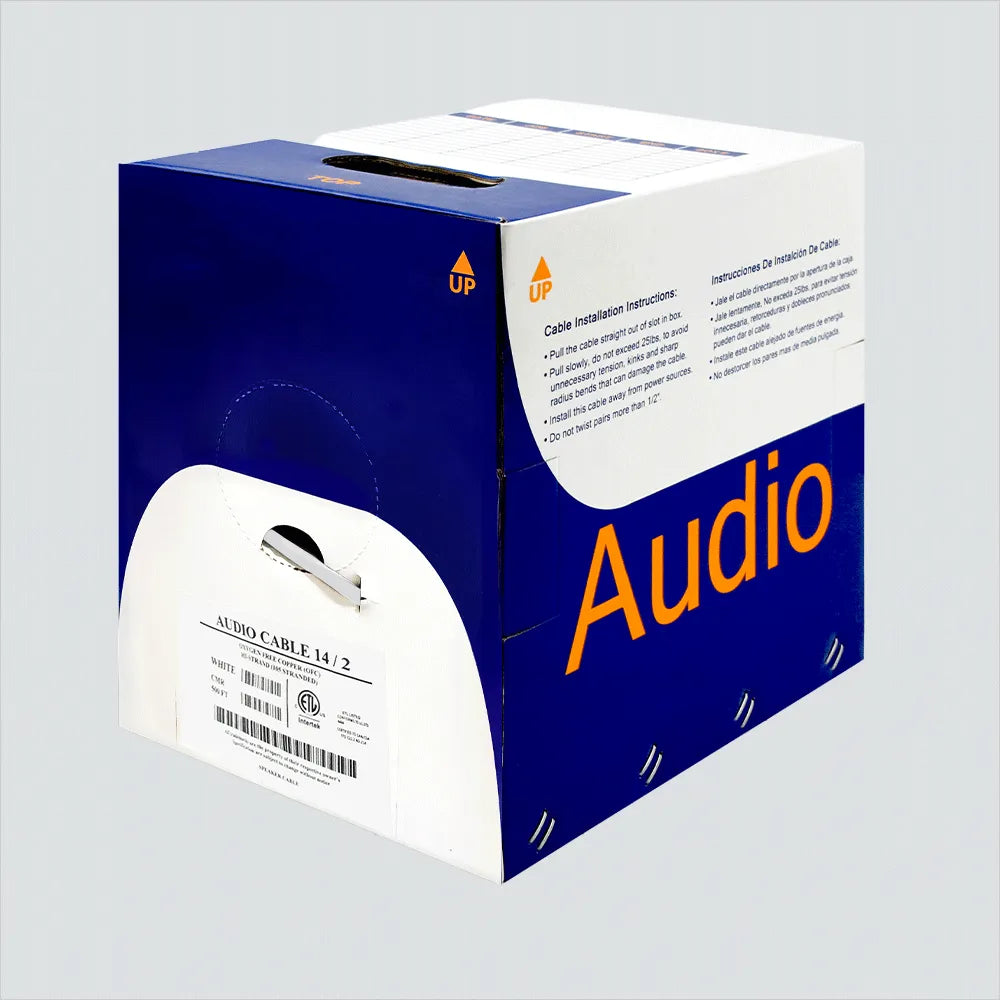

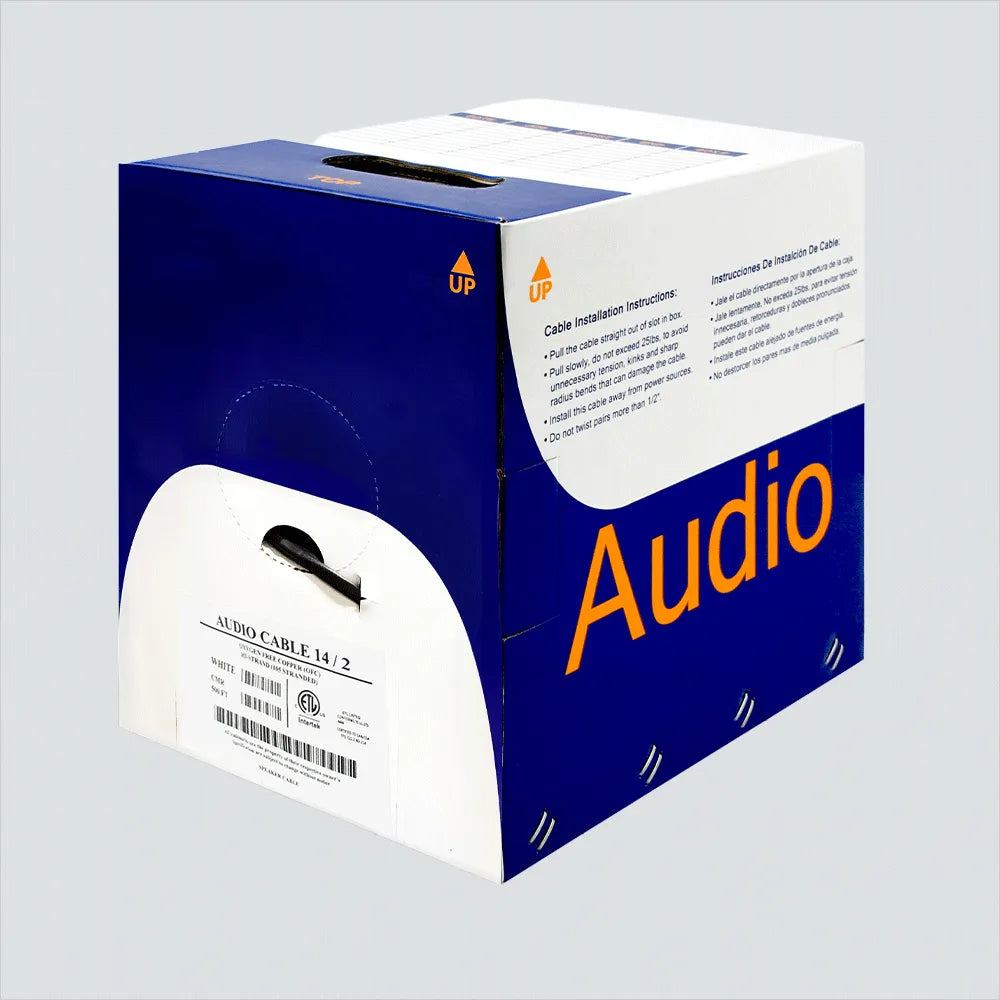

The Wavenet AC1402RXX4-500 is a 14/2 stranded oxygen-free bare copper (OFC) riser-rated (CMR/CL3R) audio cable designed for professional communication and signal control systems. With 105 strands of 14AWG bare copper per conductor, this cable delivers superior signal clarity and flexibility for permanent installations.
Key Features
- 14AWG 2-conductor stranded oxygen-free bare copper (OFC)
- 105 strands per conductor for enhanced flexibility
- CMR/CL3R riser-rated for in-wall installations
- 500ft REELEX II dispenser box for tangle-free pulling
- ETL listed with 300V voltage rating
- PVC insulation and overall PVC jacket
- Nylon rip cord for easy jacket stripping
Technical Specifications
| Conductor | Oxygen-Free Bare Copper (OFC) |
| Number of Conductors | 2 |
| AWG | 14 |
| Stranding | 105 x 0.0063 in |
| Insulation Material | PVC |
| Insulation Diameter | 0.1023 in |
| Assembly Diameter | 0.2047 in |
| Jacket Material | PVC |
| Outer Diameter | 0.2519 in |
| Conductor Resistance | 9.2 ohms |
| Voltage Rating | 300V |
| Nominal Weight | 22 lbs |
| Length | 500 ft |
| Rating | CMR / CL3R / FT4 / 75C |
Applications
Ideal for in-wall speaker installations, commercial audio systems, distributed audio, and low-voltage signal control applications where riser-rated (CMR) cable is required by local building codes.
Additional Info & Specs
Technical Specifications
| Conductor | Oxygen-Free Bare Copper (OFC) |
| Number of Conductors | 2 |
| AWG | 14 |
| Stranding | 105 x 0.0063 in |
| Insulation Material | PVC |
| Insulation Diameter | 0.1023 in |
| Assembly Diameter | 0.2047 in |
| Jacket Material | PVC |
| Outer Diameter | 0.2519 in |
| Conductor Resistance | 9.2 ohms |
| Voltage Rating | 300V |
| Nominal Weight | 22 lbs |
| Length | 500 ft |
| Rating | CMR / CL3R / FT4 / 75C |
