Zoom
Description

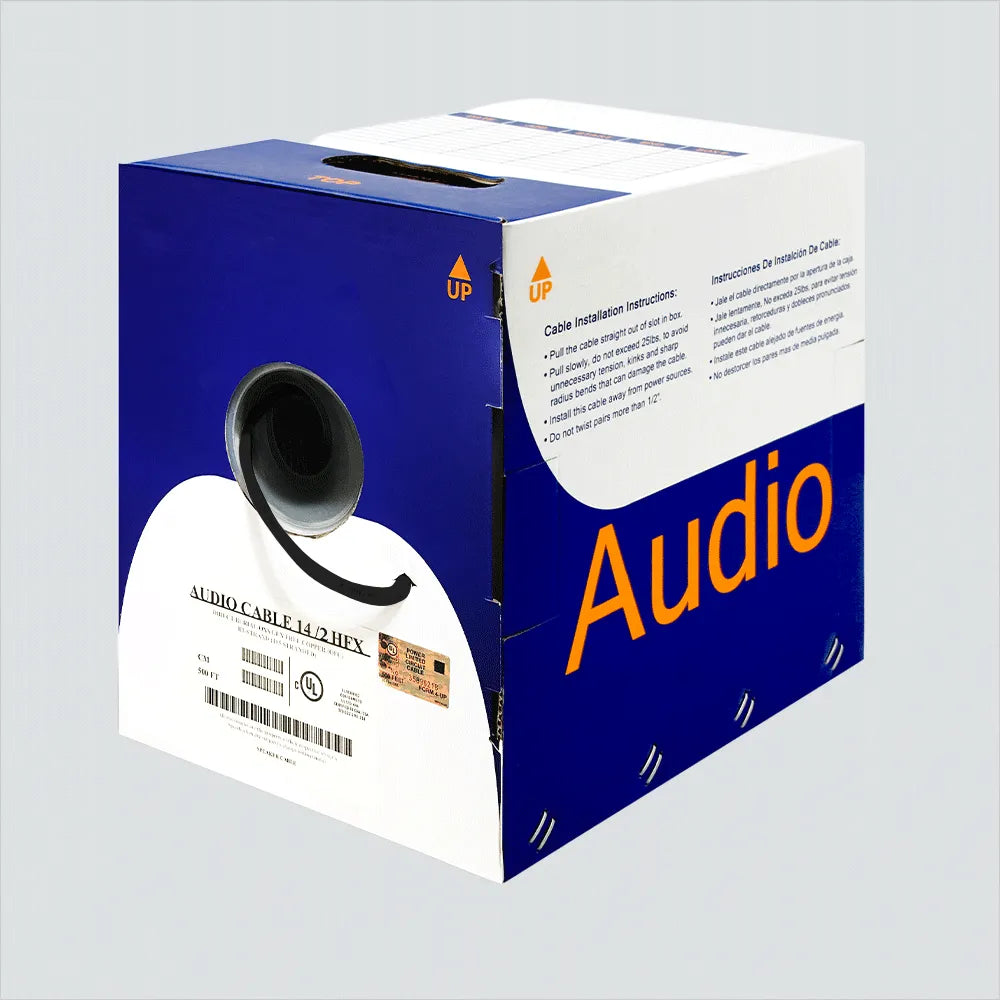

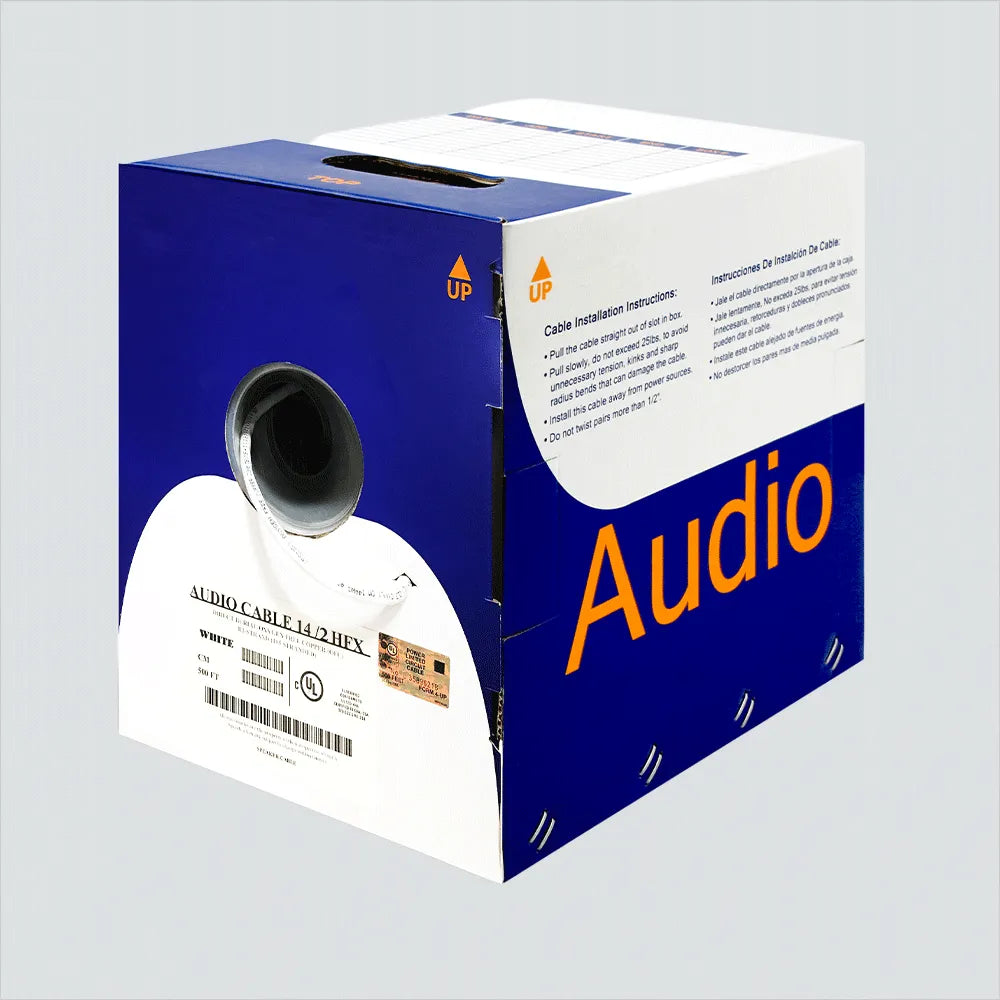

The Wavenet AC1402HFXMXX4-500 is a premium 14 AWG 2-conductor stranded bare copper audio cable designed for professional indoor and outdoor installations. Featuring a glossy PVC waterblock jacket with UV rating for direct burial applications, this CMR riser-rated cable delivers reliable signal transmission for commercial audio, sound, control, and instrumentation systems.
Construction & Design
Each conductor is constructed from 105 strands of 0.16mm oxygen-free copper wire, providing excellent conductivity and flexibility. A paper binding tape with approximately 125% coverage ensures consistent conductor geometry, while the nylon rip cord simplifies jacket removal during termination. The 0.4mm PVC insulation per conductor and 0.84mm glossy PVC outer jacket provide robust mechanical protection.
Key Specifications
| AWG Size | 14 AWG (2.111 mm.sq) |
| Conductor Material | Oxygen-Free Bare Copper (OFC) |
| Stranding | 105 x 0.16mm |
| Number of Conductors | 2 (Black/Red insulation) |
| Insulation Material | PVC, 0.4mm thickness |
| Insulation Diameter | 2.7mm +/- 0.15mm |
| Jacket Material | Glossy PVC, UV Rated |
| Jacket Thickness | 0.84mm +/- 0.1mm |
| Cable Diameter | 7.3mm +/- 0.2mm |
| Jacket Colors | Black, White |
| Length | 500 ft (REELEX II box) |
| Ratings | CM CL2/CL3, CMR Riser, Direct Burial |
| Binding Tape | Paper Tape, ~125% Coverage |
| Rip Cord | Nylon 210D |
Applications
Ideal for multi-conductor audio/sound systems, control wiring, instrumentation, LED lighting, and general-purpose signal transmission in commercial riser and direct burial outdoor environments. CM CL2/CL3 approved for in-wall installation.
Additional Info & Specs
Conductor: 14 AWG (2.111 mm.sq) oxygen-free bare copper, 105 strands x 0.16mm. Insulation: PVC 0.4mm. Jacket: Glossy PVC 0.84mm UV rated. Cable OD: 7.3mm. Ratings: CM CL2/CL3, CMR Riser, Direct Burial. Length: 500ft REELEX II.
