Wavenet AC1202RWH4-500 12/2 OFC Stranded Bare Copper Riser Audio Cable
The Wavenet AC1202RWH4-500 is a premium 12 AWG 2-conductor audio cable built with oxygen-free bare copper (OFC) stranding for superior signal clarity and low resistance. Rated CMR/CL3R, this 500-foot spool is ideal for in-wall residential and commercial speaker installations where riser-rated fire safety is required.
Key Features

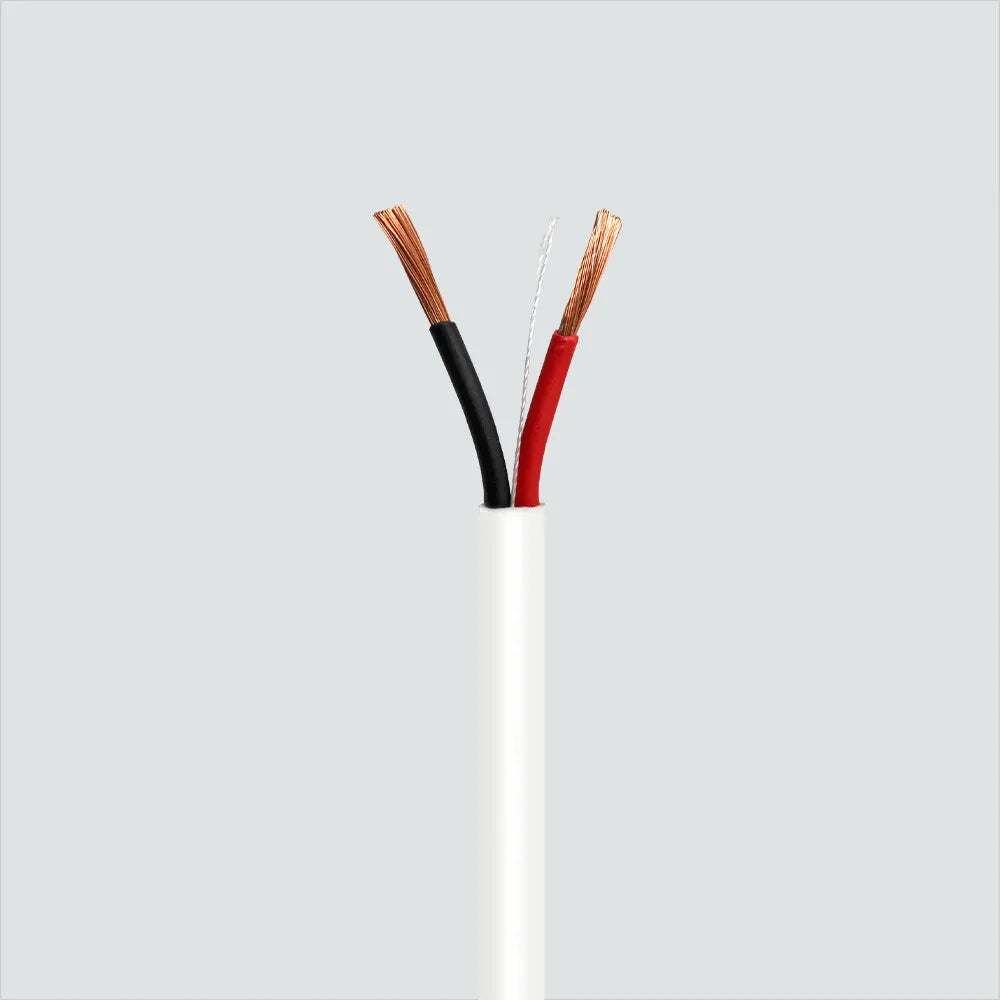

- Conductor: 12 AWG, 65-strand oxygen-free bare copper (OFC)
- Conductor Resistance: 5.8 ohms
- Jacket: White PVC, CMR/CL3R riser-rated, FT4 compliant
- Insulation: Black/Red PVC, 75°C temperature rating

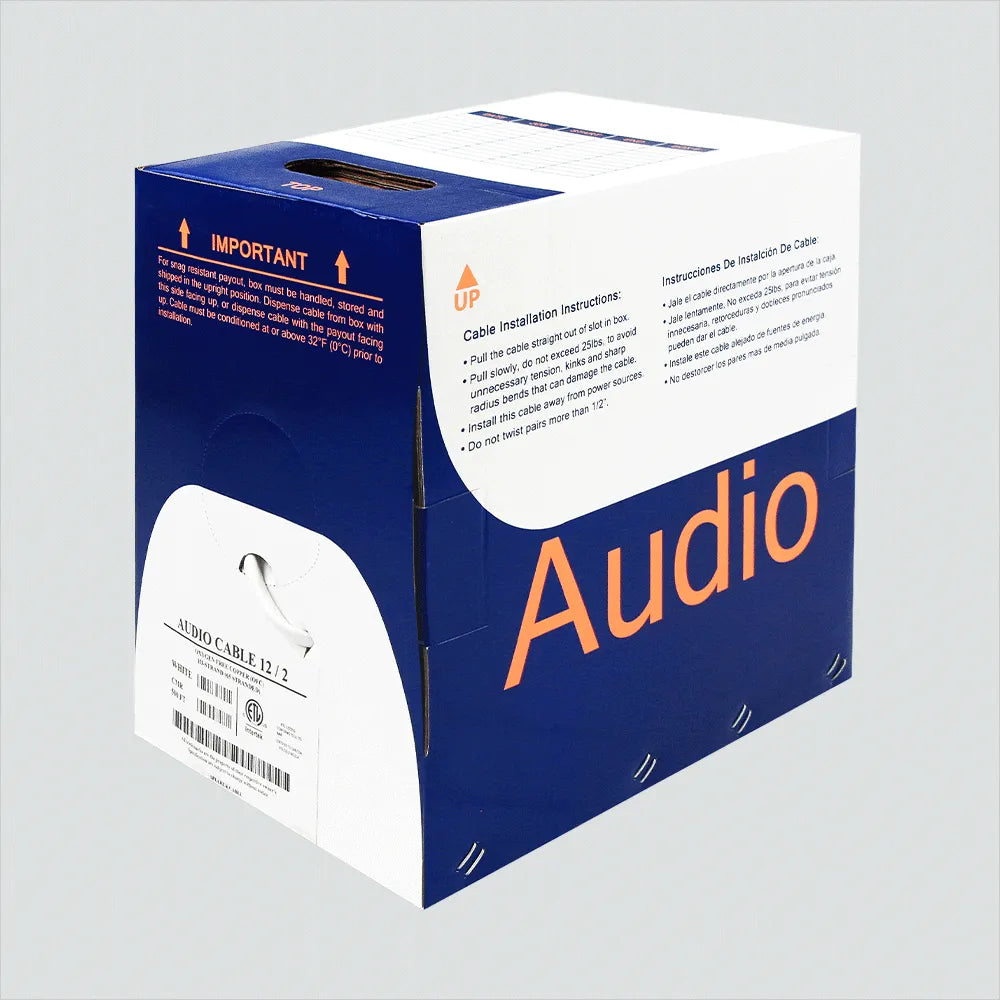

- Length: 500 ft spool (REELEX II packaging)
- Certifications: C(ETL)US, CMR/CL3R, FT4
Technical Specifications
| Conductor Material | Oxygen-Free Bare Copper (OFC) |
| Number of Conductors | 2 |
| AWG | 12 |
| Stranding | 65 strands |
| Conductor Diameter | 0.01 in |
| Conductor Resistance | 5.8 ohms |
| Insulation Material | PVC |
| Insulation Diameter | 0.1259 in |
| Jacket Material | PVC |
| Outer Diameter | 0.3149 in |
| Temperature Rating | 75°C |
| Rating | CMR/CL3R, FT4, C(ETL)US |
| Weight | 35 lbs |
Additional Info & Specs
| Conductor Material | Oxygen-Free Bare Copper (OFC) |
| Number of Conductors | 2 |
| AWG | 12 |
| Stranding | 65 strands |
| Conductor Diameter | 0.01 in |
| Conductor Resistance | 5.8 ohms |
| Insulation Material | PVC |
| Insulation Diameter | 0.1259 in |
| Jacket Material | PVC |
| Outer Diameter | 0.3149 in |
| Temperature Rating | 75°C |
| Rating | CMR/CL3R, FT4, C(ETL)US |
| Weight | 35 lbs |
