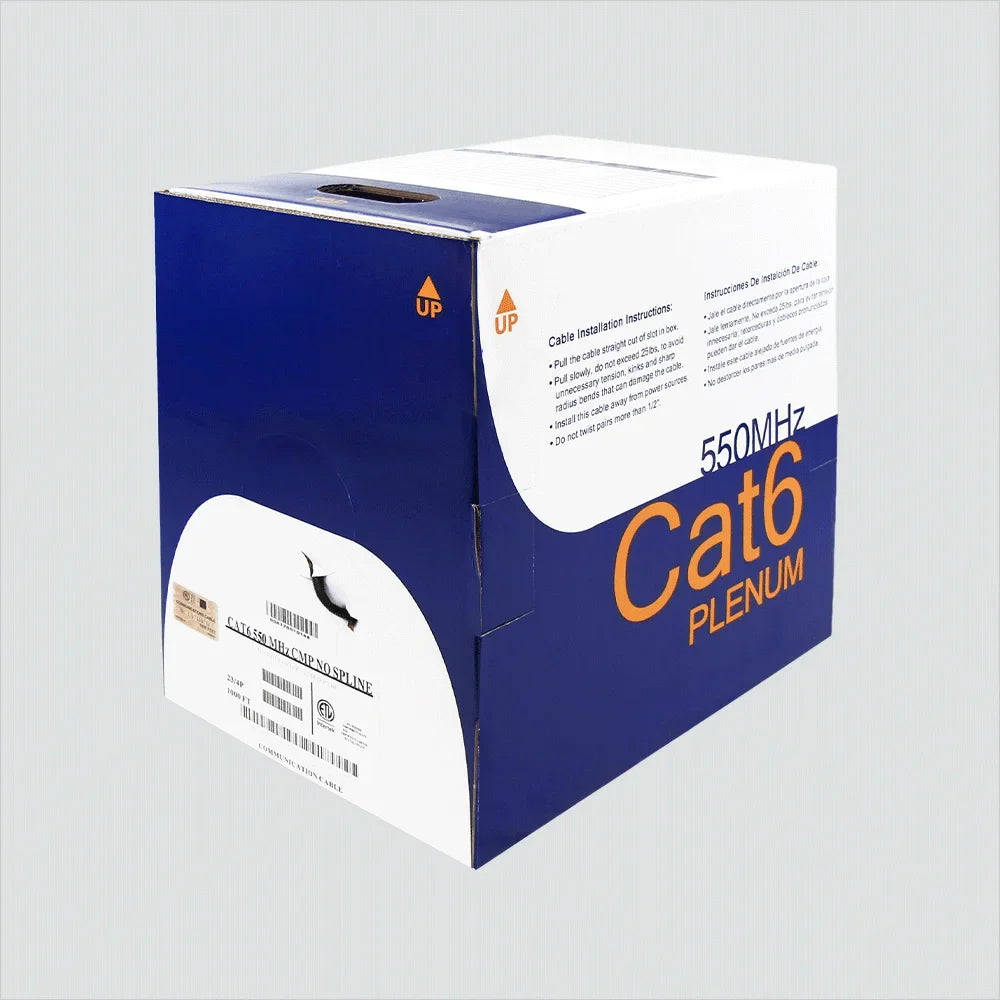

Wavenet Cat6 Plenum 550MHz UTP Cable - 23AWG 4-Pair No-Spline, Black
The Wavenet 6E04UPSPLSXX4N is a Category 6 UTP plenum (CMP) cable engineered for professional structured cabling in commercial and institutional buildings. Built with four solid bare copper conductors in 23 AWG and a flame-retardant PVC jacket, this 1000-foot reel delivers dependable gigabit performance while meeting strict fire-safety requirements for air-handling spaces.
Product Specifications
- Cable Type: Category 6 UTP (Unshielded Twisted Pair)
- Bandwidth: 550 MHz (exceeds standard Cat6 requirements)
- Fire Rating: CMP (Plenum), FT6
- Conductor: 23 AWG solid bare copper
- Configuration: 4-pair
- Design: No-spline (non-separator) construction
- Jacket Color: Black
- Compliance: C(UL) listed FT6 CMP, C(UL)US verified to TIA-568-C.2, RoHS compliant
- Part Number: 6E04UPSPLSXX4N
- Packaging: 1000 ft / Reelex II box
Electrical Performance
- DC Resistance: 9.38 Ω / 100m max @ 20°C
- Resistance Unbalance: 5% max @ 20°C
- Mutual Capacitance: 5.6 nF / 100m
- Capacitance Unbalance: 330 pF / 100m
- Delay Skew: 45 ns / 100m max
- Nominal Velocity of Propagation: 69%
Construction Details
- Conductor Material: Solid bare copper
- Insulation Material: FEP
- Insulation Thickness: 0.0088 in average
- Jacket Material: Flame-retardant PVC
- Jacket Wall Thickness: 0.023 in average
- Nominal Outer Diameter: 0.205 in
- Weight: 26 lbs per 1000 ft
- Color-Coding: Standard TIA-568 pair colors (White/Blue, White/Orange, White/Green, White/Brown)
- Ripcord: Included
Environmental Specifications
- Installation Temperature: 0°C to +75°C
- Operating Temperature: -20°C to +75°C
- Tensile Strength: ≥ 13.8 MPa
Applications
- Commercial building network infrastructure
- Data centers requiring plenum-rated cabling
- High-speed LAN backbones
- Gigabit Ethernet installations
- Voice, data, and video distribution systems
- Building automation and security networks
This black Cat6 plenum cable combines 550 MHz bandwidth with CMP/FT6-rated safety, making it a reliable choice for installers who need code-compliant performance in plenum spaces without the added cost of a spline.
Additional Info & Specs
| Category | Cat6 (Category 6) |
| Jacket Rating | Plenum (CMP) |
| Frequency | 550 MHz |
| Conductor | 23 AWG Solid Bare Copper |
| Design | Non-Spline (UTP) |
| Length | 1000 ft (305 m) |
| Color | Black |
| Standard | TIA/EIA-568-C.2 |
| Part Number | 6E04UPSPLSXX4N |
