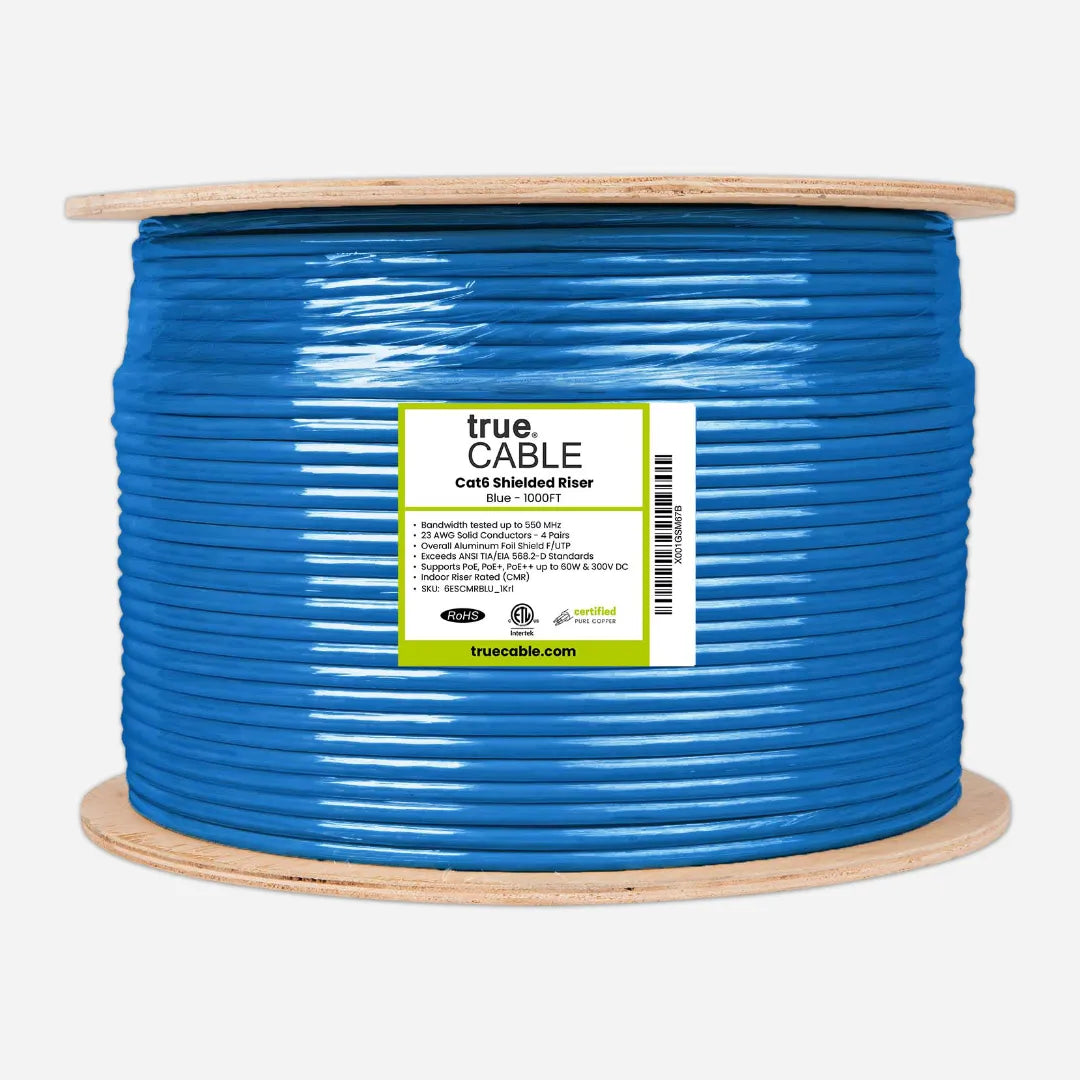

trueCABLE Cat6 Riser Shielded F/UTP Ethernet Cable
This trueCABLE Cat6 Riser cable delivers reliable 550MHz performance over a 1000ft bulk spool. Constructed with 23AWG solid bare copper conductors and an F/UTP aluminum foil shield, it is engineered for structured cabling installations in riser spaces where fire safety and signal integrity both matter.
Construction & Performance
Each of the four twisted pairs is insulated with PE and wrapped with a polyethylene tape over a central spline, with a solid tinned copper drain wire (0.40mm) ensuring a continuous ground path. The PVC jacket protects the core while the nylon ripcord simplifies termination. Rated to ANSI/TIA 568-2.D and ISO/IEC 11801, this cable supports PoE, PoE+, and PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W.
Electrical Specifications
| Conductor Gauge | 23AWG Solid Bare Copper |
| Frequency Rating | 550 MHz |
| Shielding | F/UTP (Aluminum Foil) |
| Impedance | 100 ± 15 Ω (1.0 – 550MHz) |
| Conductor DC Resistance | Max 68 Ω/km at 20°C |
| Max Operating Voltage | 300V |
| NVP | 66.3 |
| Delay Skew | ≤45 ns/100m |
| Length | 1000ft |
Mechanical & Environmental
| Jacket Material | PVC |
| Outer Diameter | 7.20 mm (±0.2mm) |
| Min Bend Radius | 5 cm / 2.00 in |
| Max Installation Tension | 110N / 25lb-ft |
| Operating Temperature | -40°C to 75°C |
| Standards | ANSI/TIA 568-2.D, ISO/IEC 11801, UL-444 / cETLus, RoHS-3 |
Additional Info & Specs
| Conductor | 23AWG Solid Bare Copper |
| Frequency | 550 MHz |
| Shielding | F/UTP (Aluminum Foil) |
| Pairs | 4 Twisted Pairs |
| Impedance | 100 +/- 15 Ohm |
| DC Resistance | Max 68 Ohm/km |
| Voltage | 300V |
| NVP | 66.3 |
| Jacket | PVC |
| Outer Dia | 7.20 mm |
| Bend Radius | 5 cm |
| Temp | -40C to 75C |
| Length | 1000ft |
| Standards | ANSI/TIA 568-2.D, ISO/IEC 11801, UL-444, RoHS-3 |
