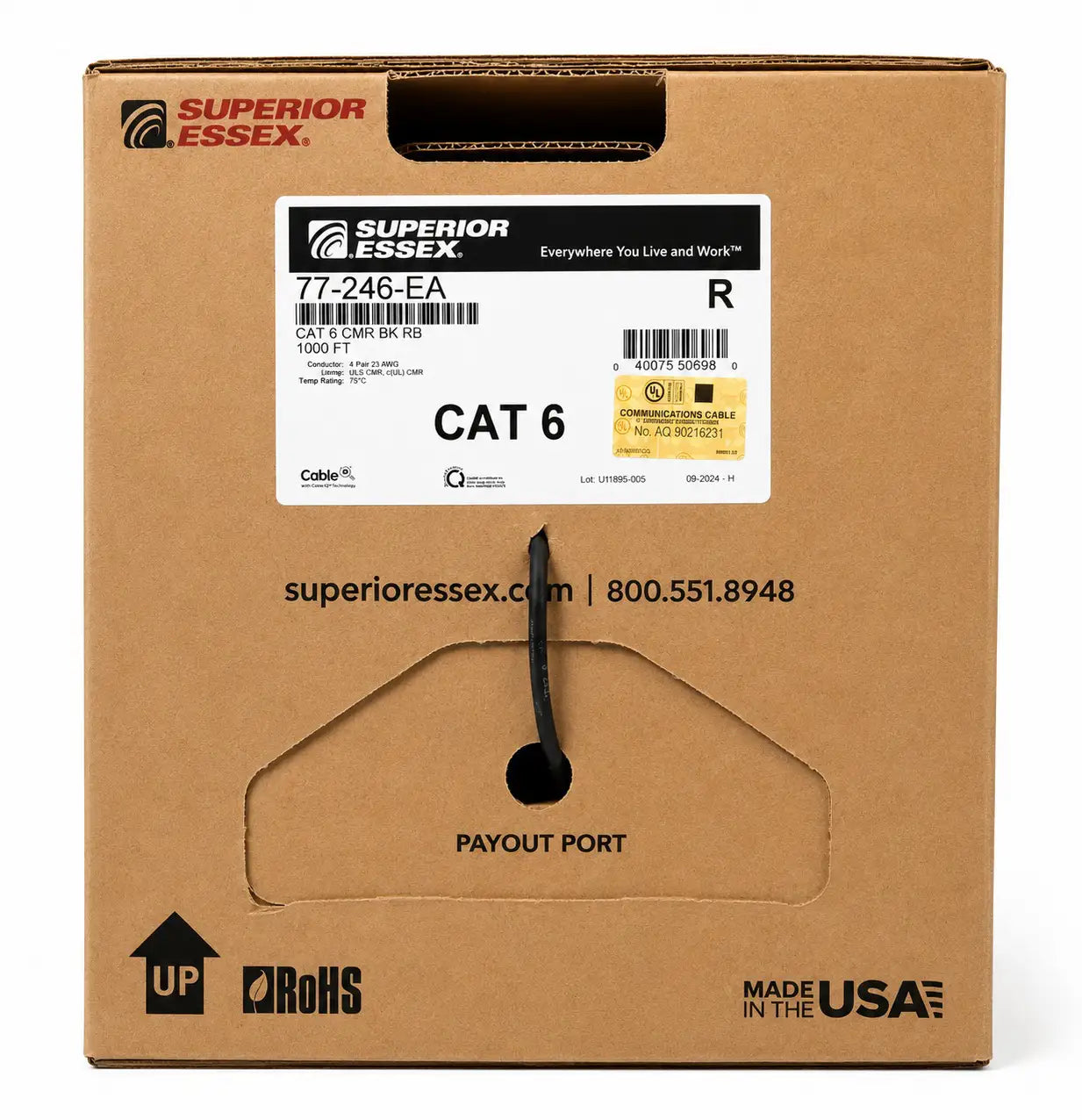

Superior Essex 77-246-EA — Cat6 Riser UTP 23AWG Solid Copper 1000ft Ethernet Cable
The Superior Essex 77-246-EA is a premium Category 6 riser-rated (CMR) UTP cable built with 23 AWG solid annealed copper conductors. UL Verified and ANSI/TIA-568.2-E compliant, this 1000ft cable delivers reliable 1000BASE-T and PoE (IEEE 802.3bt Type 1–4) performance for enterprise LAN, residential, and commercial network installations. Made in the USA.
Key Features
- Category 6 Performance: Certified to ANSI/TIA-568.2-E standards for 250 MHz bandwidth
- Solid Annealed Copper: 23 AWG bare copper conductors for superior signal integrity
- Riser Rated (CMR): UL 1666 compliant for vertical riser installations
- ColorTip® Pair Identification: Light Blue/Blue, Light Orange/Orange, Light Green/Green, Light Brown/Brown for fast termination
- BrakeBox® Packaging: Tangle-free 1000ft reel-in-box for smooth, fast pulls
- PoE Ready: Supports IEEE 802.3bt Type 1 through 4 (up to 100W)
- Made in USA: Zero Waste to Landfill certified manufacturing
Technical Specifications
| Part Number | 77-246-EA |
| Category | Cat 6 |
| Conductor AWG | 23 AWG (0.57 mm) |
| Conductor Material | Solid Annealed Copper |
| Number of Pairs | 4 (8 conductors) |
| Insulation Material | Polyolefin |
| Jacket Material | Flame Retardant PVC |
| Jacket Rating | Riser (CMR) |
| Nominal Diameter | 0.21 in (5.3 mm) |
| Nominal Weight | 22 lbs/kft |
| Characteristic Impedance | 100 ± 15 Ohms |
| NVP | 70% |
| Length | 1000 ft (BrakeBox®) |
| Standards | UL 444, CSA C22.2 No.214-08, UL 1666, ANSI/TIA-568.2-E |
| Certifications | UL Verified CAT 6, c(UL) Listed CMR |
| Origin | Made in USA |
Applications
- Enterprise LAN and structured cabling
- Residential network infrastructure
- Power over Ethernet (PoE / PoE+ / PoE++) up to 100W
- 10BASE-T, 100BASE-TX, 1000BASE-T Ethernet
- Wi-Fi 6/6E access point backhaul
Additional Info & Specs
| Part Number | 77-246-EA |
| Category | Cat 6 |
| Conductor AWG | 23 AWG (0.57 mm) |
| Conductor Material | Solid Annealed Copper |
| Number of Pairs | 4 (8 conductors) |
| Insulation Material | Polyolefin |
| Jacket Material | Flame Retardant PVC |
| Jacket Rating | Riser (CMR) |
| Nominal Diameter | 0.21 in (5.3 mm) |
| Nominal Weight | 22 lbs/kft |
| Characteristic Impedance | 100 ± 15 Ohms |
| NVP | 70% |
| Length | 1000 ft (BrakeBox) |
| Standards | UL 444, CSA C22.2 No.214-08, UL 1666, ANSI/TIA-568.2-E |
| Certifications | UL Verified CAT 6, c(UL) Listed CMR |
| Origin | Made in USA |
