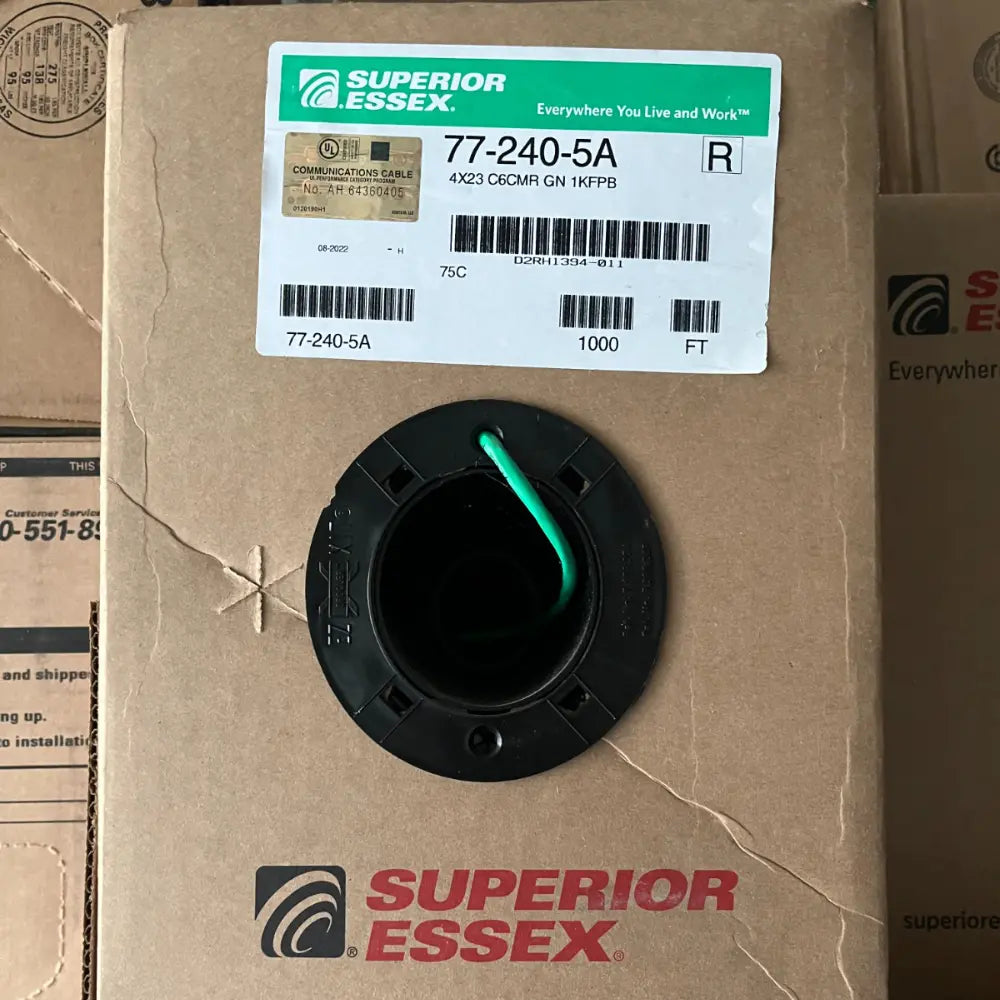

Superior Essex 77-240-5A Cat6 Riser UTP 23AWG 1000ft
Engineered for high-performance enterprise and residential local area networks, the Superior Essex 77-240-5A is a UL-verified Category 6 riser-rated UTP cable built with 23 AWG solid annealed copper conductors. This 1000ft POP Box delivers reliable 1000BASE-T Ethernet and full Power over Ethernet (PoE) support across IEEE 802.3bt Types 1 through 4, making it a versatile backbone for modern structured cabling infrastructure.
Electrical Characteristics
| Characteristic Impedance | 100 ± 15 Ohms |
| Nominal Velocity of Propagation | 70% |
Physical Characteristics
| Conductor | 23 AWG Solid Annealed Copper |
| Insulation | Polyolefin |
| Shielding | UTP (Unshielded Twisted Pair) |
| Nominal Diameter | 0.21 in | 5.3 mm |
| Nominal Weight | 22 lbs/kft | 33 kg/km |
| Jacket | Flame Retardant PVC, Green |
| Jacket Rating | CMR (Riser) |
Electrical Performance — Attenuation (dB/100m)
Meets or exceeds ANSI/TIA-568.2-E Category 6 channel and permanent link requirements for attenuation, NEXT, PS-NEXT, ELFEXT, PS-ELFEXT, RL, and PS-ACR across the full 1–250 MHz frequency range.
Features and Applications
- 4-pair UTP construction with ColorTip insulation for easy pair identification
- CMR riser-rated PVC jacket for vertical shaft and floor-to-floor installations
- Supports 10BASE-T, 100BASE-TX, 1000BASE-T Ethernet
- Full Power over Ethernet (PoE) IEEE 802.3bt Type 1–4
- UL Verified Cat 6, UL Listed, c(UL) Listed CMR
- Made in the USA
Construction
Four individually twisted pairs of 23 AWG solid annealed copper conductors with polyolefin insulation, assembled under a flame-retardant PVC jacket in green. ColorTip insulation coding: Pair 1 Light Blue/Blue, Pair 2 Light Orange/Orange, Pair 3 Light Green/Green, Pair 4 Light Brown/Brown.
Additional Information
- Standards: UL 444, CSA C22.2 No.214-08, UL 1666, ANSI/TIA-568.2-E
- Packaging: 1000 ft POP Box (Pallet Qty: 36,000 ft)
- Applications: Enterprise LAN, Residential, Data Centers
Additional Info & Specs
| Part Number | 77-240-5A |
| Category | Cat 6 |
| Conductor | 23 AWG Solid Annealed Copper |
| Impedance | 100 ± 15 Ohms |
| NVP | 70% |
| Jacket | PVC, Green, CMR Riser |
| Diameter | 0.21 in | 5.3 mm |
| Weight | 22 lbs/kft | 33 kg/km |
| Standards | UL 444, CSA C22.2 No.214-08, UL 1666, TIA-568.2-E |
| Packaging | 1000 ft POP Box |
