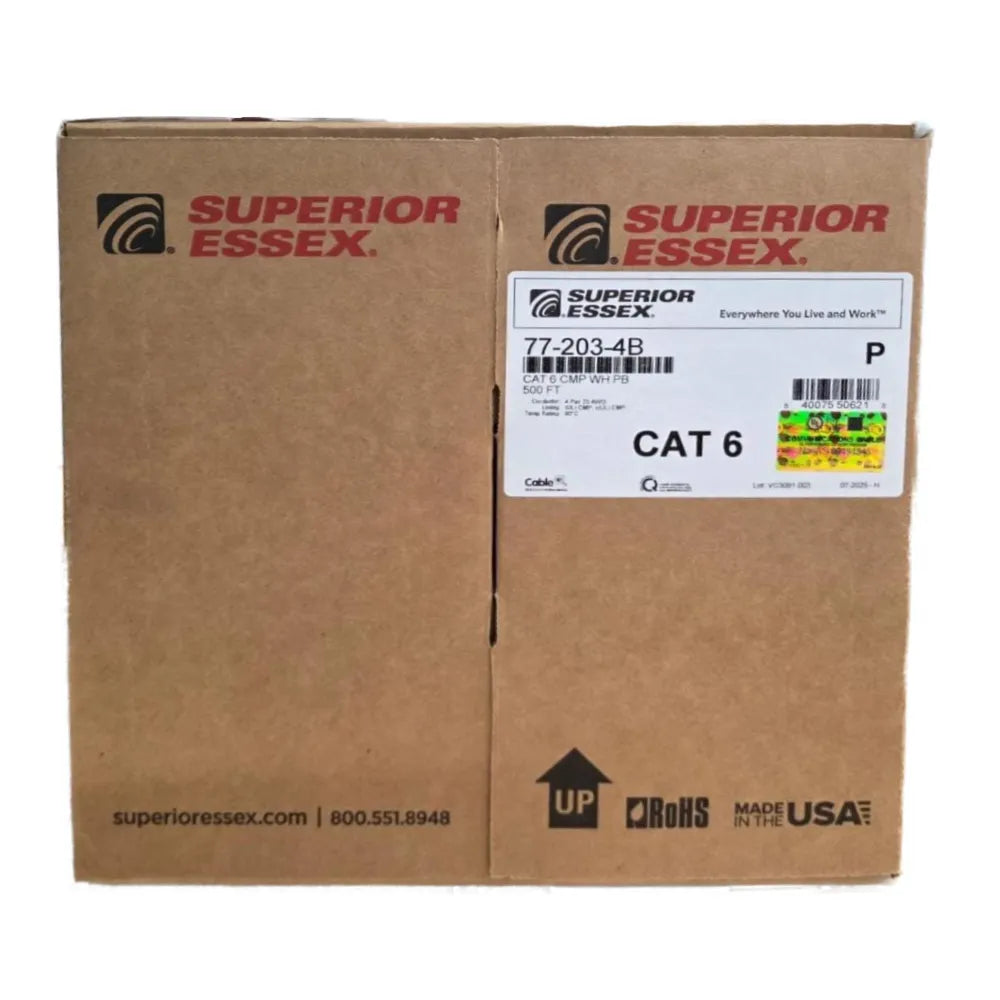

Superior Essex 77-203-4B Cat6 Plenum UTP 23AWG Solid Copper 500ft Ethernet Cable
The Superior Essex 77-203-4B is a premium Category 6 plenum-rated (CMP) UTP Ethernet cable built with 23AWG solid annealed copper conductors. Packaged in a convenient 500ft POP™ Box, this cable delivers reliable 1000BASE-T performance for enterprise LAN, residential, and Power over Ethernet (PoE) applications including IEEE 802.3bt Type 1 through 4.
Construction & Performance
Each of the 4 twisted pairs is insulated with FEP (Fluorinated Ethylene Propylene) and jacketed with a low-smoke plenum-rated (LSPVC) jacket, ensuring compliance with UL 444, CSA C22.2 No.214-08, and ANSI/TIA-568.2-E standards. The cable is UL Verified CAT 6 and c(UL) Listed CMP, making it suitable for plenum air-handling spaces without conduit.
Technical Specifications
| Part Number | 77-203-4B |
| Cable Type | Cat6 Plenum (CMP) UTP |
| Conductor | 23 AWG Solid Annealed Copper |
| Pairs / Count | 4 Pairs (8 Conductors) |
| Jacket Material | LSPVC (Low Smoke Plenum PVC) |
| Insulation | FEP |
| Characteristic Impedance | 100 ± 15 Ohms |
| NVP | 73% |
| Nominal Diameter | 0.21 in (5.3 mm) |
| Nominal Weight | 22 lbs/kft (33 kg/km) |
| Package Length | 500 ft |
| Package Type | POP™ Box |
| Standards | UL 444, CSA C22.2 No.214-08, ANSI/TIA-568.2-E |
| Ratings | UL Verified CAT 6, UL/c(UL) Listed CMP |
| Jacket Color | White |
Applications
- 10BASE-T through 1000BASE-T Ethernet
- Power over Ethernet (PoE) — IEEE 802.3bt Type 1 to 4
- Wi-Fi — IEEE 802.11a/b/g/n
- Enterprise LAN and residential structured cabling
Features & Benefits
- Solid Annealed Copper Conductors — Superior signal integrity and conductivity over CCA alternatives
- Plenum (CMP) Rating — Low-smoke LSPVC jacket for safe installation in air-handling spaces

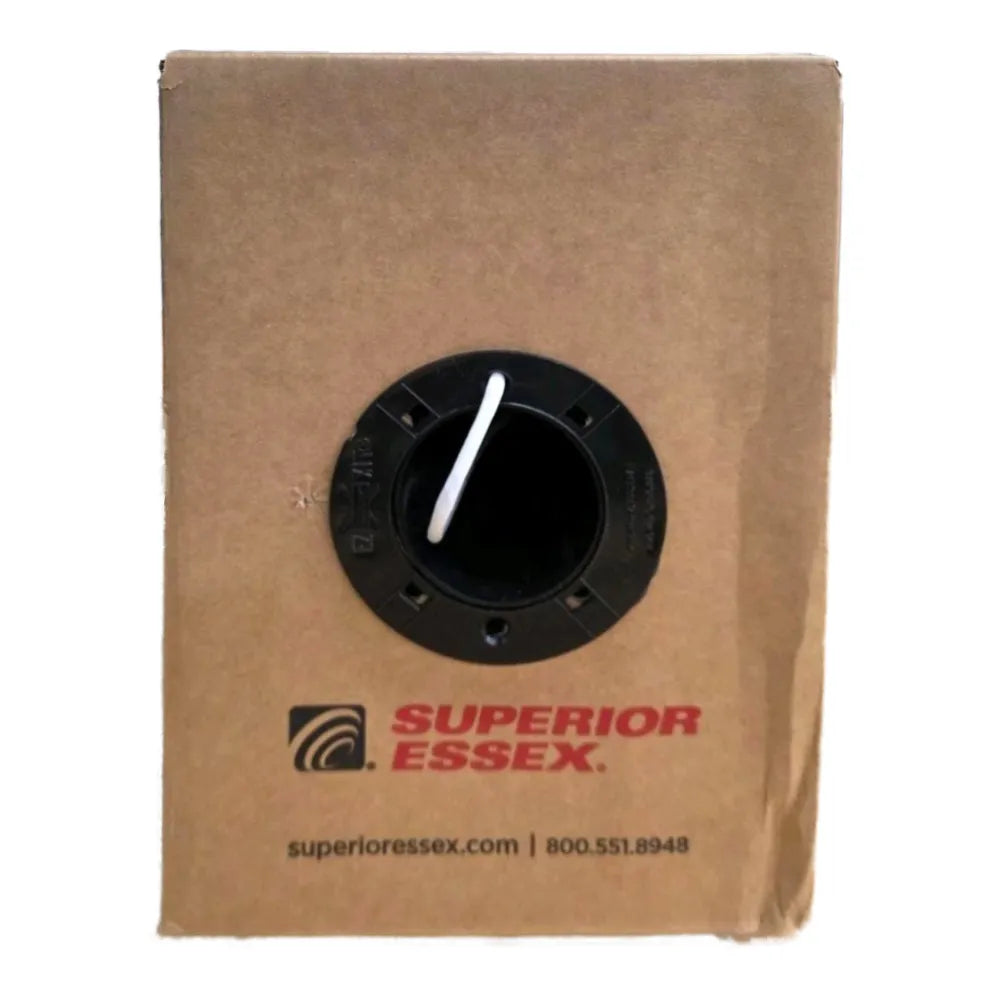

- POP™ Box Packaging — Tangle-free payout for fast, efficient pulls
- ColorTip® Pair Identification — Quick and accurate termination with light blue/blue, light orange/orange, light green/green, and light brown/brown pairs
- Made in the USA
Additional Info & Specs
| Part Number | 77-203-4B |
| Cable Type | Cat6 Plenum (CMP) UTP |
| Conductor | 23 AWG Solid Annealed Copper |
| Pairs | 4 (8 Conductors) |
| Jacket | LSPVC (Low Smoke Plenum PVC) |
| Insulation | FEP |
| Impedance | 100 ± 15 Ohms |
| NVP | 73% |
| Diameter | 0.21 in (5.3 mm) |
| Weight | 22 lbs/kft (33 kg/km) |
| Length | 500 ft |
| Standards | UL 444, CSA C22.2 No.214-08, ANSI/TIA-568.2-E |
| Ratings | UL Verified CAT 6, UL/c(UL) Listed CMP |
| Color | White |
