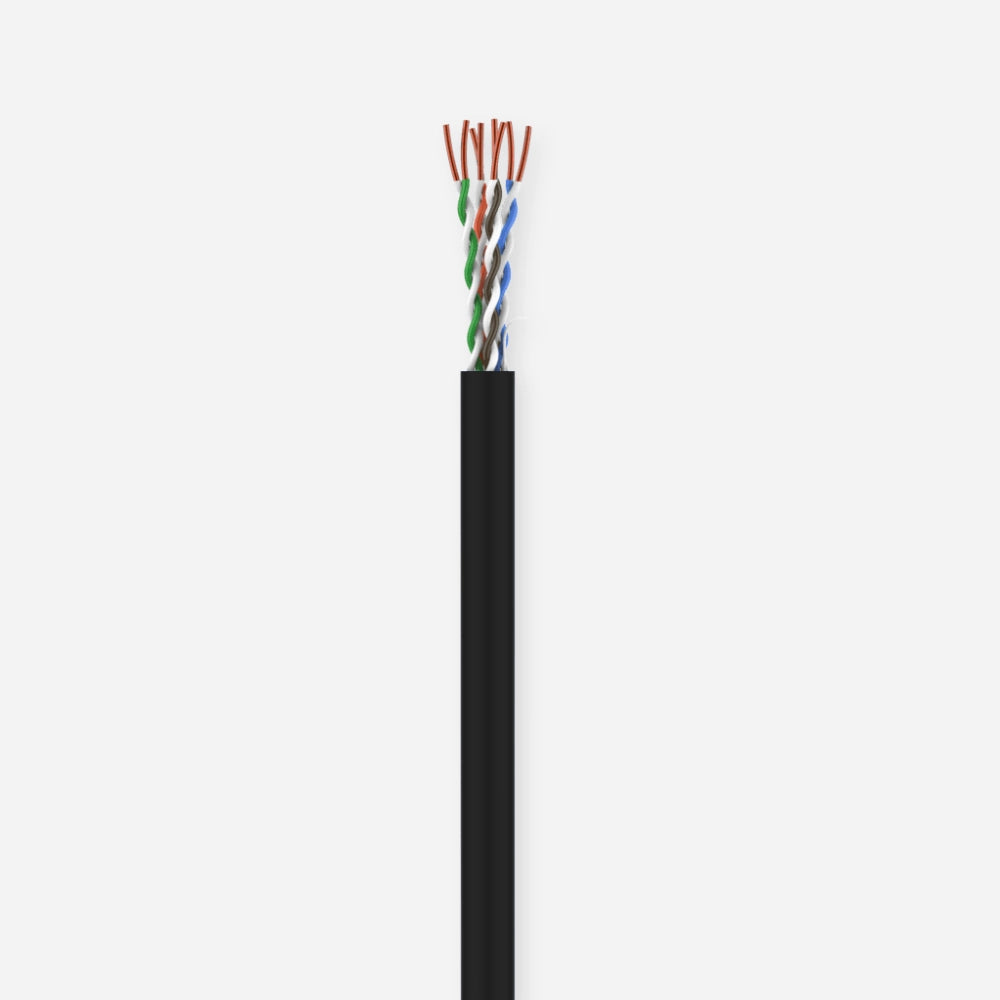

Proterial Cat 6 XS UTP Plenum Cable 1000ft Ethernet Cable
The Proterial 30237-008 is a UL Verified ANSI/TIA-568.2-D Category 6 plenum-rated UTP cable built with 24 AWG solid bare copper conductors. Engineered for guaranteed minimum performance and tested from 1 to 555 MHz, this 1,000 ft (305 m) Reelex package delivers reliable high-speed connectivity for structured cabling installations.
Key Features
- UL Verified ANSI/TIA-568.2-D Category 6
- ISO/IEC 11801, 2nd ed. Class EA Compliant
- RoHS 3 compliant
- Low Smoke Plenum (CMP) construction - NFPA 262, CSA Type FT6
- 24 AWG solid bare copper conductors
- Tested from 1 to 555 MHz
- No internal pair separator

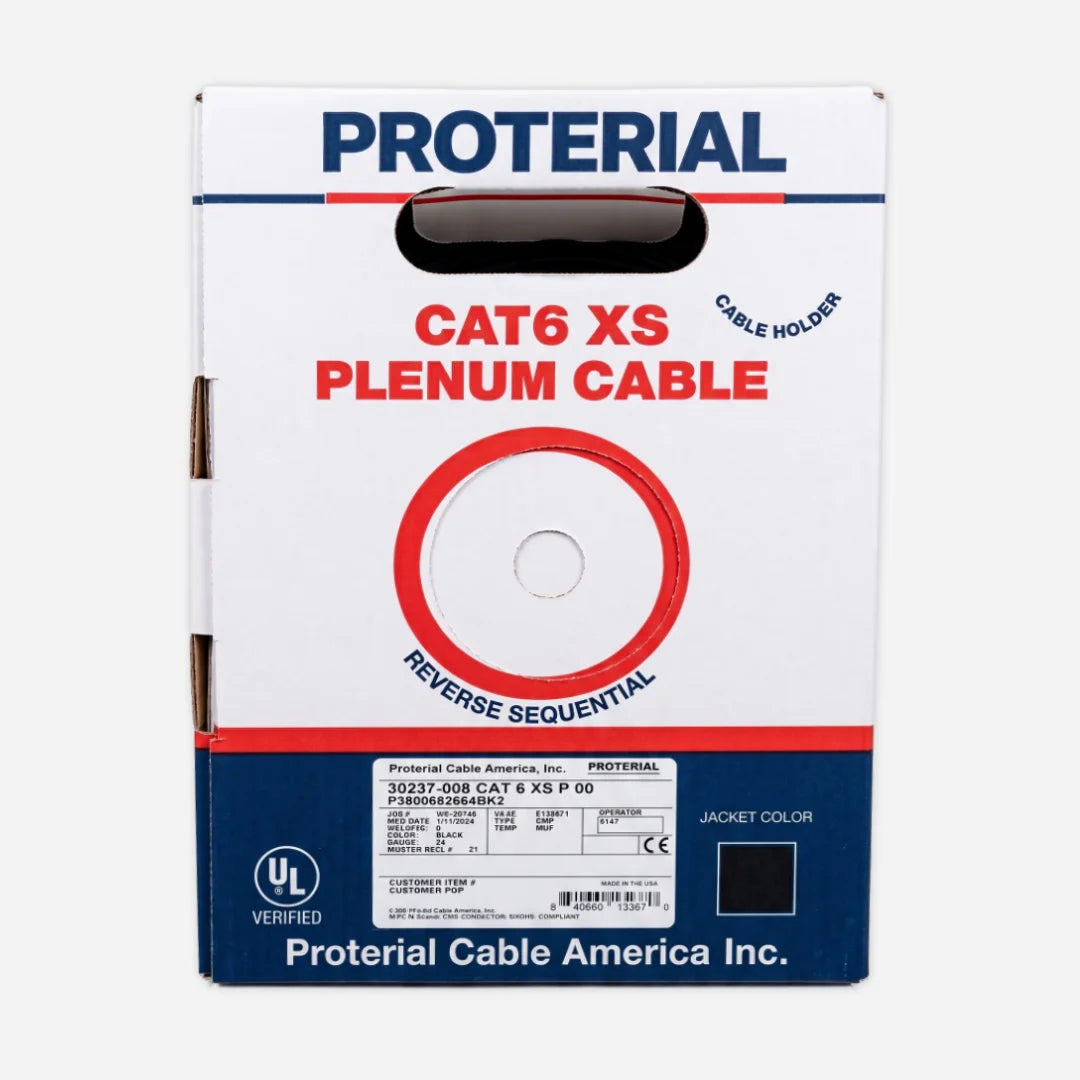

- Standard Reelex package - 1,000 ft (305 m)
Applications
- 5 Gigabit Ethernet (IEEE 802.3bz)
- 2.5 Gigabit Ethernet (IEEE 802.3bz)
- Gigabit Ethernet (IEEE 802.3ab)
- 100 Mbps Ethernet (IEEE 802.3u)
- 1000 Mbps ATM / 622 Mbps ATM
- PoE up to 100W (IEEE 802.3bt Type 4)
Electrical Characteristics
| Input Impedance | 100 ± 15Ω (1.0 to 100 MHz), 100 ± 20Ω (101 to 250 MHz) |
| Max Conductor Resistance | 9.38 Ω/100m @ 20°C |
| Max Resistance Unbalance | 5% |
| Max Capacitance Unbalance | 330 pF/100m |
| Max Delay Skew | 45 ns/100m |
| Nominal Velocity of Propagation | 70% (Plenum) |
| Voltage Rating | 300 Volts |
Physical Specifications
| Number of Pairs | 4 |
| Conductor | 24 AWG Solid Bare Copper |
| Cable O.D. | 0.20 in (5.08 mm) |
| Cable Weight | 25.24 lbs/1000ft (11.45 kg/305m) |
| Jacket Type | Plenum CMP (NFPA 262), CSA Type FT6 |
| Package Length | 1,000 ft (305 m) Reelex |
Temperature Range
| Storage | -40°C to +60°C |
| Installation | 0°C to +60°C |
| Operation (Plenum) | -20°C to +90°C |
Additional Info & Specs
| Part Number | 30237-008 |
| Category | Cat 6 XS UTP Plenum |
| Conductor | 24 AWG Solid Bare Copper |
| Number of Pairs | 4 |
| Cable O.D. | 0.20 in (5.08 mm) |
| Cable Weight | 25.24 lbs/1000ft (11.45 kg/305m) |
| Jacket Rating | Plenum CMP (NFPA 262), CSA Type FT6 |
| Standards | UL Verified ANSI/TIA-568.2-D, ISO/IEC 11801 Class EA |
| Frequency Range | Tested 1 to 555 MHz |
| Input Impedance | 100 ± 15Ω (1-100 MHz), 100 ± 20Ω (101-250 MHz) |
| Max Conductor Resistance | 9.38 Ω/100m @ 20°C |
| Max Delay Skew | 45 ns/100m |
| Nominal Velocity of Propagation | 70% (Plenum) |
| Voltage Rating | 300 Volts |
| Package Length | 1,000 ft (305 m) Reelex |
| Storage Temperature | -40°C to +60°C |
| Installation Temperature | 0°C to +60°C |
| Operation Temperature (Plenum) | -20°C to +90°C |
| Compliance | RoHS 3 Compliant |
