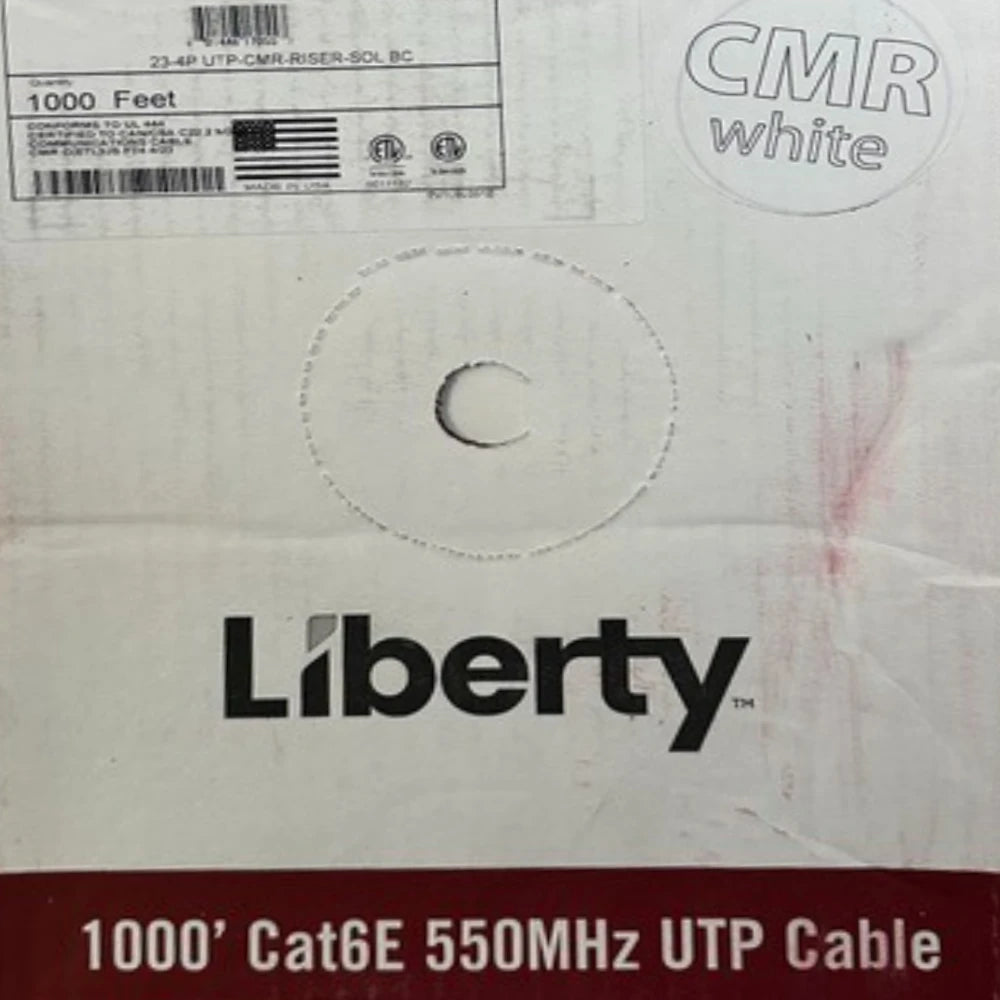

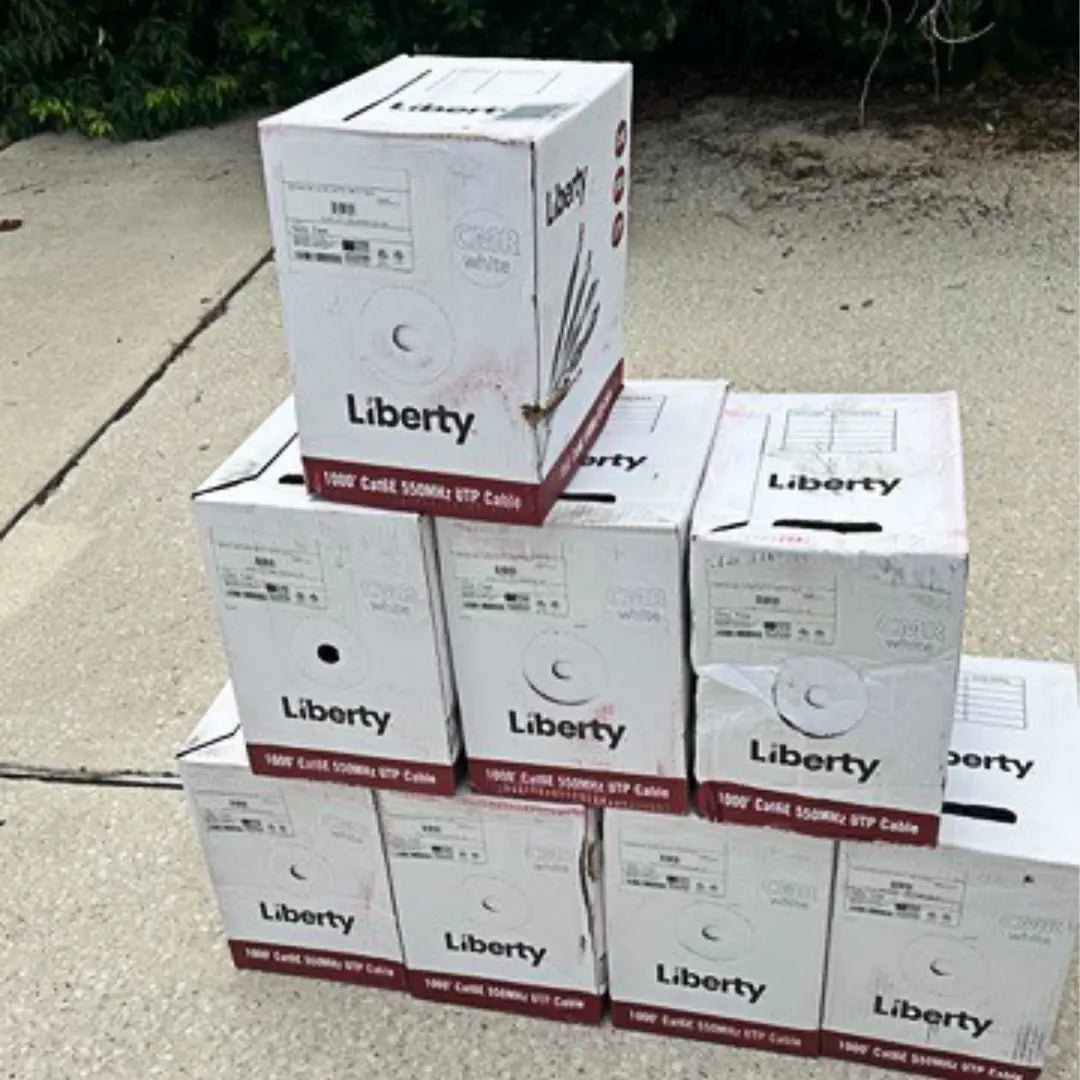

Liberty Cat6E Riser Solid Copper UTP Cable
The Liberty L6ERWH1BX is a high-performance Cat6E riser cable engineered for structured cabling installations that demand reliable, high-bandwidth performance. Built with solid annealed bare copper conductors and a CMR-rated riser jacket, this 1000ft bulk cable is ideal for vertical riser runs, backbone cabling, and permanent link installations in commercial and enterprise environments.
Construction & Design
This cable features 4 twisted pairs of 23 AWG solid copper conductors, each insulated with high-density polyethylene (HDPE) for consistent signal integrity. The UV-resistant flame-rated PVC (FRPVC) jacket provides durable protection while meeting strict riser fire-safety requirements. A built-in rip cord simplifies jacket removal for fast, clean termination.
Performance & Compliance

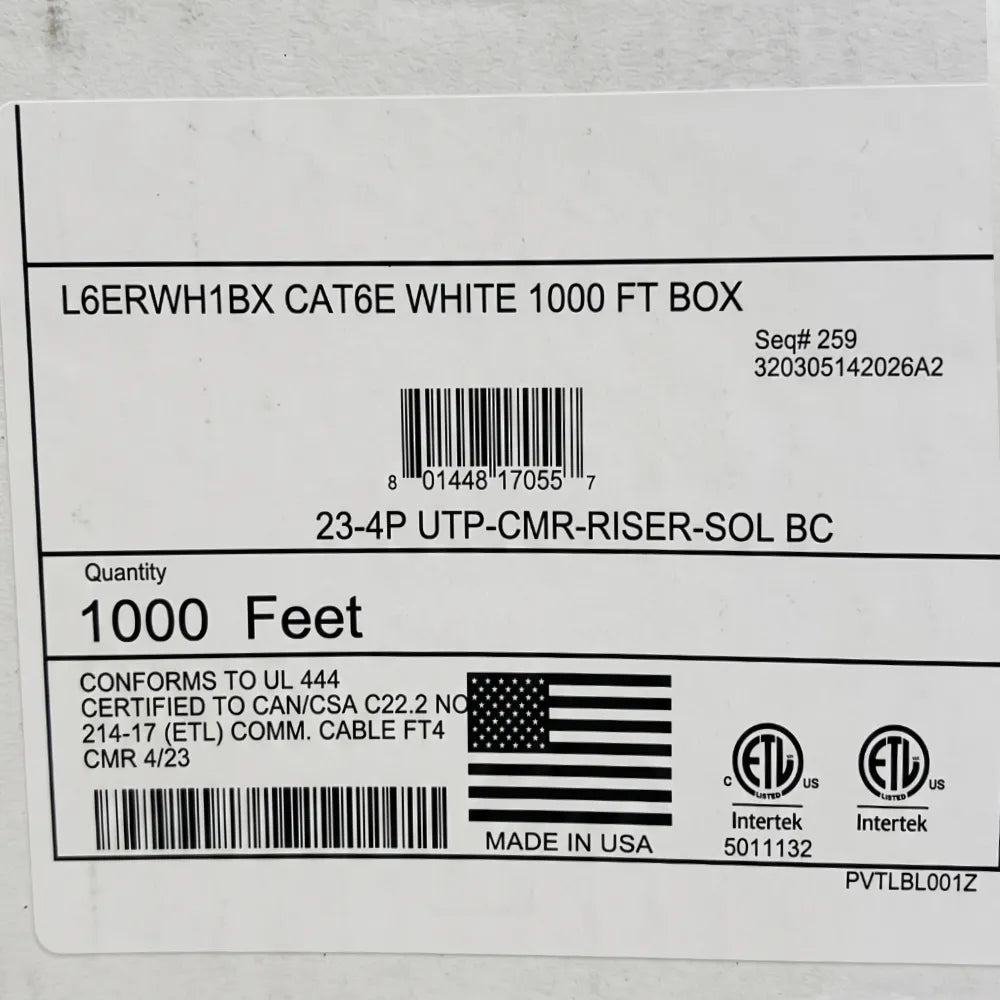

Certified to ANSI/TIA-568 Category 6e and ISO/IEC 11801 Class E standards, this cable delivers dependable performance for Gigabit Ethernet and beyond. It is UL 444 Type CMR and CSA C22.2 No. 214 Type CMR listed, compliant with National Electric Code Article 800, and meets EU RoHS III and REACH requirements for environmental safety.
Specifications
| Conductor | Solid Annealed Bare Copper, 23 AWG |
| Pairs | 4 Twisted Pairs (8 Conductors) |
| Insulation | High-Density Polyethylene (HDPE) |
| Jacket | UV Resistant Flame Rated PVC (FRPVC) |
| Jacket Diameter | 0.213 in (5.40 mm) |
| Characteristic Impedance | 100 ± 15 Ω |
| DC Resistance | ≤ 9.38 Ω / 100 m |
| Capacitance | 5.6 nF / 100 m |
| Voltage Rating | 300V |
| Operating Temperature | -20°C to 75°C |
| Length | 1000 ft |
Additional Info & Specs
| Conductor | Solid Annealed Bare Copper, 23 AWG |
| Pairs | 4 Twisted Pairs (8 Conductors) |
| Conductor Diameter | 0.022 in (0.55 mm) |
| Insulation | High-Density Polyethylene (HDPE) |
| Jacket | UV Resistant Flame Rated PVC (FRPVC) |
| Jacket Diameter | 0.213 in (5.40 mm) |
| Rip Cord | Yes |
| Characteristic Impedance | 100 ± 15 Ω |
| DC Resistance | ≤ 9.38 Ω / 100 m |
| DC Resistance Unbalance | 5% |
| Capacitance | 5.6 nF / 100 m |
| Voltage Rating | 300V |
| Operating Temperature | -20°C to 75°C |
| Max Pulling Tension | 25 lb (11 kg) |
| Length | 1000 ft |
| Standards | ANSI/TIA-568 Cat6e, ISO/IEC 11801 Class E |
| Certifications | UL 444 Type CMR, CSA C22.2 No. 214, RoHS III, REACH |
