Hubbell NEXTSPEED CAT6A Plenum (CMP) UTP Cable
The Hubbell NEXTSPEED Category 6A Plenum (CMP) cable delivers reliable 10GBASE-T performance over a full 100-meter channel while meeting the strictest fire-safety requirements for plenum air-handling spaces. Built with 23 AWG solid bare copper conductors and a flame-retardant, low-smoke PVC jacket, this 1000ft reel is engineered for network installers, engineers, and procurement teams that need certified, code-compliant structured cabling.
Performance & Compliance
This cable is component compliant with ANSI/TIA-568-C.2 and ISO/IEC 11801, and supports Ethernet applications from 10BASE-T through 10GBASE-T. It is fully PoE-ready, certified for IEEE 802.3af (PoE), IEEE 802.3at (PoE+), and IEEE 802.3bt (4PPoE Type 3 and 4), with a temperature rise of only 8.2°C in a 100-cable bundle and 82.8% power efficiency at maximum temperature. Alien crosstalk performance provides +7dB headroom above standards.
Construction
Each reel features 23 AWG solid bare copper conductors with FEP insulation, a non-conductive isolation wrap, and a crossweb filler for consistent geometry. The reduced-diameter jacket (0.260 in O.D.) eases installation in tight pathways. Pair configuration: Pair 1 White/Blue, Pair 2 White/Orange, Pair 3 White/Green, Pair 4 White/Brown.
Listings & Certifications

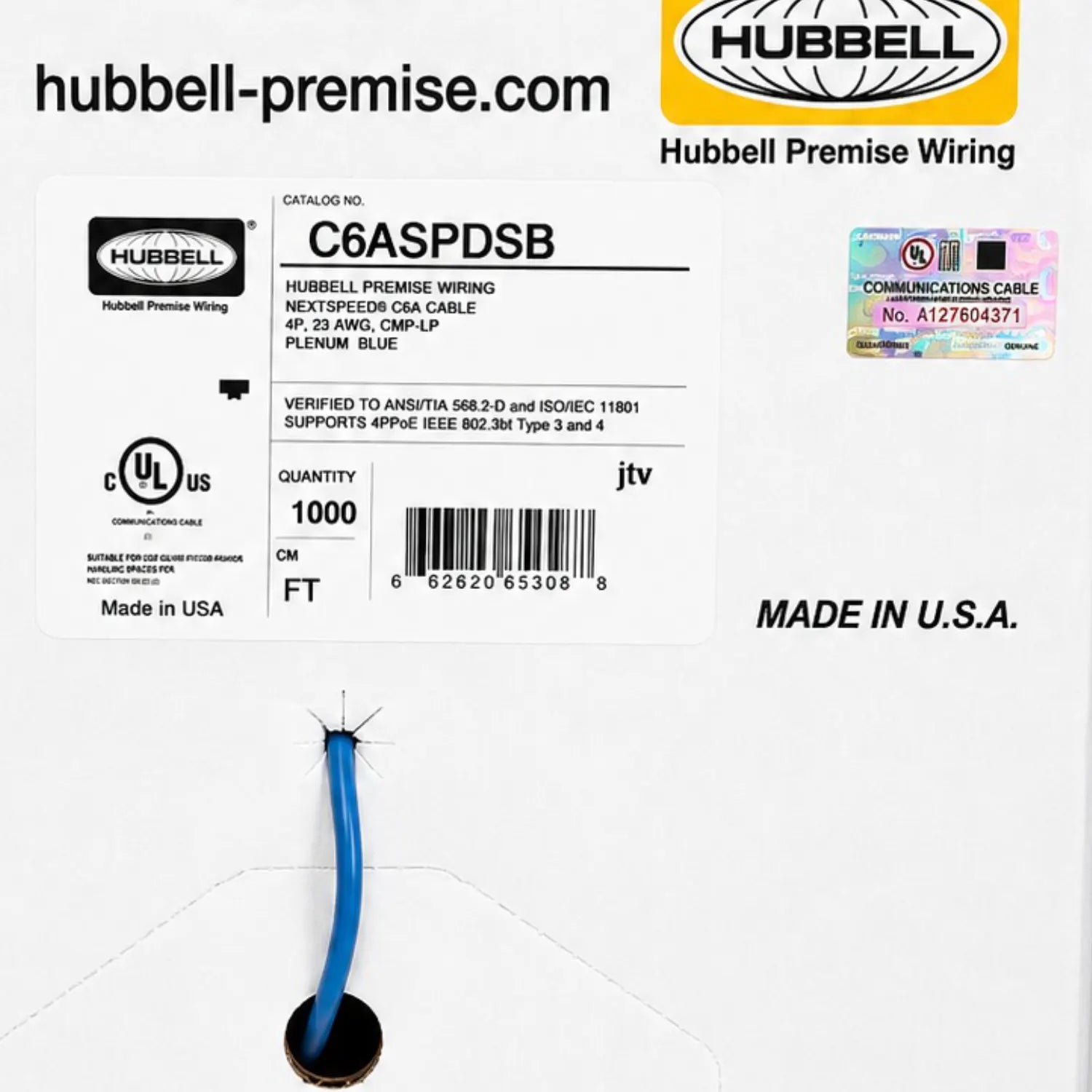

UL/c(UL) Listed, LP Listed for high heat/high power PoE applications, NEC Article 800 compliant, HDBaseT Certified, and RoHS/RoHS 2 compliant. Third-party verified for quality assurance.
Available Colors

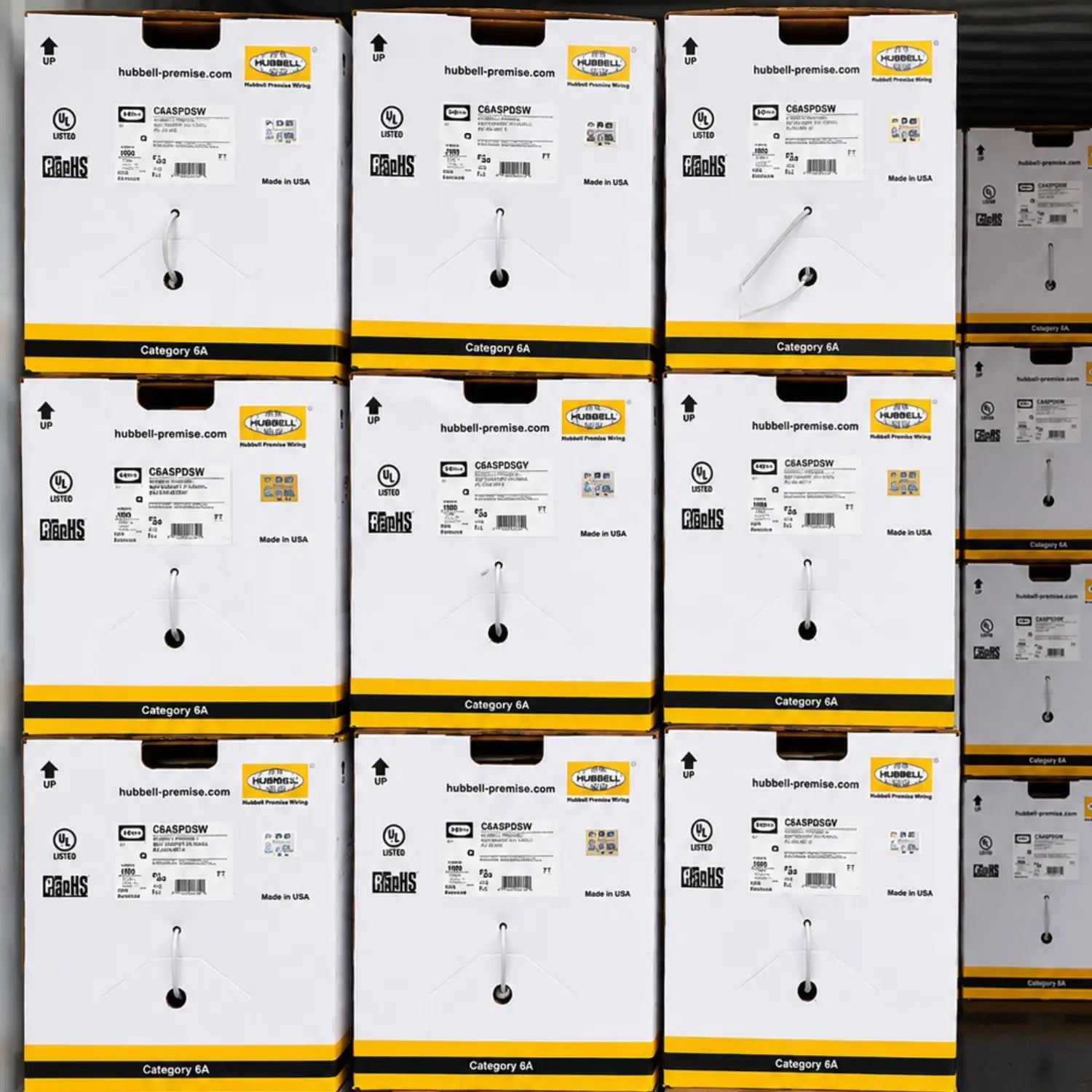

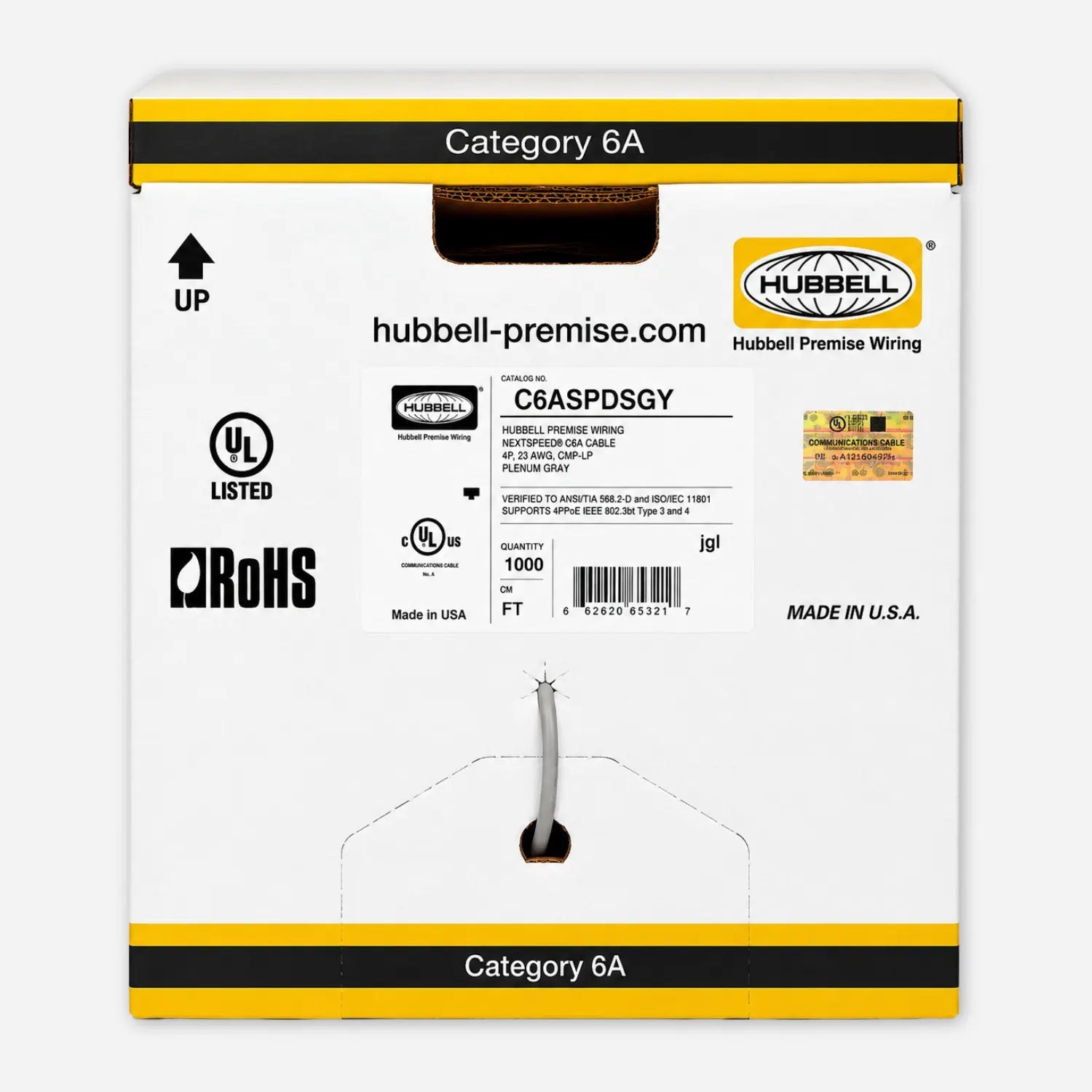

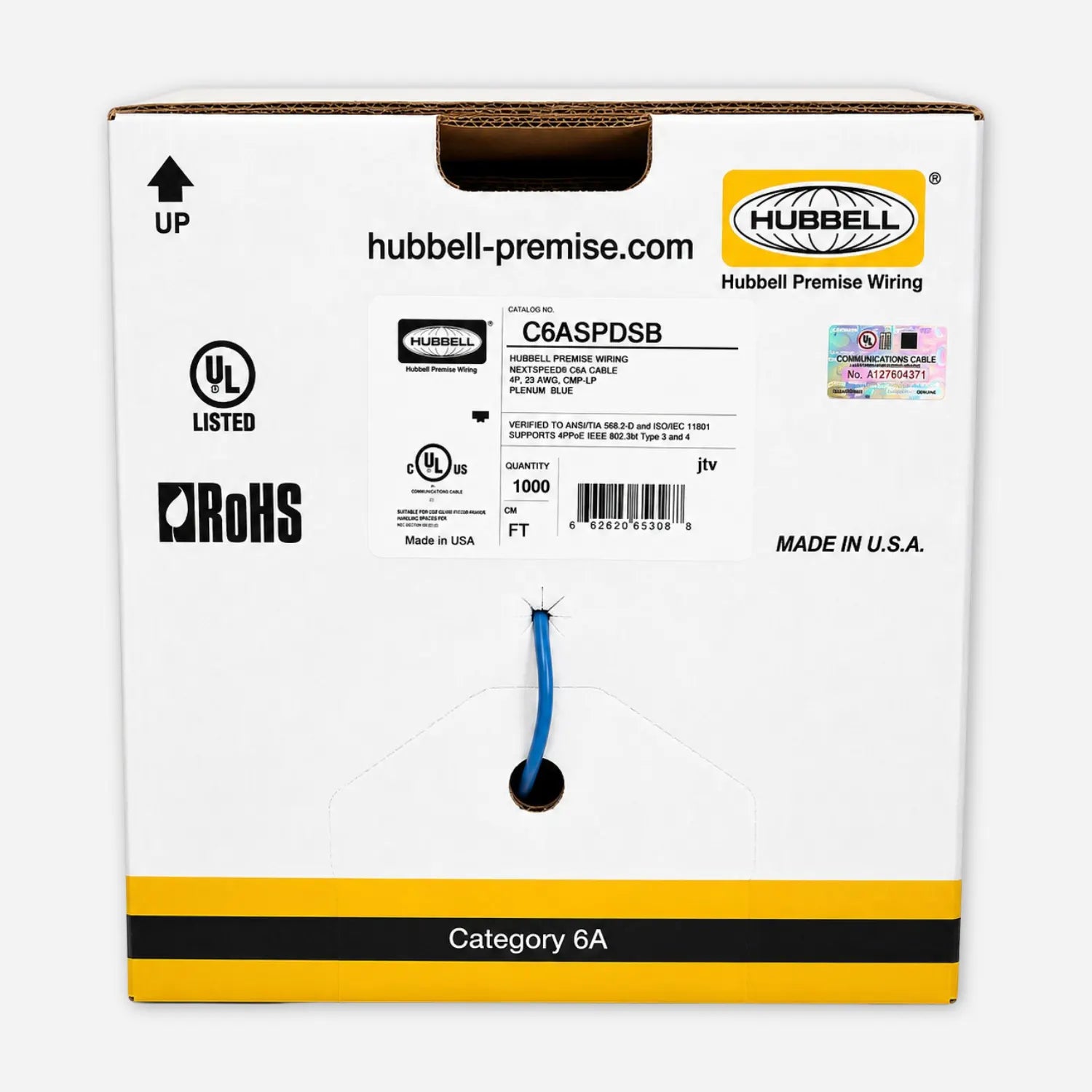

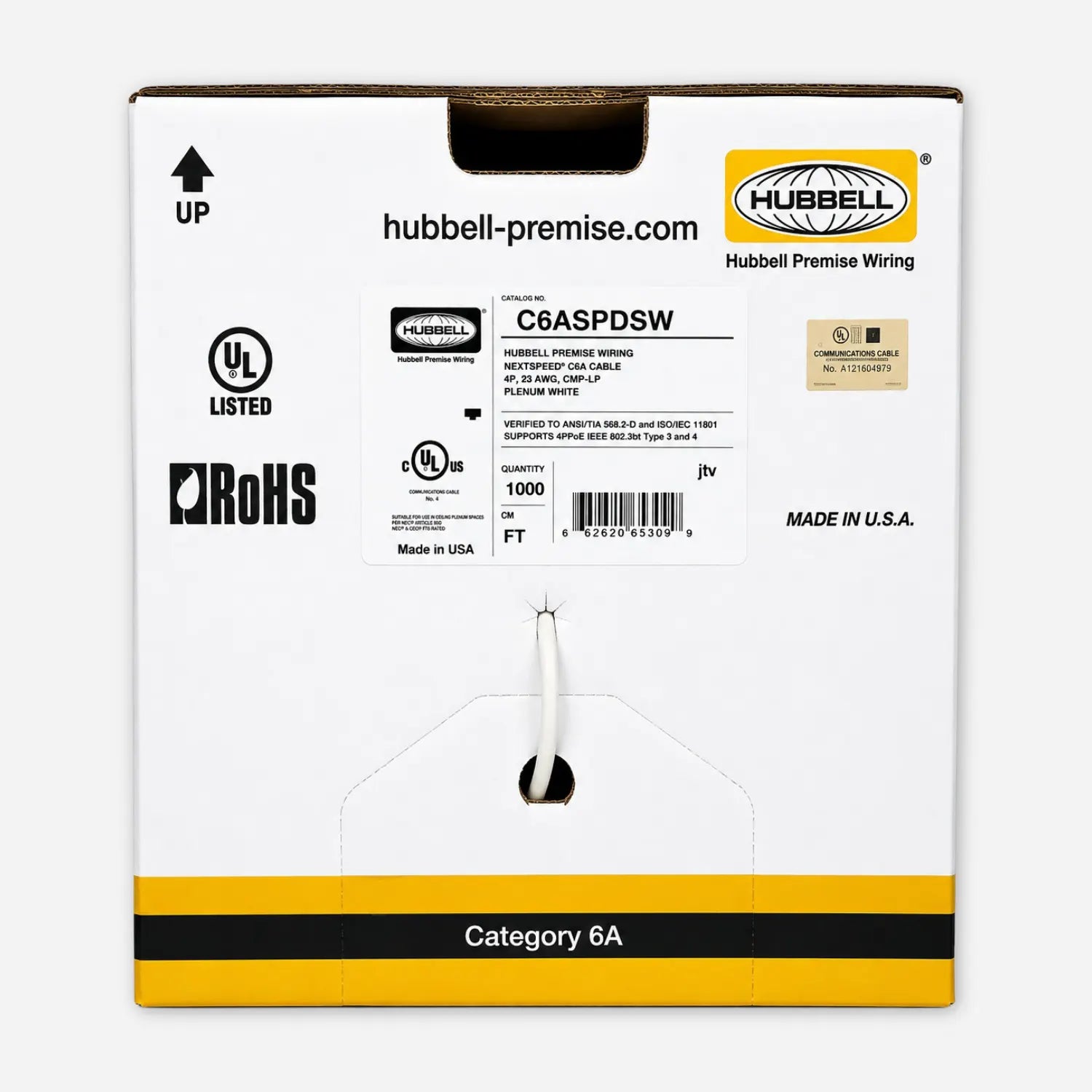

This product is available in Blue (C6ASPDSB), White (C6ASPDSW), and Gray (C6ASPDSGY).
Additional Info & Specs
| Conductor | 23 AWG solid bare copper |
| Jacket | FR low-smoke PVC (CMP) |
| Insulation | FEP |
| Nominal Cable O.D. | 0.265 in (reduced-diameter jacket 0.260 in) |
| NVP | 71 |
| Temperature Rise (100-cable bundle) | 8.2°C |
| Power Efficiency (100m at max temp) | 82.8% at 53.2°C |
| Alien Crosstalk | +7dB headroom above standards |
| Standards | ANSI/TIA-568-C.2, ISO/IEC 11801 |
| Ethernet Support | 10BASE-T through 10GBASE-T |
| PoE Support | IEEE 802.3af, 802.3at, 802.3bt (4PPoE Type 3 & 4) |
| Listings | UL/c(UL) Listed, LP Listed, NEC Article 800, HDBaseT Certified, RoHS/RoHS 2 |
| Length | 1000 ft |
