Description

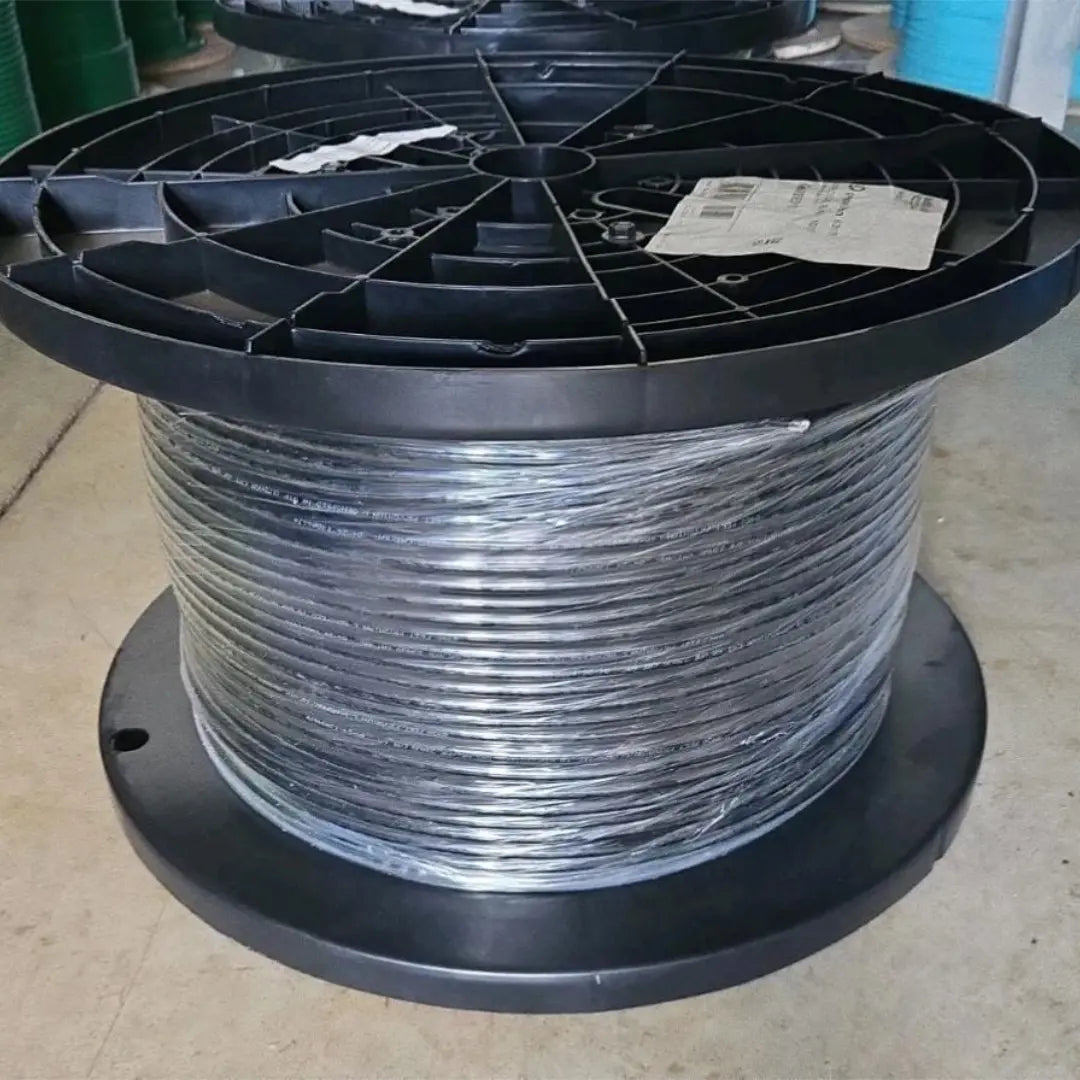

The Prysmian GenSPEED 9136100 Category 6A Outside Plant (OSP) cable is engineered for mission-critical outdoor and campus network backbones demanding high-throughput 10GBASE-T 10 Gigabit performance. Constructed with 23 AWG solid bare annealed copper conductors, an innovative cross-web separator, and an advanced polyester encapsulated isolation core wrap, this cable delivers exceptional alien crosstalk suppression (PSANEXT) and minimal insertion loss up to 500 MHz. The rugged UV- and abrasion-resistant black polyethylene (PE) jacket protects conductors from harsh outdoor weathering, sun exposure, and physical wear across extreme temperatures from -45°C to +80°C. Built with a clean, gel-free dry core design for fast stripping and termination, this cable is fully rated for duct and conduit installations, high-power IEEE 802.3bt Type 4 PoE++ (up to 100W), and broadband digital video. Manufactured in the USA, this 1,000-foot spool is verified to ANSI/TIA 568.2-E and UL 444 standards.
Electrical Characteristics
| Frequency (MHz) | Insertion Loss (Max dB/100m) | NEXT (Min dB) | Return Loss (Min dB) | PSANEXT (Min dB) | PSAACRF (Min dB) |
|---|---|---|---|---|---|
| 1 | 2.1 | 74.3 | 20.0 | 67.0 | 67.0 |
| 4 | 3.8 | 65.3 | 23.0 | 67.0 | 66.2 |
| 10 | 5.9 | 59.3 | 25.0 | 67.0 | 58.2 |
| 16 | 7.5 | 56.2 | 25.0 | 67.0 | 54.1 |
| 20 | 8.4 | 54.8 | 25.0 | 67.0 | 52.2 |
| 31.25 | 10.5 | 51.9 | 23.6 | 67.0 | 48.3 |
| 62.5 | 15.0 | 47.4 | 21.5 | 65.6 | 42.3 |
| 100 | 19.1 | 44.3 | 20.1 | 62.5 | 38.2 |
| 200 | 27.6 | 39.8 | 18.0 | 58.0 | 32.2 |
| 250 | 31.1 | 38.3 | 17.3 | 56.5 | 30.2 |
| 300 | 34.3 | 37.1 | 16.8 | 55.3 | 28.7 |
| 350 | 37.1 | 36.1 | 16.3 | 54.3 | 27.3 |
| 400 | 40.1 | 35.3 | 15.9 | 53.5 | 26.2 |
| 500 | 45.3 | 33.8 | 15.2 | 52.0 | 24.2 |
| Electrical Parameter | Specification |
|---|---|
| DC Resistance (Max @ 20°C) | 9.38 Ohms/100 m (328 ft) |
| DC Resistance Unbalanced (Individual Pair Max) | 4.00% |
| Delay Skew (Max) | 45 ns/100 m |
| Nominal Velocity of Propagation (NVP) | 70% |
| Characteristic Impedance (1 – 500 MHz) | 100 ± 15 Ohms |
| PoE Compatibility | IEEE 802.3af (PoE), IEEE 802.3at (PoE+), IEEE 802.3bt (PoE++ Type 3 & 4 up to 100W) |
Physical Characteristics
| Physical Parameter | Specification |
|---|---|
| Nominal Cable Diameter | 0.290 in (7.37 mm) |
| Nominal Cable Weight | 33 lbs/1,000 ft (14.97 kg/kft) |
| Minimum Bend Radius | 2.3 in (58.4 mm) |
| Maximum Pulling Force | 40 lbs (178 N) |
| Installation Temperature Range | -30°C to +60°C (-22°F to +140°F) |
| Operating Temperature Range | -45°C to +80°C (-49°F to +176°F) |
| Packaging Format | 1,000 ft Spool |
| Jacket Color | Black |
Features and Applications
- 10 Gigabit Outside Plant Performance: Fully standards-compliant for 10GBASE-T, 1000BASE-T, 100BASE-TX, and 10BASE-T transmission across campus and outdoor duct installations.
- Cross-Web Pair Separation: Innovative internal cross-web design maximizes physical separation between twisted pairs, dramatically reducing alien crosstalk and internal noise.
- Polyester Encapsulated Isolation Core: Enhanced isolation core wrap reinforces structural geometry and delivers robust electrical isolation.
- Dry Core Construction: Gel-free dry core design eliminates messy flooding compounds, ensuring rapid, clean cable prep and connector termination.
- Rugged Weatherproof Jacket: Industrial-grade UV- and abrasion-resistant polyethylene jacket safeguards conductors against sunlight, moisture, and temperature extremes (-45°C to +80°C).
- High-Power PoE++ Ready: Engineered to support IEEE 802.3bt Type 4 Power over Ethernet (PoE++) up to 100W for PTZ cameras, wireless access points, and smart building automation.
- TRU-Mark Footage Markers: Jacket features descending footage markings from 1000' to 0' for accurate measurement and reduced inventory waste.
- Made in USA: Designed, engineered, and manufactured in the United States to meet strict TIA, UL, ICEA, and ISO/IEC datacom compliance.
Construction
Conductors: 23 AWG solid bare annealed copper.
Insulation: Thermoplastic.
Color Code: Pair 1: Blue-White/Blue; Pair 2: Orange-White/Orange; Pair 3: Green-White/Green; Pair 4: Brown-White/Brown.
Separator: Cross-Web internal separator.
Core Wrap: Polyester encapsulated isolation core wrap.
Core Design: Dry core construction.
Jacket: UV- and abrasion-resistant Polyethylene (PE), Black.
Nominal Diameter: 0.290 in (7.37 mm).
Packaging: 1,000 ft (305 m) Spool.
Additional Information

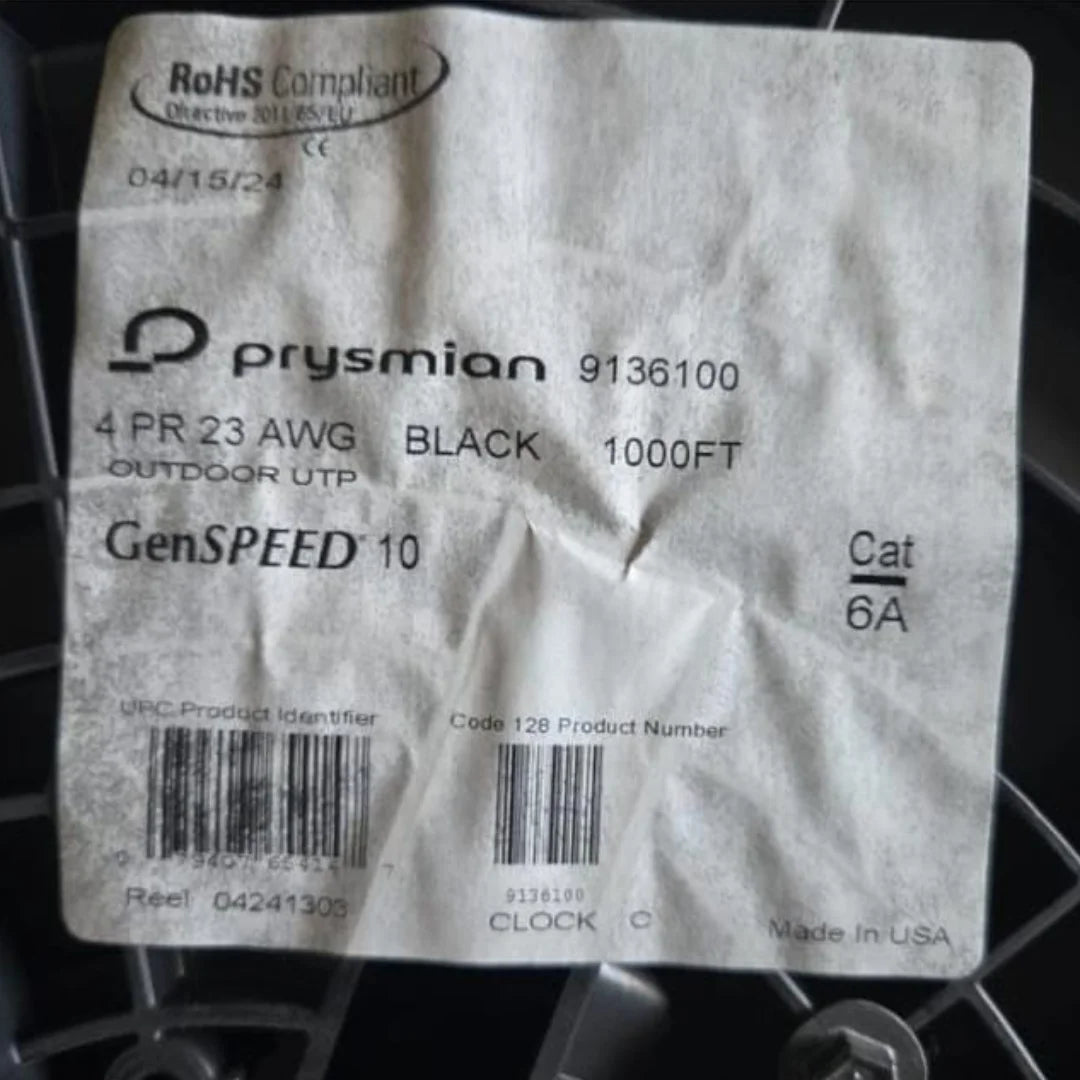

Part Number: 9136100.
Packaging: 1,000 ft Spool.
Print Legend: TRU-Mark print legend contains footage markings from 1000' to 0'.
Applications: IEEE 802.3 10GBASE-T, 1000BASE-T, 100BASE-TX, 10BASE-T, PoE/PoE+/PoE++, ANSI/TIA 854 1000BASE-TX, CDDI, Token Ring, ATM, Digital and Baseband/Broadband Analog Video, Duct and conduit installations.
Standard Compliances: ANSI/TIA 568.2-E, UL 444, RoHS Compliant Directive 2011/65/EU, ANSI/TIA 862 (Building Automation), ICEA S-116-732, ANSI/NEMA WC 66, ISO/IEC 11801 Ed. 2.0 (Class EA).
Country of Origin: Made in USA.
Additional Info & Specs
| General Specifications | |
|---|---|
| Manufacturer / Brand | Prysmian / GenSPEED |
| Part Number | 9136100 |
| Product Category | Category 6A Outside Plant (OSP) |
| Packaging Format | 1,000 ft Spool |
| Jacket Color | Black |
| Print Legend | TRU-Mark Footage Markings (1000' to 0') |
| Country of Origin | USA (Made in USA) |
| Conductor & Construction | |
| Conductor Gauge | 23 AWG |
| Conductor Type | Solid Bare Annealed Copper |
| Insulation Material | Thermoplastic |
| Pair Count / Color Code | 4 Twisted Pairs (Pair 1: Blue-White/Blue, Pair 2: Orange-White/Orange, Pair 3: Green-White/Green, Pair 4: Brown-White/Brown) |
| Pair Separator | Cross-Web Design |
| Core Wrap | Polyester Encapsulated Isolation Core Wrap |
| Core Construction | Dry Core |
| Jacket Material | UV- and Abrasion-Resistant Polyethylene (PE) |
| Nominal Cable Diameter | 0.290 in (7.37 mm) |
| Electrical & Transmission | |
| Frequency Bandwidth | 1 – 500 MHz |
| Characteristic Impedance | 100 ± 15 Ohms (1 – 500 MHz) |
| DC Resistance (Max) | 9.38 Ohms/100 m (328 ft) @ 20°C |
| DC Resistance Unbalance (Max) | 4.00% (Individual Pair) |
| Delay Skew (Max) | 45 ns/100 m |
| Nominal Velocity of Propagation (NVP) | 70% |
| Power over Ethernet (PoE) | IEEE 802.3af (PoE), IEEE 802.3at (PoE+), IEEE 802.3bt (PoE++ Type 3 & 4 up to 100W) |
| Mechanical & Environmental | |
| Nominal Cable Weight | 33 lbs/1,000 ft |
| Shipping Weight | 36 lbs |
| Minimum Bend Radius | 2.3 in (58.4 mm) |
| Maximum Pulling Force | 40 lbs (178 N) |
| Installation Temperature Range | -30°C to +60°C (-22°F to +140°F) |
| Operating Temperature Range | -45°C to +80°C (-49°F to +176°F) |
| Installation Environment | Outdoor / Outside Plant (OSP), Duct & Conduit |
| Standards & Regulatory | |
| Telecommunications Standards | ANSI/TIA 568.2-E, ANSI/TIA 854 (1000 BASE-TX), ANSI/TIA 862 (Building Automation), ISO/IEC 11801 Ed. 2.0 (Class EA) |
| Safety & Cable Standards | UL 444, ICEA S-116-732, ANSI/NEMA WC 66 |
| Environmental Compliance | RoHS Compliant Directive 2011/65/EU |
