Description
The GenSPEED 7133800 Category 6 Riser (CMR) cable is an enterprise-grade 23 AWG solid bare annealed copper Ethernet cable engineered for high-performance voice, data, video, and security networking. Built with a specialized internal cross-web pair separator and flame-retardant PVC jacket, this cable delivers standards-compliant transmission and extended frequency headroom up to 500 MHz. Featuring TRU-Mark sequential footage markings from 1000 feet to 0 feet, installation runs are fast, accurate, and minimize jobsite scrap. Third-party verified and manufactured in the USA, this non-plenum U/UTP Cat6 riser cable provides exceptional crosstalk isolation, minimal signal attenuation, and reliable support for high-power Power over Ethernet (PoE++) installations.
Electrical Characteristics
| Parameter | Value |
|---|---|
| DC Resistance (Max) | 9.38 Ohms/100m (328 ft) |
| DC Resistance (Nominal) | 7.50 Ohms/100m |
| DC Resistance Unbalance (Max) | 4.00% individual pair (< 1% nominal) |
| Nominal Velocity of Propagation (NVP) | 68% speed of light |
| Characteristic Impedance | 100 ± 15 Ohms (1–500 MHz) |
| Frequency Headroom | Tested and characterized up to 500 MHz |
| Insertion Loss (250 MHz) | 32.8 dB/100m max |
| NEXT / PSNEXT (250 MHz) | 38.3 dB / 36.3 dB min |
| ACRF / PSACRF (250 MHz) | 19.8 dB / 16.8 dB min |
| Return Loss (250 MHz) | 17.3 dB min |
Physical Characteristics
| Parameter | Value |
|---|---|
| Conductor Gauge | 23 AWG Solid Bare Annealed Copper |
| Conductor Structure | 4 Unshielded Twisted Pairs (U/UTP) |
| Insulation Material | Polyolefin |
| Jacket Material | Flame-Retardant Polyvinyl Chloride (PVC) |
| Jacket Color | Blue (Part # 7133800) |
| Nominal Cable Diameter | 0.220 in (5.6 mm) |
| Nominal Cable Weight | 24 lbs/1000 ft |
| Minimum Bend Radius | 1.0 in (25.4 mm) |
| Maximum Pulling Force | 32 lbs (142 N) |
| Installation Temperature | 0°C to +60°C (+32°F to +140°F) |
| Operating Temperature | -20°C to +75°C (-4°F to +167°F) |
Features and Applications
- High-Speed Networking: Supports IEEE 802.3 1000BASE-T (Gigabit Ethernet), 100BASE-TX, 10BASE-T, and ANSI/TIA 854 1000BASE-TX.
- High-Power PoE Delivery: Fully compliant with IEEE 802.3af (PoE), IEEE 802.3at (PoE+), and IEEE 802.3bt Type 3 and Type 4 (PoE++) standards.
- Internal Pair Separator: Unique cross-web divider preserves pair geometry and suppresses alien and internal near-end crosstalk.
- TRU-Mark Sequential Footage: Jacket print legend features descending footage markings from 1000' to 0' for precise inventory tracking.
- Versatile Deployments: Ideal for vertical riser shafts, telecom closets, enterprise backbone networks, commercial security cameras, and building automation.
- Multimedia Support: Compatible with broadband and baseband analog video, digital video, CDDI, ATM, and Token Ring architectures.
- Third-Party Verified: Performance independently verified for ANSI/TIA-568.2-D compliance and guaranteed signal integrity.
- Domestic Manufacturing: Engineered and manufactured in the United States.
Construction
Conductors: 23 AWG solid bare annealed copper.
Insulation: High-density polyolefin.
Pair Assembly: 4 unshielded twisted pairs (Pair 1: Blue-White/Blue; Pair 2: Orange-White/Orange; Pair 3: Green-White/Green; Pair 4: Brown-White/Brown).
Internal Separator: Engineered central cross-filler / divider.
Rip Cord: Applied longitudinally underneath the outer jacket for easy stripping.
Jacket: Flame-retardant blue PVC compound.
Jacket Print String: GenSPEED 6 CATEGORY 6 23 AWG 4PR UTP CMR (UL) C(UL) VERIFIED (UL) ANSI/TIA-568.2-D TRU-MARK 1000 FT TO 0 FT MADE IN USA
Additional Information

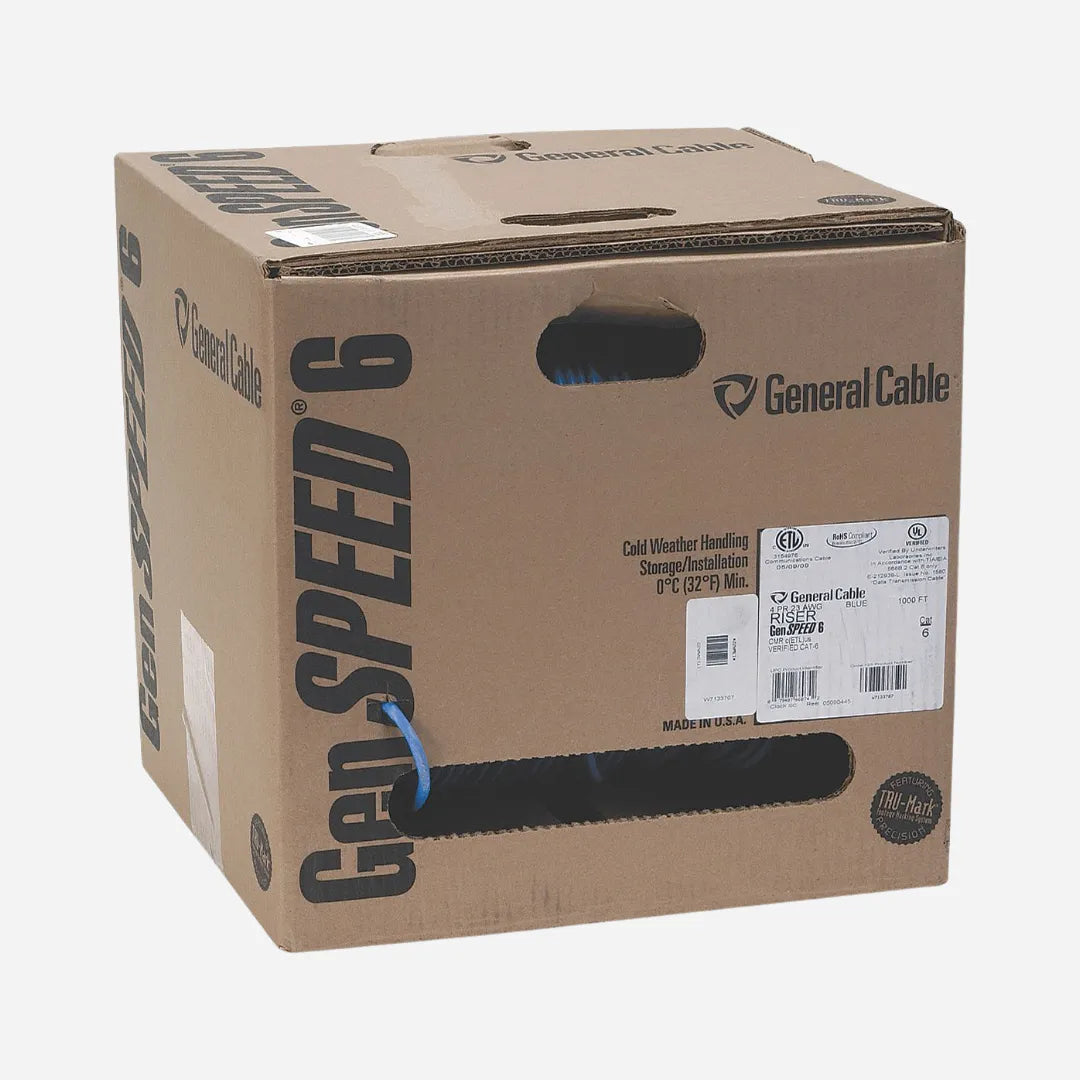

Package Format: 1000 ft (305 m) Pull-Pac II tangle-free dispensing box.
Fire & Safety Rating: NEC/CEC Type CMR (UL 1666) for non-plenum riser spaces.
Industry Certifications: UL 444, ANSI/TIA 568.2-D, ANSI/TIA 862 (Building Automation), ICEA S-116-732, ISO/IEC 11801 Ed. 2.0 Class E, RoHS Directive 2011/65/EU compliant.
Additional Info & Specs
| General Specifications | |
|---|---|
| Brand / Family | GenSPEED 6 Category 6 Cable |
| Part Number | 7133800 |
| Category Rating | Category 6 (Cat6) |
| Flame Rating | NEC/CEC Type CMR (UL 1666) Non-Plenum |
| Packaging Format | 1000 ft (305 m) Pull-Pac II Box |
| Jacket Color | Blue |
