Description

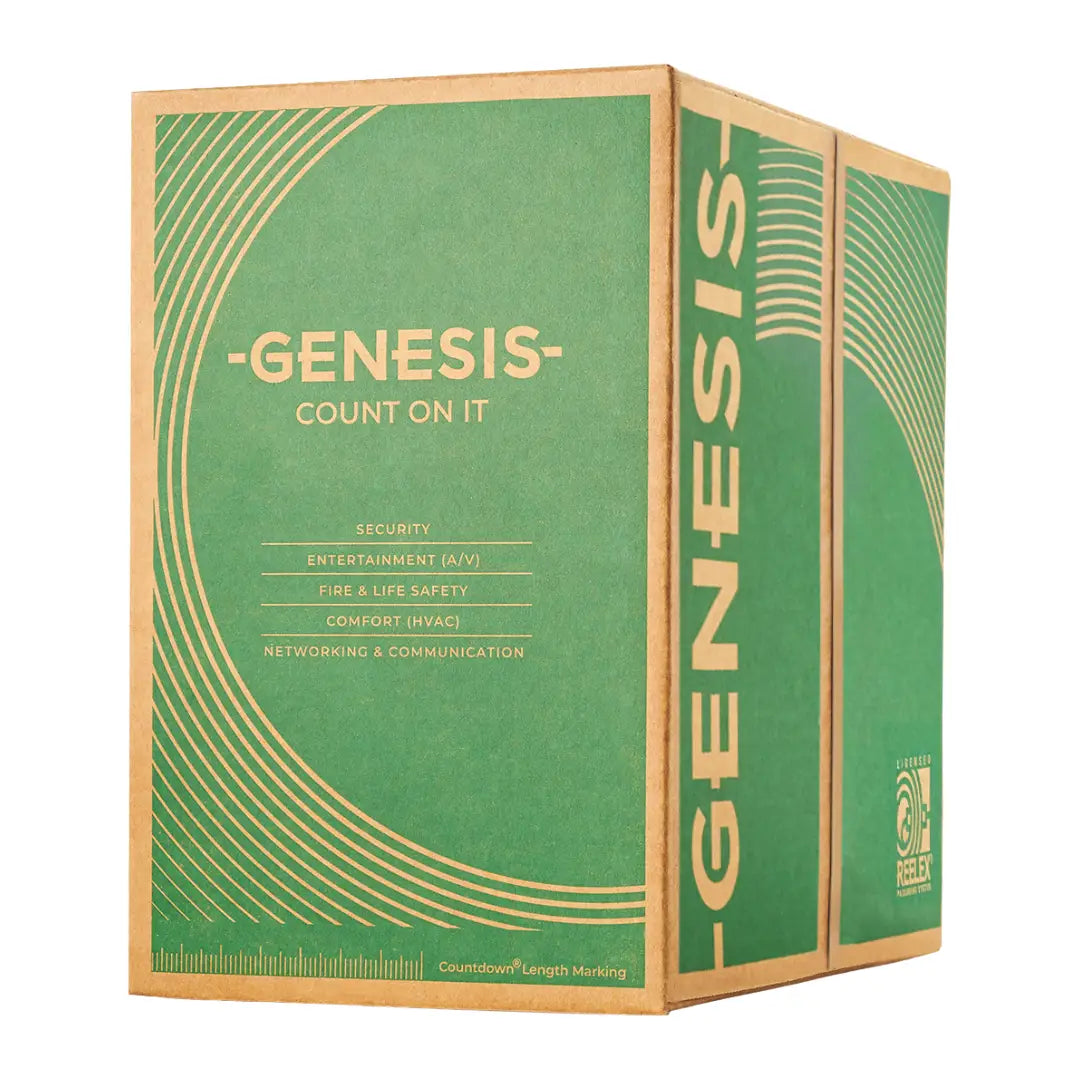

Genesis Plenum Rated Shielded Multiconductor Cable is engineered for low-energy signal and control circuits where electrical noise cannot be tolerated. The overall foil shield over all conductors suppresses electromagnetic interference, protecting sensitive signals in commercial and industrial environments. This 22 AWG 8-conductor stranded cable is supplied on a 1000 ft pull-out box with Countdown Length Markings for accurate tracking of cable used and remaining on the run.
Key Specifications
| Cable Type | Multiconductor, Plenum Rated, Shielded |
| AWG | 22 AWG |
| Number of Conductors | 8 |
| Stranding | 7 strand (stranded) |
| Shielding | Foil shield over all conductors |
| Nominal O.D. | 0.177 in. |
| DC Resistance | 16.9 Ohms/1000 ft. at 20 C |
| Capacitance | 26.0 pF/ft. |
| Nominal Weight | 29.8 lbs./1000 ft. |
| Operating Voltage | 300V (max) |
| Operating Temperature | -20 C to 75 C |
| Outer Jacket Color | Natural |
| Length | 1000 ft. Pull-Out Box |
| Product Number | 32071112 |

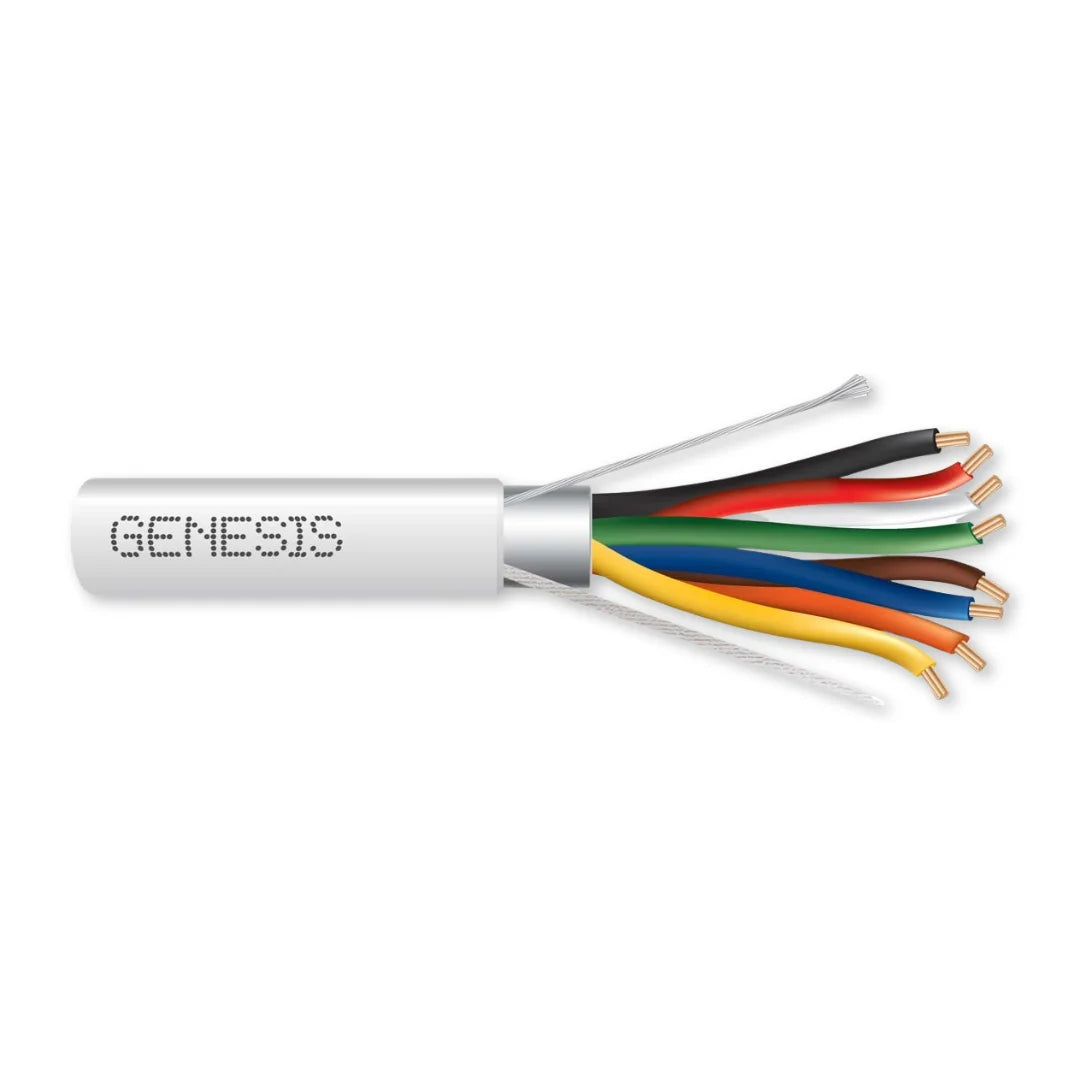

Construction
- Conductor: Bare copper conductors for excellent conductivity and low voltage drop
- Insulation: Low-smoke PVC
- Shield: Foil shield over all conductors
- Jacket: Plenum PVC with Countdown Length Markings
- Rip Cord: Durable rip cord for efficient jacket stripping and removal
Conductor Colors
White, Yellow, Orange, Red, Green, Blue, Brown, Black
Standards & Compliance
- NFPA 262 - Plenum Rated
- CSA C22.2 No. 2556 - FT6 Rated
- UL 444 - Communication Cables, Type CMP (22 AWG - 16 AWG)
- UL 1424 - Cables for Power-Limited Fire-Alarm Circuits, Type FPLP
- UL 13 - Power-Limited Circuit Cables, Type CL3P
- REACH/RoHS Compliant
- cETLus Listed
Applications
- In fabricated ducts as described in NEC 300.22(B)
- In other spaces used for environmental air as described in NEC 300.22(C)
- In risers
- Within buildings in other than air-handling spaces and risers
Additional Info & Specs
| Manufacturer | Genesis® Cable by Southwire |
|---|---|
| Part Number (MPN) | 32071112 |
| Product Type | Multiconductor Shielded Plenum Cable |
| Condition | New |
| Conductor Wire Gauge | 22 AWG |
| Number of Conductors | 8 Conductors (22/8) |
| Conductor Construction | 7-Strand 100% Pure Electrolytic Bare Copper |
| Shielding Type | Overall Aluminum Foil Shield (OAS, 100% Coverage) |
| Drain Wire | Integrated Tinned Copper Drain Wire |
| Insulation Material | Low-Smoke Plenum PVC |
| Jacket Material | Plenum PVC with Countdown® Sequential Length Markings |
| Outer Jacket Color | Natural (White) |
| Conductor Color Code | 1: Black, 2: Red, 3: White, 4: Green, 5: Brown, 6: Blue, 7: Orange, 8: Yellow |
| Nominal Outer Diameter | 0.177 in. (4.50 mm) |
| DC Resistance | 16.9 Ohms/1000 ft. at 20°C |
| Nominal Capacitance | 26.0 pF/ft. |
| Voltage Rating | 300 Volts Maximum |
| Operating Temperature | -20°C to 75°C |

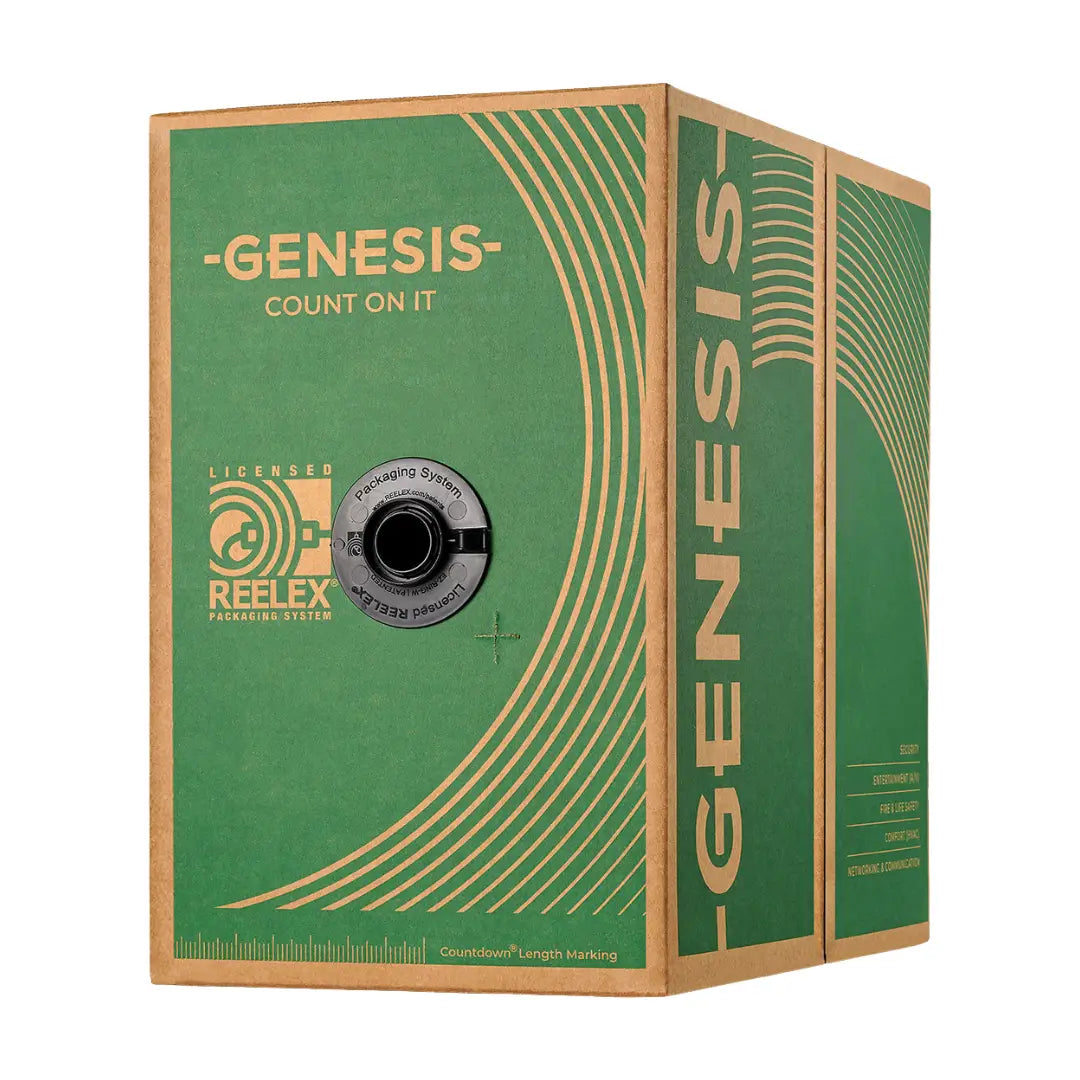

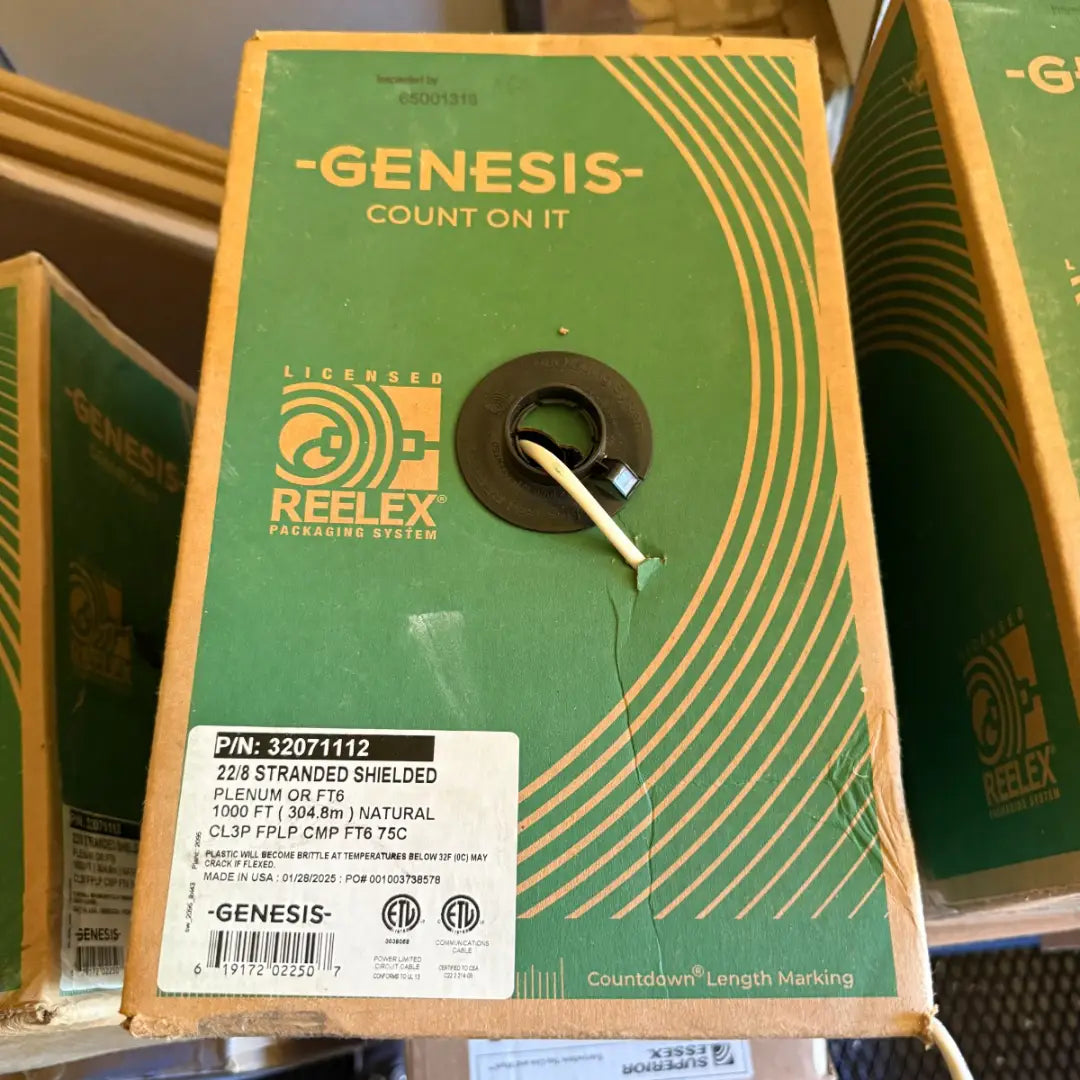

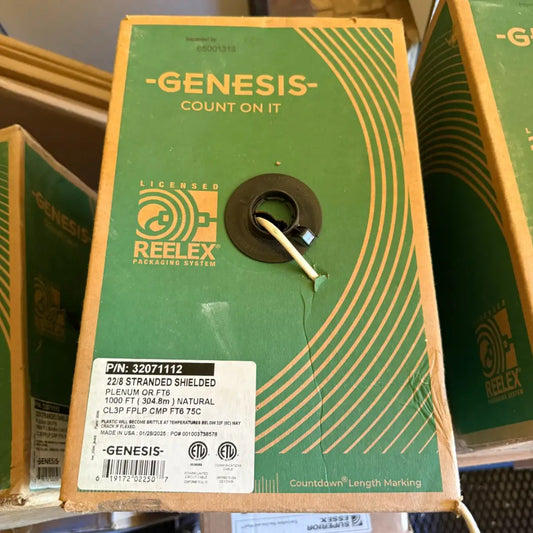

| Packaging Unit | 1000 FT (304.8 m) Reelex Pull-Out Box |
| Safety & Flame Ratings | NFPA 262 (Plenum), CSA C22.2 No. 2556 (FT6), UL 444 (CMP), UL 13 (CL3P), UL 1424 (FPLP) |
| Environmental & Agency Approvals | cETLus Listed, RoHS Compliant, REACH Compliant |
