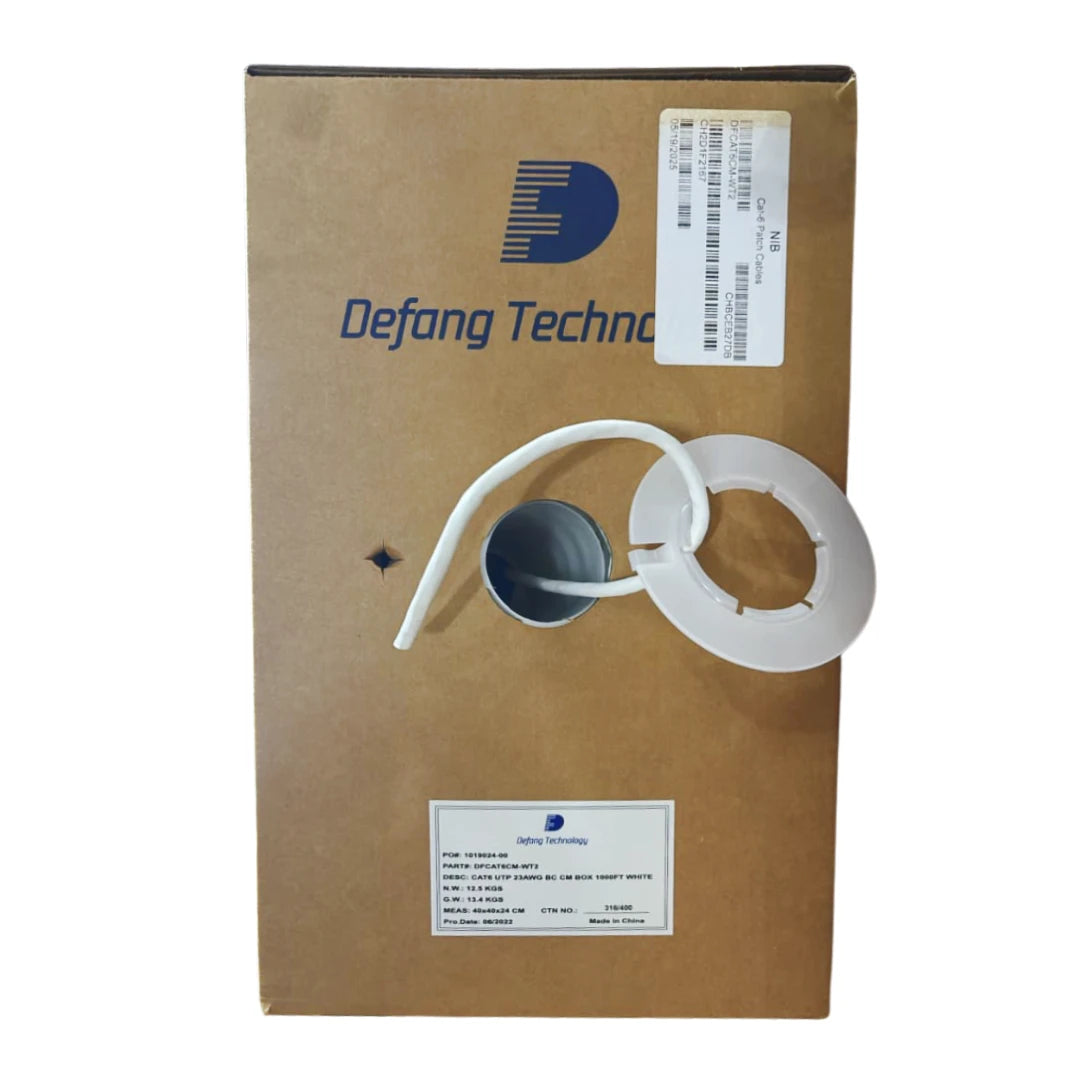

Defang DFCAT6CM-WT2 Cat6 CM UTP 23AWG Solid Copper 1000ft Ethernet Cable
The Defang DFCAT6CM-WT2 is a Category 6 U/UTP horizontal cable engineered for internal installations, patch cable manufacturing, distribution cabinets, and network workstation connections. Built with 100% bare solid copper conductors and a PVC CM-rated jacket, it delivers excellent transmission characteristics exceeding Cat 6 requirements with values at 250 MHz.
Key Features
- Category 6 U/UTP (unshielded) horizontal cable
- 23 AWG solid bare copper conductors (8 conductors, 4 pairs)
- 1000 ft (305 m) reel length
- PVC CM / CMX / CMR jacket options
- 250 MHz transmission performance exceeding Cat 6 standards
- Compliant with ANSI/TIA-568.C-2, ISO/IEC 11801, and UL444
Technical Specifications
| ANSI/TIA Category | 6 |
| Cable Type | U/UTP (unshielded) |
| Conductor | 23 AWG solid bare copper (0.55 mm) |
| Conductors / Pairs | 8 conductors / 4 pairs |
| Cable Length | 305 m / 1000 ft |
| Jacket Diameter | 6.2 mm nominal |
| Jacket Material | PVC (CM, CMX, CMR) |
| Impedance | 100 ± 15 Ω (1-250 MHz) |
| DC Resistance | ≤ 7.38 Ω/100m |
| Operating Voltage | 80 V max |
| Operating Temperature | -20°C to +75°C |
| Standards | ANSI/TIA-568.C-2, ISO/IEC 11801, UL444 |
Additional Info & Specs
| ANSI/TIA Category | 6 |
| Cable Type | U/UTP (unshielded) |
| Conductor | 23 AWG solid bare copper (0.55 mm) |
| Conductors / Pairs | 8 conductors / 4 pairs |
| Cable Length | 305 m / 1000 ft |
| Jacket Diameter | 6.2 mm nominal |
| Jacket Material | PVC (CM, CMX, CMR) |
| Impedance | 100 ± 15 Ω (1-250 MHz) |
| DC Resistance | ≤ 7.38 Ω/100m |
| Operating Voltage | 80 V max |
| Operating Temperature | -20°C to +75°C |
| Standards | ANSI/TIA-568.C-2, ISO/IEC 11801, UL444 |
