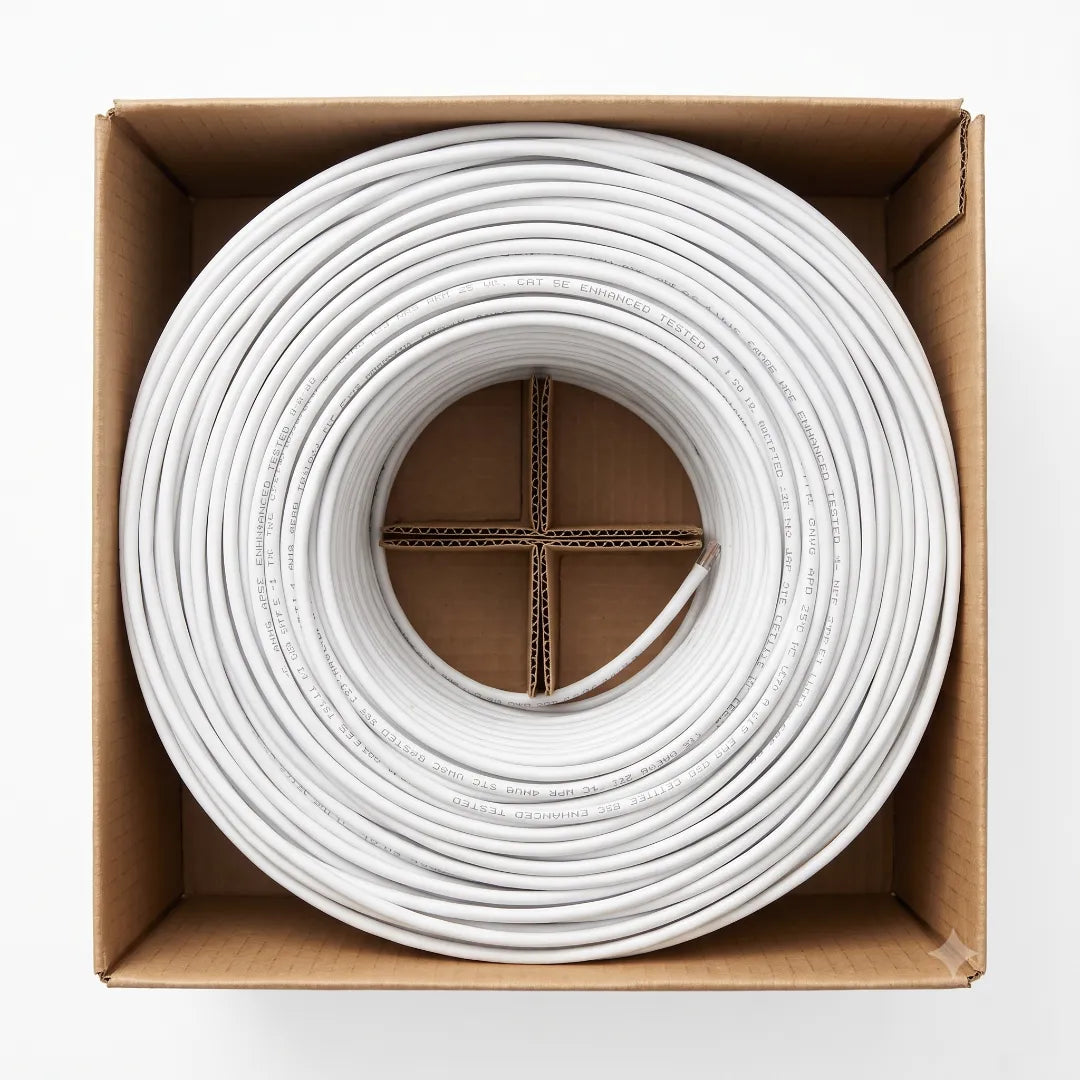

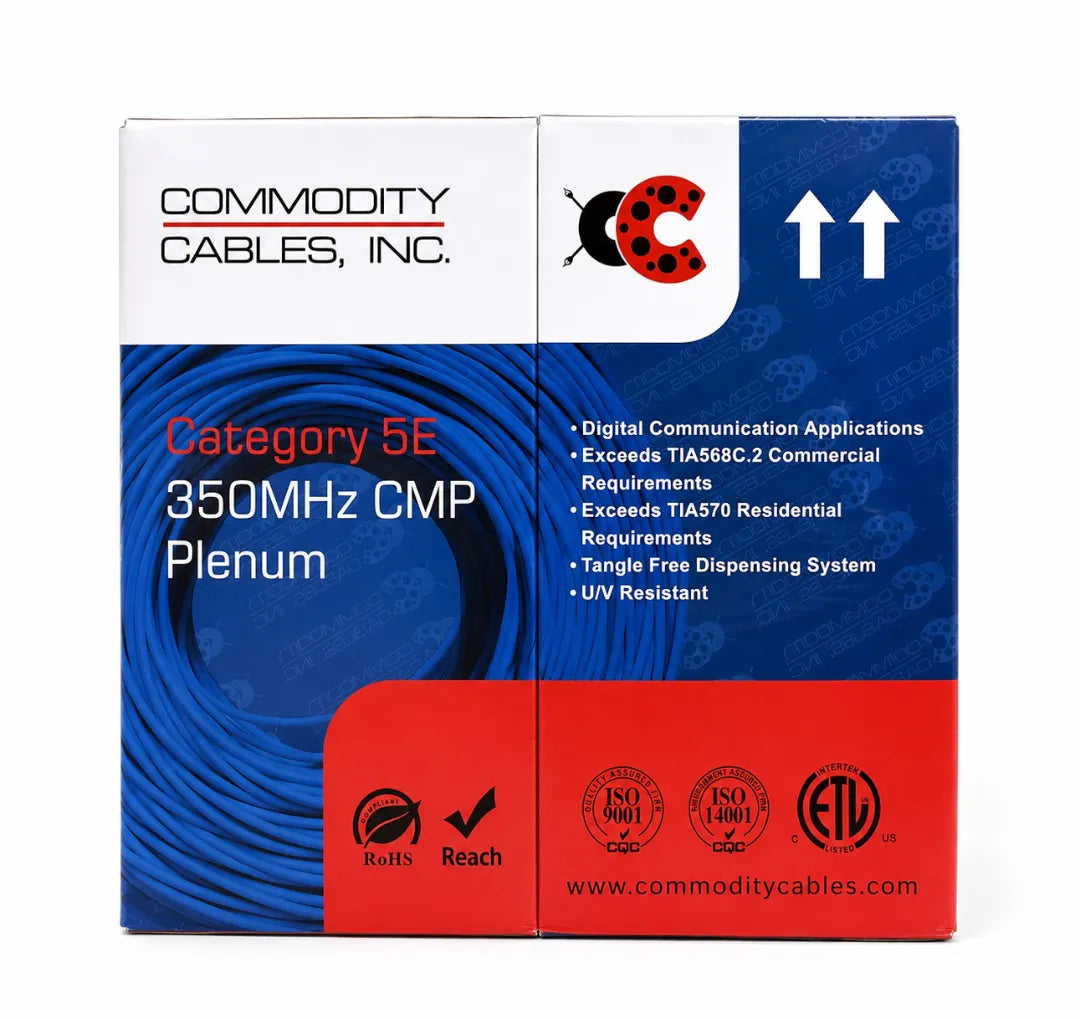

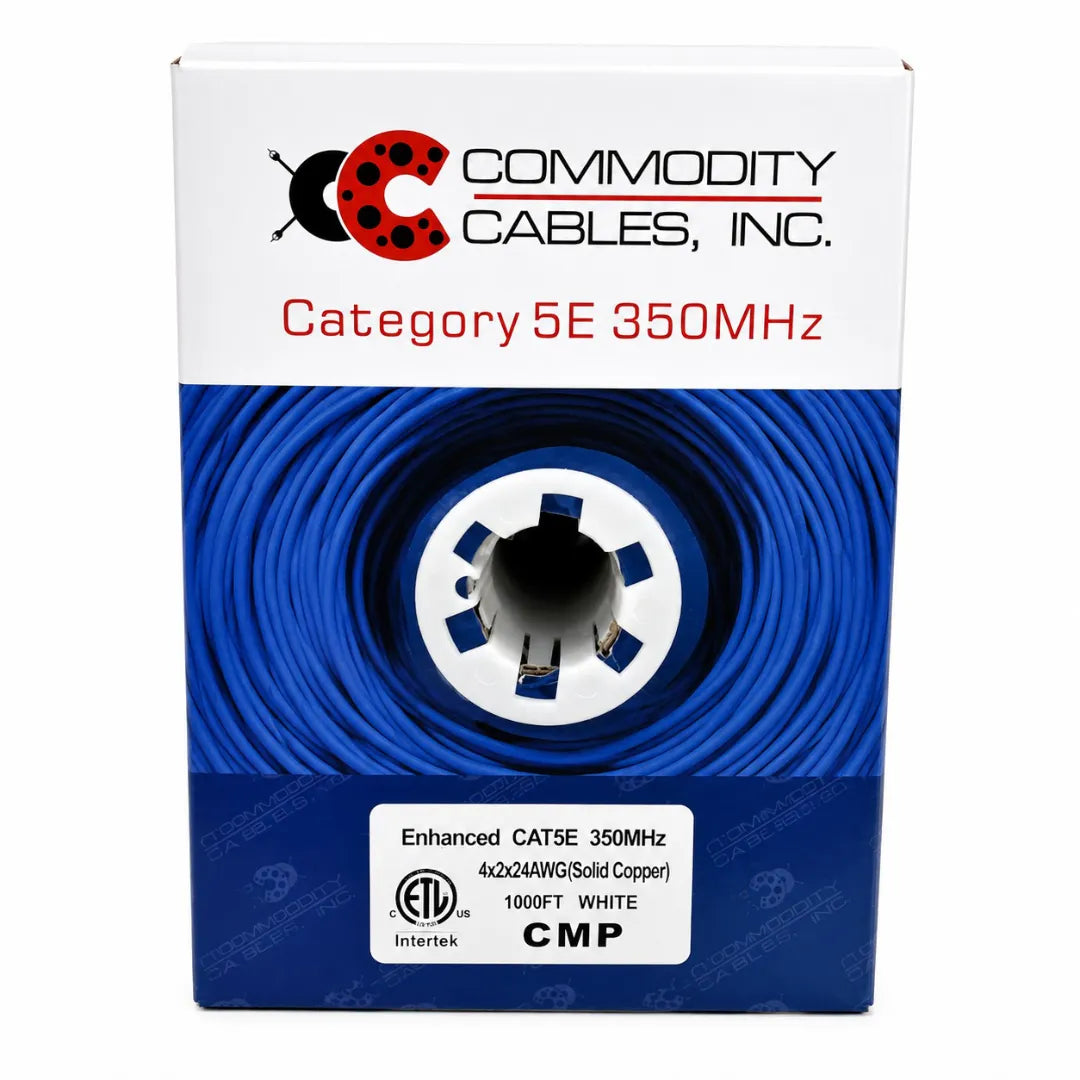

Commodity Cables 5ECMP244BW Cat5E Plenum UTP 1000ft Ethernet Cable
The Commodity Cables 5ECMP244BW is a high-performance Category 5E U/UTP plenum-rated Ethernet cable built with 24 AWG solid bare copper conductors. Tested to 350 MHz, this cable delivers reliable 1000Base-T performance for structured cabling installations in plenum air-handling spaces.
Construction & Design
- Conductor: 24 AWG solid bare copper (0.50 mm nominal OD)
- Insulation: Polyolefin (FEP), 0.90 mm diameter
- Jacket: Low Smoke FR-PVC, CMP-rated plenum, 4.9 mm OD
- Construction: 4-pair U/UTP unshielded twisted pair
- Rip Cord: 250D Nylon for easy jacket stripping
- Packaging: 1000 ft pull box, 20 lbs
Electrical Specifications
- Voltage Rating: 300V max
- NVP: 70%
- Characteristic Impedance: 100 ± 15 ohms (1-250 MHz)
- Max DC Loop Resistance: 25 ohms
- Max Mutual Capacitance: 330 pF/100m
- Delay Skew: 45 ns/100m max
Standards Compliance
- ANSI/TIA 568-C.2
- ISO/IEC 11801 Ed. 2.0 (Class EI)
- ICEA S-102-700
- REACH, RoHS, CPR Compliant
- Flame Test: CMP (Plenum)
Applications
- IEEE 802.3 1000Base-T, 100Base-TX, 10Base-T
- Power over Ethernet (PoE, PoE+)
- Digital Video, Broadband Analog Video
- ATM, Token Ring, CDDI
Frequency Transmission Data
| Frequency | Attenuation (dB/100m) | NEXT (dB/100m) | Return Loss (dB) |
|---|---|---|---|
| 1 MHz | 2.0 | 65.3 | 20.0 |
| 100 MHz | 22.0 | 35.3 | 20.1 |
| 350 MHz | 44.9 | 27.2 | 16.3 |
Additional Info & Specs
| Conductor | 24 AWG Solid Bare Copper |
| Insulation | Polyolefin (FEP), 0.90 mm |
| Jacket | Low Smoke FR-PVC, CMP Plenum |
| Jacket OD | 4.9 mm |
| Frequency | Tested to 350 MHz |
| Impedance | 100 ± 15 ohms |
| NVP | 70% |
| Max DC Loop Resistance | 25 ohms |
| Max Mutual Capacitance | 330 pF/100m |
| Voltage Rating | 300V max |
| Delay Skew | 45 ns/100m max |
| Temperature Range | -20 ~ 75°C |
| Cold Bend | -40 ± 2°C |
| Standards | ANSI/TIA 568-C.2, ISO/IEC 11801 |
| Length | 1000 ft (Pull Box) |
| Weight | 20 lbs |
