Description

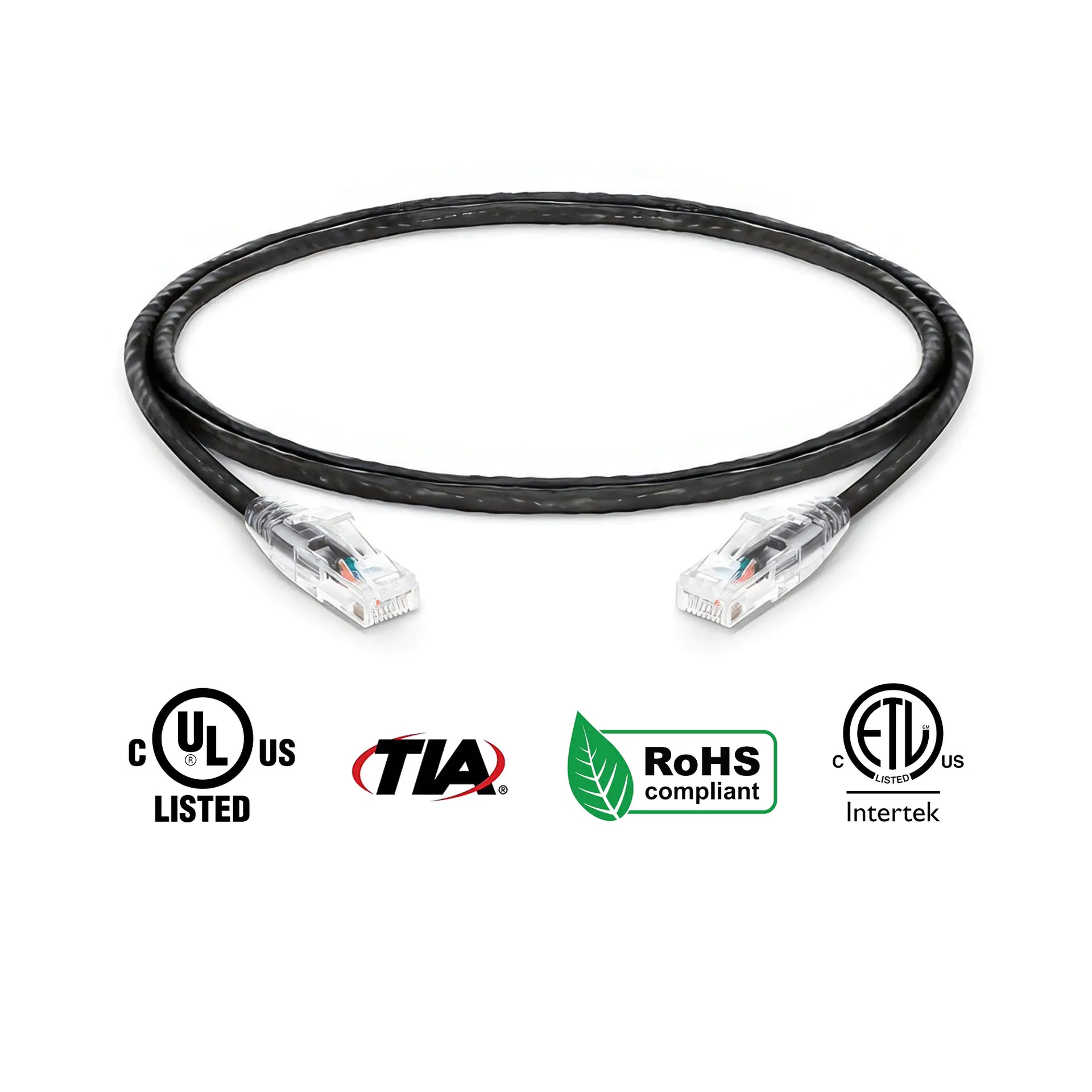

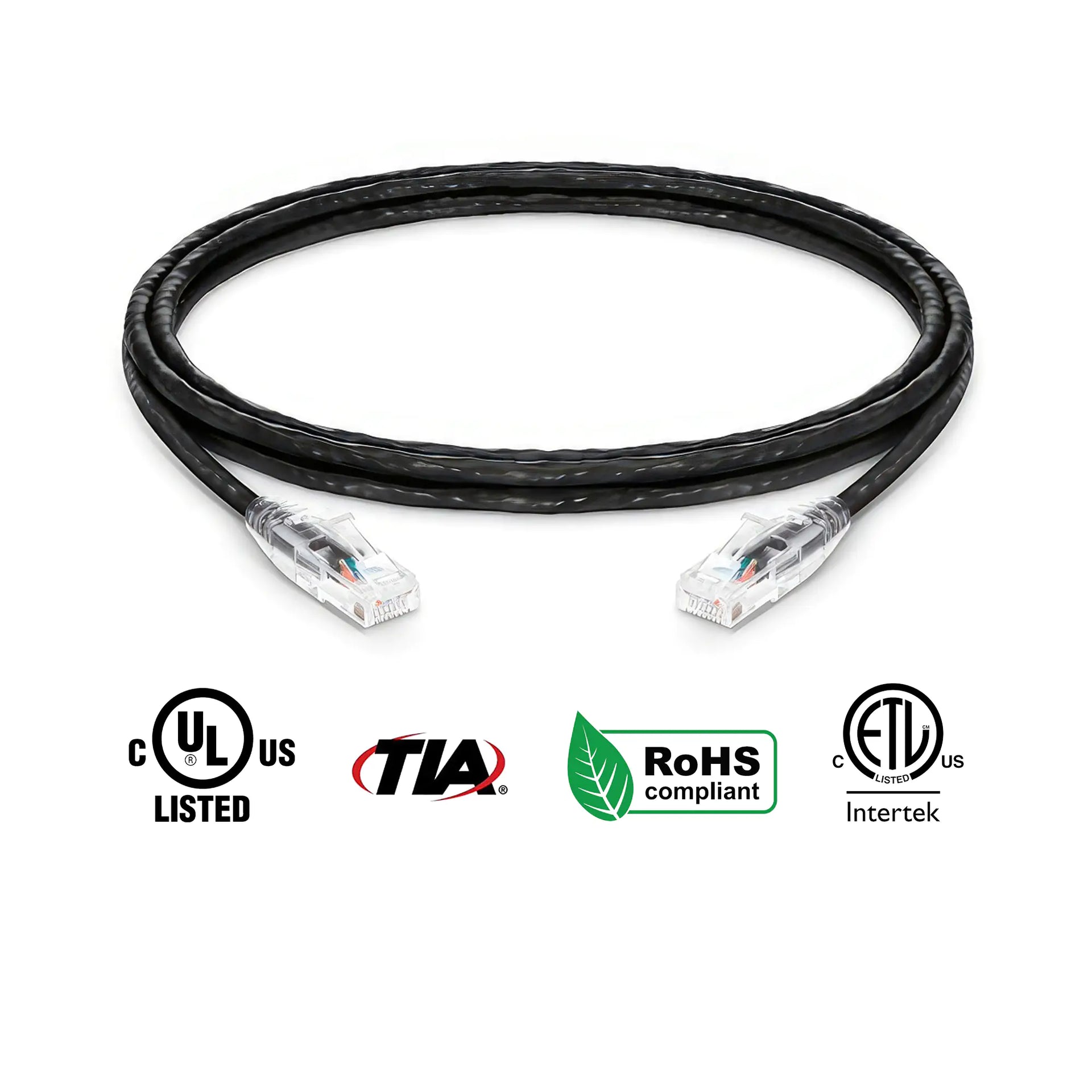

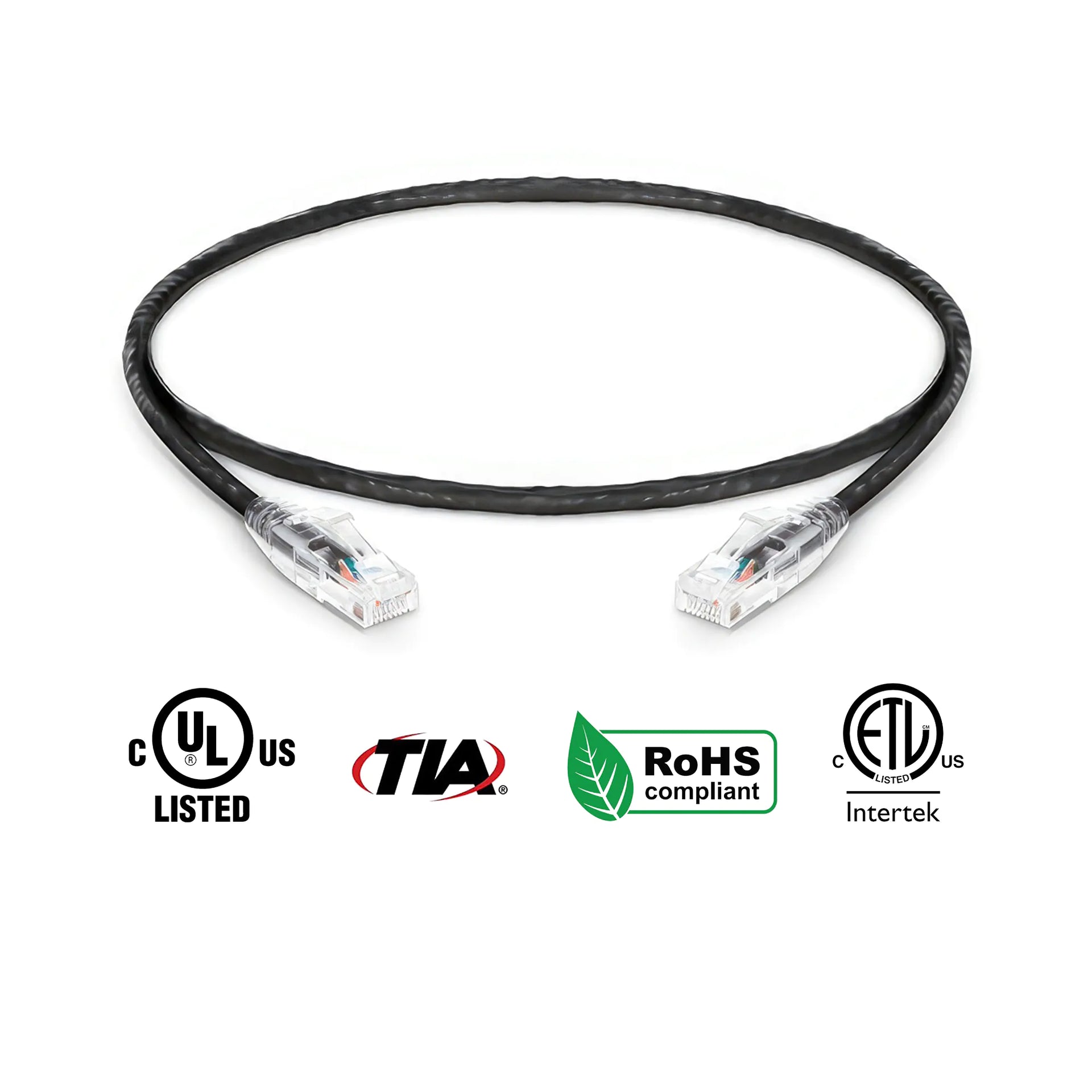

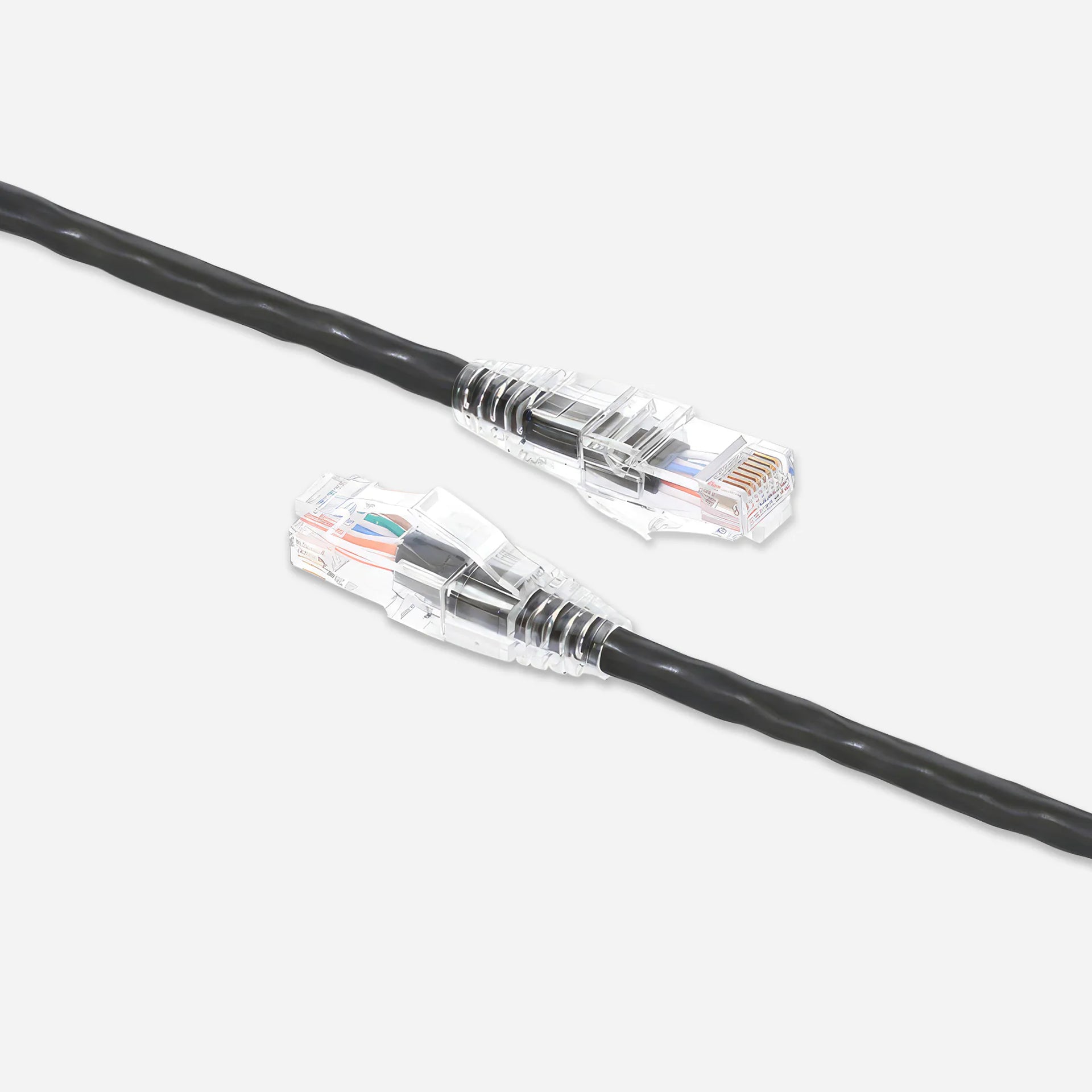

Cat6A Patch Cable Bare Copper Snagless 24 AWG UL Listed RJ45 Black Ethernet Cable
Ensure reliable network connections and enjoy speeds of 10Gbps with these high-quality Cat6A Ethernet Patch Cables. These cables deliver optimal conductivity and signal transmission and are constructed with 24AWG stranded pure copper wire, HDPE insulation, and a durable PVC jacket. The gold-plated contacts ensure stable high-performance connections, while the PVC molded boots offer strain relief and additional protection for the RJ45 connectors.
Designed for versatility, these network cables are factory-tested to guarantee performance and reliability. They comply with ANSI EIA/TIA 568-C.2 standards and follow the T568B wiring standard. Choose from a variety of colors to personalize your network setup, and select the perfect length (ranging from 0.3m to 45m) which is 1 ft to 20ft for your specific needs. These Cat6 patch cables feature a 550MHz frequency speed.
These Cat 6A Ethernet Cables are ideal for connecting various devices in your office networking and home, including computers, printers, network-attached storage (NAS), routers, switches, game consoles, and smart TVs. They are perfect for the cat6a interconnect ethernet network, hybrid cabling, Data Center horizontal cabling, and PoE Cabling Connections. Upgrade your network and experience fast data transfer, seamless streaming of high-definition video, and smooth online surfing with these dependable cables.
Construction and Materials
- Construction Material: The network patch cable is constructed with 4Pair 100% pure bare copper, ensuring high-end conductivity and signal rating.
- Insulation Material: It is composed of HDPE (High-Density Polyethylene) insulation, providing protection and stability to the internal wiring.
- Wire Gauge: The cable uses 24 AWG (7x0.18mm) stranded UTP (unshielded) wire, best for data transmission.
- Jacket Material: The jacket is made of 70℃55P PVC, offering durability and protection against external factors.
- Plug: Equipped with gold plated copper conductor Contacts, uninterrupted and high-performance connections.
- Boot: The cable comes with snagless design PVC Molded Boots, enhancing strain relief and durability.
- Connector: high-performance Rj45 connector type.
Performance and Standards
- Wire: Follows the T568B wiring (straight) standard for compatibility and consistency.
- Standard: Complies with ANSI EIA/TIA 568-C.2 and ISO 11801 standards, ensuring quality and performance.
- Speed: 10GBase-T ethernet
- ISO 11801: Classified as Class E, meeting international standards for data transmission.
- UL Listed: These CAT6A patch cords are UL listed (testing by Underwriters Laboratories).
- ETL Certified: Electrical Testing Laboratories certified and tested.
Key Features
- Factory Tested: Each CAT6A cable is factory tested to guarantee performance and connectivity.
- Variety of Colors: Available in Black, and multiple colors allow for color-coded networking setups.
- Various Lengths: Available in lengths ranging from 0.25m to 45m (0.5ft, 1ft, 3ft, 7ft, 10ft 15 ft, 20 ft) providing flexibility in network installations.
Q: What is the difference between Cat6 and Cat6A Ethernet patch cables?
A: Cat6 cables support data transfer speeds up to 10,000 Mbps and frequencies up to 550 MHz, while Cat6A cables can also support higher speeds and frequencies up to 750 MHz.
Q: Are these Cat6A Ethernet patch cables shielded?
A: No, These Cat6 Ethernet patch cables are unshielded, also known as UTP (Unshielded Twisted Pair).
Q: Can these Cat6A Ethernet patch cables support Power over Ethernet (PoE) applications?
A: Yes, these Cat6A Snagless Ethernet patch cables are designed to support PoE, PoE+, and PoE++ applications, delivering both data and power to compatible devices over the same cable.
Q: Are these Ethernet patch cables suitable for use in data centers?
A: These Ethernet patch cables are ideal for a wide range of network applications, including data centers, Security Systems, Home Networking, Industrial Applications, Healthcare Facilities, and Audio-Visual Systems thanks to their high-quality construction and performance.
Additional Info & Specs
Color | Black |
---|---|
Product Type | Ethernet Patch cable |
Condition | New |
Length | 0.5ft to 20ft |
Category | 6A |
Connector-Plug Style | Molded Boot Snagless |
Jacket | PVC |
Connector Contacts | Gold Plated |
Frequency | 550 MHz |
No. of Pairs | 4 Twisted |
Shielding | Unshielded |
Conductor | Stranded |
Conductor Material | Bare Copper |
Certification Standards | UL Certified, ETL, TIA Complient |
