Wavenet H26E26QMGN2-500 | 2 CAT6 CMR UTP 23AWG + 2 RG-6 QUAD Shield 18AWG CMR 3.0GHz (Overall CM) 500ft Reel Combination Cable

Wavenet H26E26QMGN2-500 | 2x CAT6E 600MHz UTP + 2x RG-6 Quad Shield CMR Combination Cable — 500ft Reel

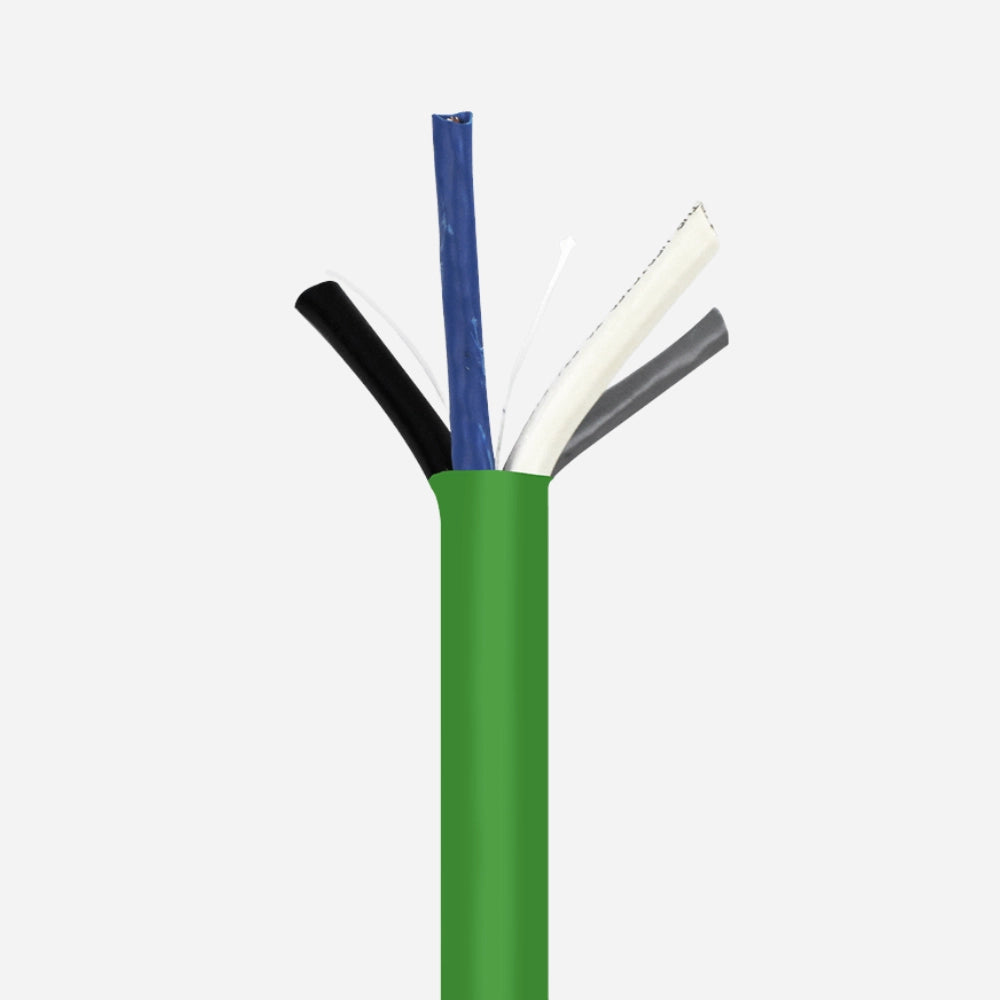

The Wavenet H26E26QMGN2-500 is a structured wiring combination cable that bundles two CAT6E 600MHz UTP data cables and two RG-6 Quad Shield coaxial cables into a single, green-jacketed assembly — delivering both high-speed network connectivity and broadband video distribution in one pull. Rated CMR (Communications Multipurpose Cable, Riser) for vertical installations and overall CM rated for general building distribution, this 500-foot reel is engineered for new construction and structured wiring projects where running separate cable types would add labor, material, and conduit fill.

Product Specifications

CAT6E UTP Component (per cable):

RG-6 Quad Shield Component (per cable):

Combined Assembly:

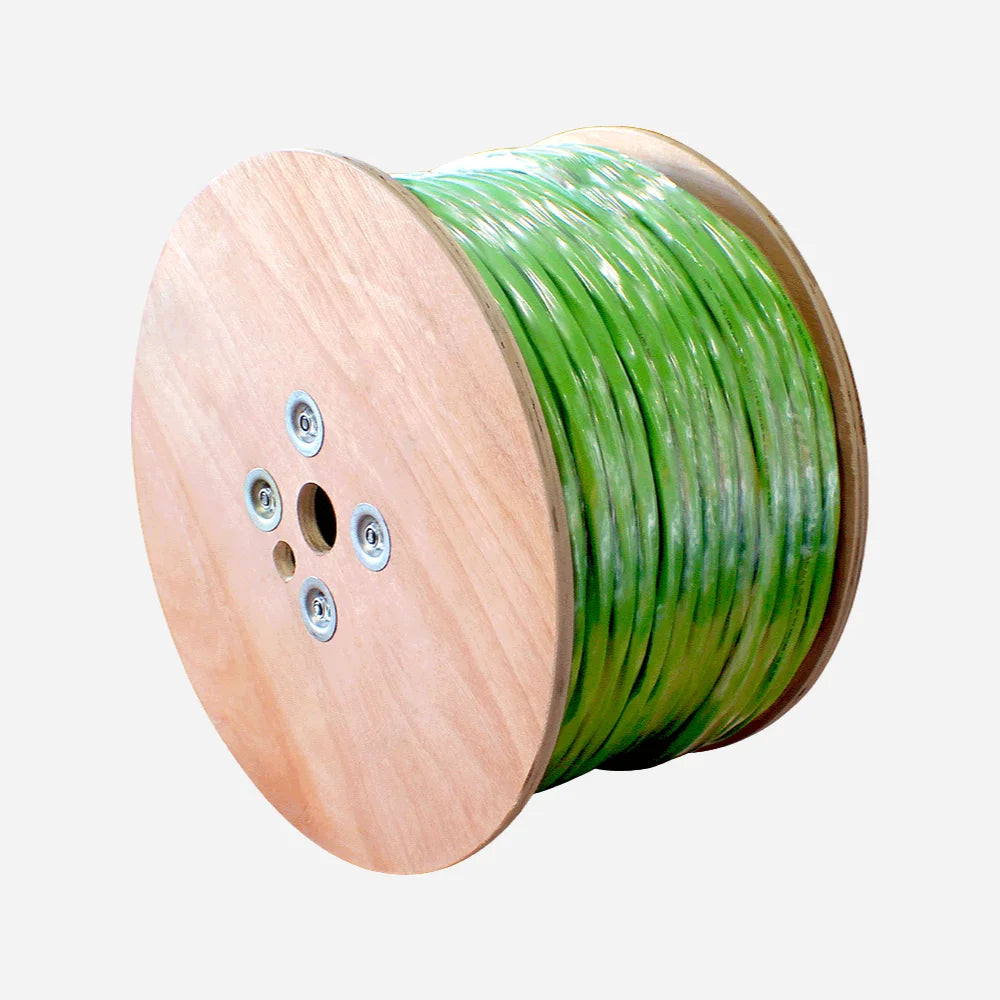

• Nominal Weight (500ft reel): 110 lbs.
• Jacket Color: Green
• Overall Rating: CM

Features and Applications

Each of the two coaxial cables in this assembly carries quad shielding — an Al foil layer paired with a 60% Al-Mg alloy braid, plus a second Al foil layer paired with a 40% Al-Mg alloy braid. This four-layer shielding configuration provides substantially greater signal isolation than standard dual-shield RG-6, making it well-suited for environments with high RF interference or installations requiring CATV compliance. The coaxial cables are swept and verified to 3.0GHz, covering the full frequency range required for digital cable television, satellite IF, and modern broadband systems.

The CAT6E UTP cables are rated to 600MHz and comply with TIA/EIA-568-C.2, supporting Gigabit Ethernet (1000BASE-T, IEEE 802.3), Fast Ethernet (100BASE-TX, 100BASE-VG, 100BASE-T4), 10BASE-T, 16 Mbps Token Ring (IEEE 802.5), and ATM at 155 Mbps. Pair assignments follow the standard color scheme: Pair 1 White/Blue, Pair 2 White/Orange, Pair 3 White/Green, Pair 4 White/Brown.

Uses

This combination cable is purpose-built for residential structured wiring — particularly in new construction where a single home run from a central distribution panel must serve both data and video outlets in the same room. It is equally appropriate for MDU (multi-dwelling unit) prewire, hospitality installations, and light commercial deployments where runs are made before walls are closed. The CMR riser rating allows vertical installation between floors without requiring plenum-rated cable.

Construction

The CAT6E cables use solid annealed bare copper conductors with polyethylene insulation and a flame retardant PVC jacket. PVC jacket mechanical characteristics meet a tensile strength of ≥13.8 MPa and ≥100% elongation before aging, with post-aging retention of ≥85% tensile strength and ≥50% elongation. Operating temperature range spans -20°C to +75°C, with installation permitted from 0°C to +60°C.

The RG-6 coaxial cables use a flame retardant PVC (FR-PVC) jacket. Overall jacket mechanical characteristics for the combined assembly meet ≥1.034 MPa tensile strength and ≥200% elongation before aging, with post-aging requirements of ≥85% tensile strength and ≥50% elongation after conditioning at 133.0 ± 1.0°C for 168 hours. Cold bend performance at -20 ± 2°C for 4 hours produces no cracking.

Additional Information

Cable Marking (as printed on jacket):
2XCAT6E 600 MHZ + 2 X RG6U/18 AWG QUAD CMR/CATVR VERIFIED TO FT4 C(ETL)US CATV SWEPT TO 3.0 GHZ ***FT

Applicable Standards:

• CAT6E: TIA/EIA-568-C.2 / IEC 61156 / ANSI/TIA-568-C.2 / UL 1666 CMR / ETL Listed Type CMR / C(ETL) Listed CMG FT4 / RoHS Compliant
• RG-6 Quad: SCTE IPS-SP-001 / UL 1655 / UL 13 / UL 444 / RoHS Compliant
