Cat6 Plenum Wavenet 6E04UPXX4N 600MHz UTP 23AWG 1000ft Solid Copper Ethernet Cable

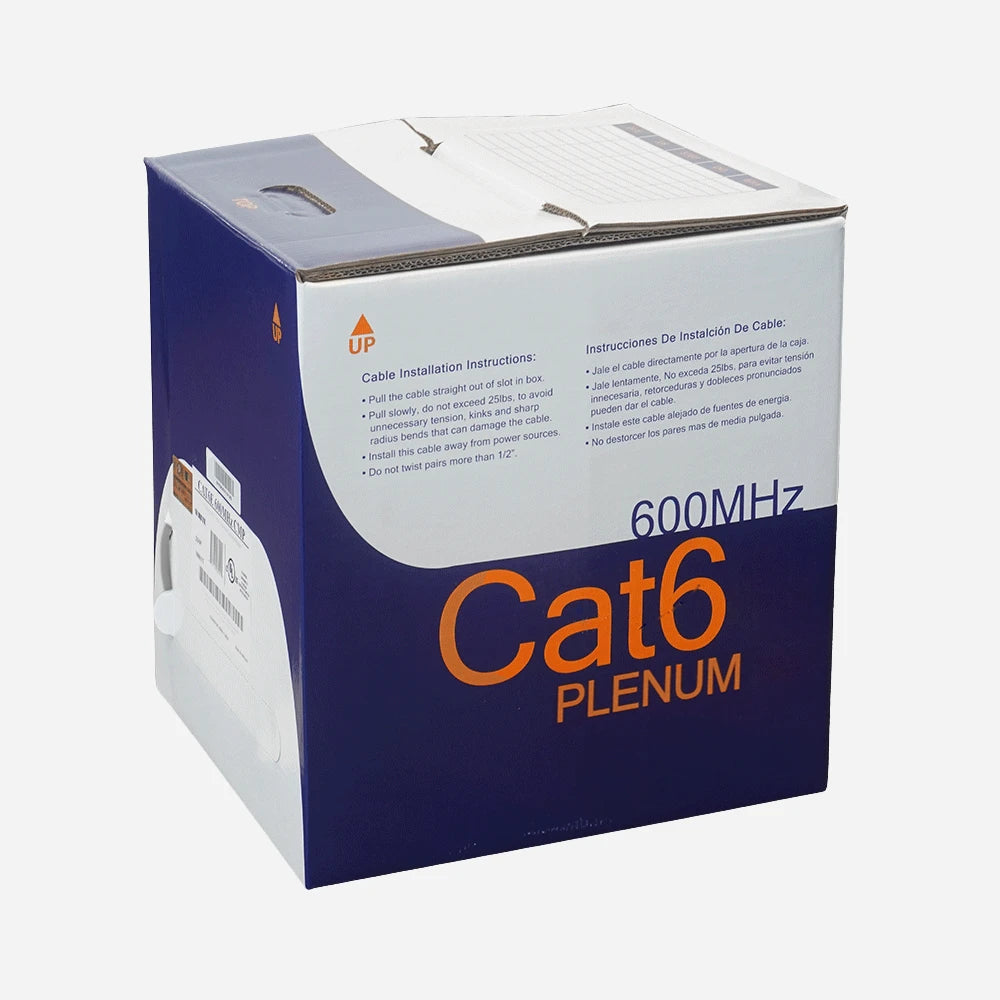

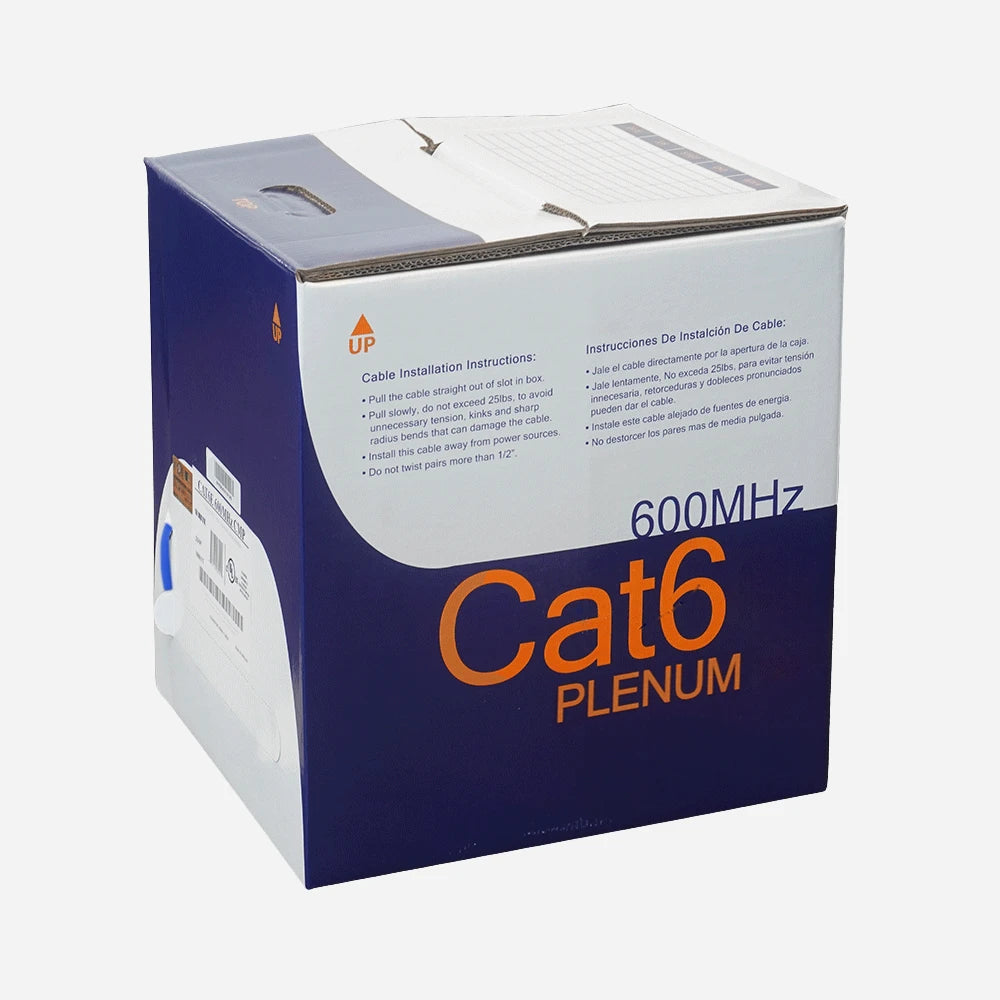

This Wavenet Cat6 plenum-rated Ethernet cable arrives on a Reelex II spool built for tangle-free payout during large commercial installs in air-handling spaces. As a CMP-rated cable verified to TIA-568-C.2, it pairs 600MHz performance with nine jacket color choices, giving installers the flexibility to color-code networks while meeting strict fire safety requirements in ducts, suspended ceilings, and other environmental air pathways.

Product Specifications
The cable uses 23 AWG solid bare copper conductors arranged in four twisted pairs insulated with FEP. It is C(ETL) listed for FT6 and CMP, C(ETL)US verified to ANSI/TIA-568-C.2, and RoHS compliant. Electrical characteristics include maximum DC resistance of 9.38 ohms per 100 meters at 20 degrees Celsius, mutual capacitance of 5.6 nano-farads per 100 meters, delay skew under 45 nanoseconds per 100 meters, and a nominal velocity of propagation of 70 percent. The flame-retardant PVC jacket has an average wall thickness of 0.020 inches and a nominal outer diameter of 0.236 inches. Each one-thousand-foot Reelex II spool weighs approximately 31 pounds. Part number 6E04UPXX4N is offered in nine jacket colors: black, blue, green, grey, red, orange, purple, white, and yellow.

Features and Applications
The unshielded twisted pair design manages crosstalk through precise pair geometry reinforced by an internal separator that keeps spacing consistent. Reelex II winding allows the cable to dispense smoothly from the box without twists or snarls, which reduces labor time and material waste on long pulls. Nine color options let contractors assign dedicated colors to separate floors, tenant networks, or security systems without depending entirely on labels.

Uses
This CMP-rated cable is intended for environmental air spaces such as suspended ceiling plenums, raised floor plenums, and HVAC return pathways in office towers, healthcare facilities, data centers, and university campuses. It supports Gigabit Ethernet backbones, IP surveillance networks, VoIP infrastructure, and wireless access point uplinks wherever local codes require plenum-rated cabling. The Reelex II packaging is especially useful on jobs where multiple reels are active at once and clean payout keeps walkways clear.

Construction
Wavenet builds this cable with solid bare copper conductors for stable electrical performance over permanent links. Each conductor is insulated with FEP, which handles higher thermal conditions than standard polyethylene, and an internal spline separates the pairs to limit crosstalk without adding metallic shielding. The plenum-rated PVC jacket meets FT6 flame and smoke specifications, tested to endure 100 degrees Celsius aging for 168 hours while retaining at least 85 percent of original tensile strength and 50 percent elongation. A ripcord beneath the jacket allows clean stripping during connector termination.

Additional relevant information
Cable markings read: XXXX CATEGORY 6 600MHZ 23 AWG 4PR UTP CMP 75C FT6 C(ETL)US VERIFIED (ETL) ANSI/TIA-568-C.2 followed by the footage count.
