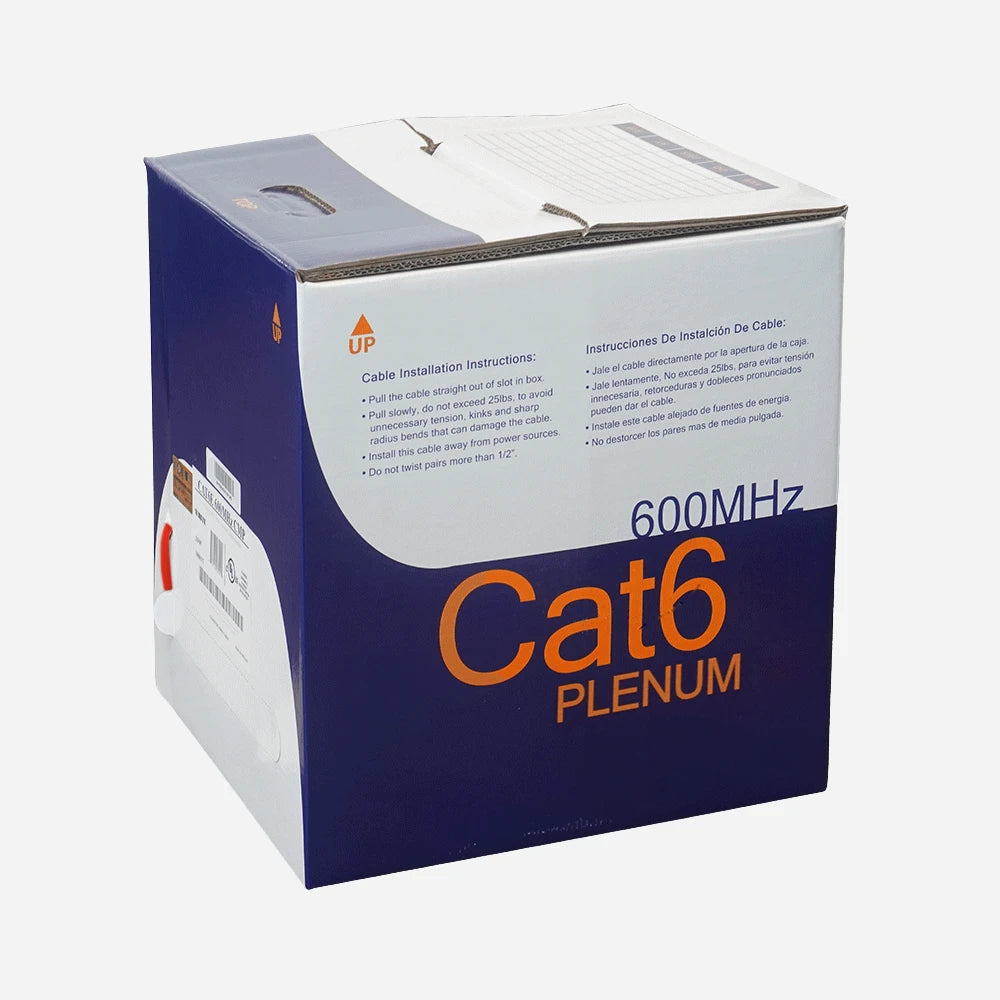

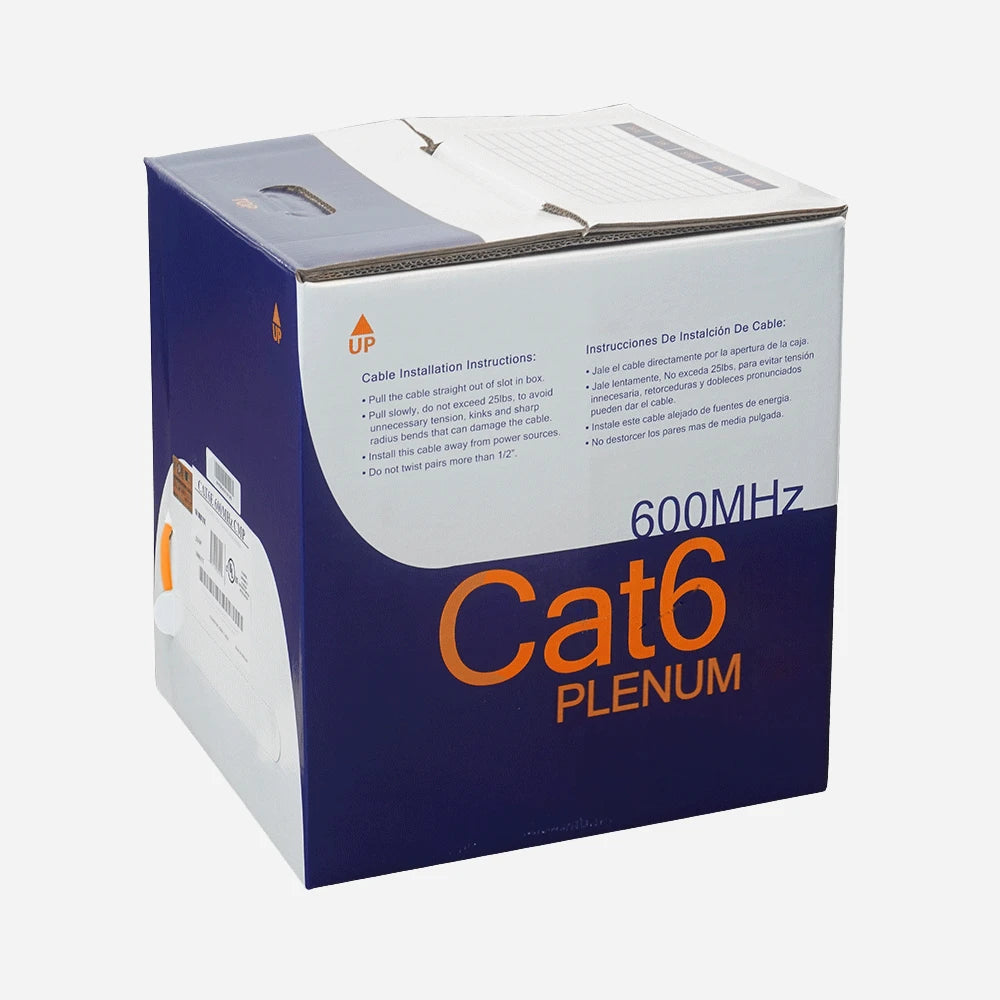

Cat6 Plenum Wavenet 6E04UPXX3N 600MHz UTP 23AWG 1000ft Solid Copper Ethernet Cable RIB (Reel-In-Box)

This Wavenet Cat6 plenum-rated Ethernet cable ships on a RIB (Reel-In-Box) spool designed for clean dispensing in air-handling spaces where building codes demand the highest level of fire safety. As a CMP-rated solution verified to TIA-568-C.2, it delivers 600MHz bandwidth performance while using materials that produce minimal smoke and resist flame spread when installed in ducts, drop ceilings, and other environmental air pathways.

Product Specifications
The cable employs 23 AWG solid bare copper conductors arranged in four twisted pairs, each insulated with FEP. It is C(ETL) listed for FT6 and CMP, C(ETL)US verified to ANSI/TIA-568-C.2, and RoHS compliant. Electrical characteristics include maximum DC resistance of 9.38 ohms per 100 meters at 20 degrees Celsius, mutual capacitance of 5.6 nanofarads per 100 meters, delay skew under 45 nanoseconds per 100 meters, and a nominal velocity of propagation of 70 percent. The flame-retardant PVC jacket has an average wall thickness of 0.020 inches and a nominal outer diameter of 0.236 inches. Each one-thousand-foot RIB spool weighs approximately 31 pounds. Part number 6E04UPXX3N is available in blue, grey, red, purple, and white jacket colors.

Features and Applications
With 600MHz bandwidth on an unshielded twisted pair design, this cable achieves crosstalk control through precise pair geometry backed by an internal separator that maintains consistent spacing. The FEP insulation offers higher thermal stability than standard polyethylene, pairing well with the plenum-rated jacket for installations where temperature and air circulation create challenging conditions. Five color choices help simplify circuit identification and inventory management on jobs with multiple cable runs.

Uses
This CMP-rated cable is required for installations within environmental air spaces such as suspended ceiling plenums, raised floor plenums, and HVAC ductwork in commercial buildings, healthcare facilities, data centers, and educational campuses. It serves as backbone or horizontal cabling for Gigabit Ethernet networks, IP surveillance systems, VoIP infrastructure, and wireless access point connections wherever local codes mandate plenum-rated materials. The RIB packaging works well for controlled-pull installations in occupied spaces where cable management and reduced packaging waste matter.

Construction
Wavenet constructs this cable with solid bare copper conductors for stable, low-resistance signal transmission over permanent links. The conductors are insulated with FEP, and an internal spline separates the twisted pairs to preserve crosstalk performance without adding metallic shielding. The outer jacket uses flame-retardant PVC engineered to FT6 standards, tested to withstand 100 degrees Celsius aging for 168 hours while retaining at least 85 percent of original tensile strength and 50 percent elongation. A ripcord beneath the jacket enables precise stripping without nicking the pairs.

Additional relevant information
Cable marking reads: XXXX CATEGORY 6 600MHZ 23 AWG 4PR UTP CMP 75C FT6 C(ETL)US VERIFIED (ETL) ANSI/TIA-568-C.2 followed by the footage count. Standard TIA pair color codes apply: white-blue with blue, white-orange with orange, white-green with green, and white-brown with brown. Installation temperature ranges from 0 to 75 degrees Celsius, with an operating range from negative 20 to 75 degrees Celsius.
