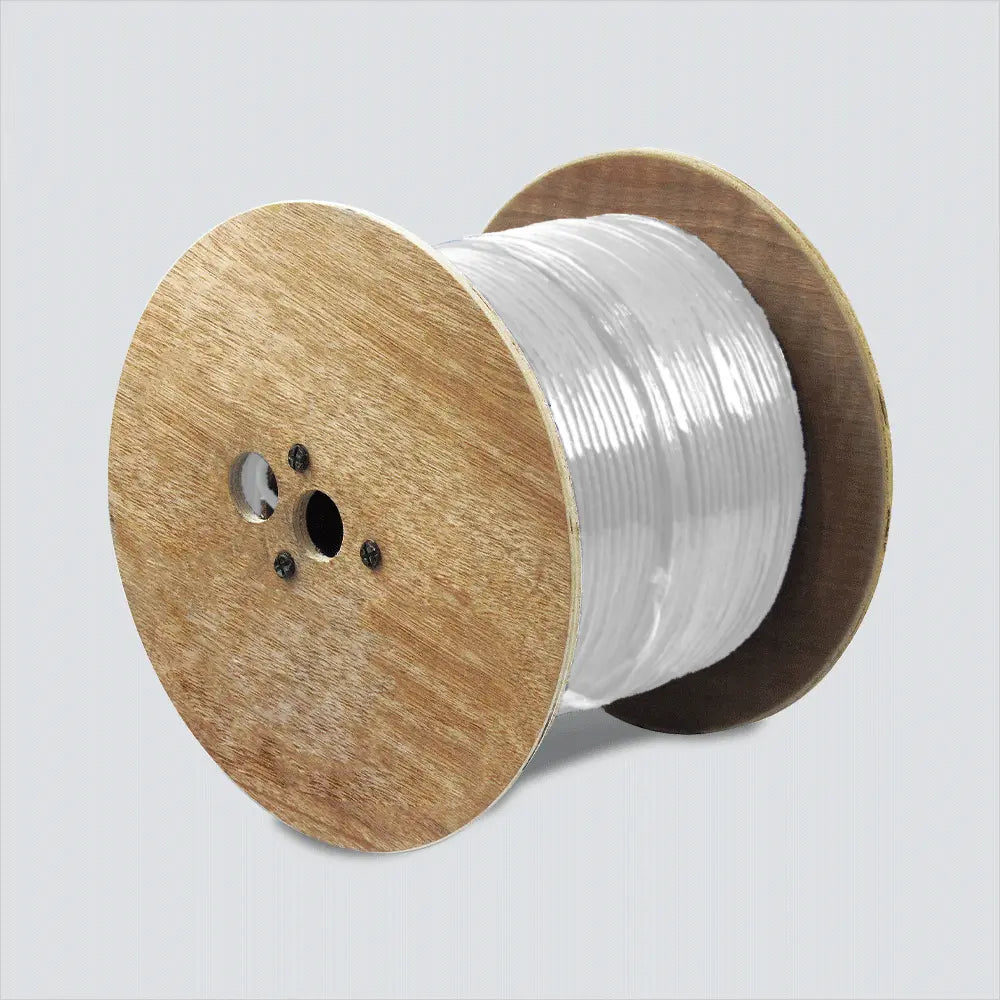

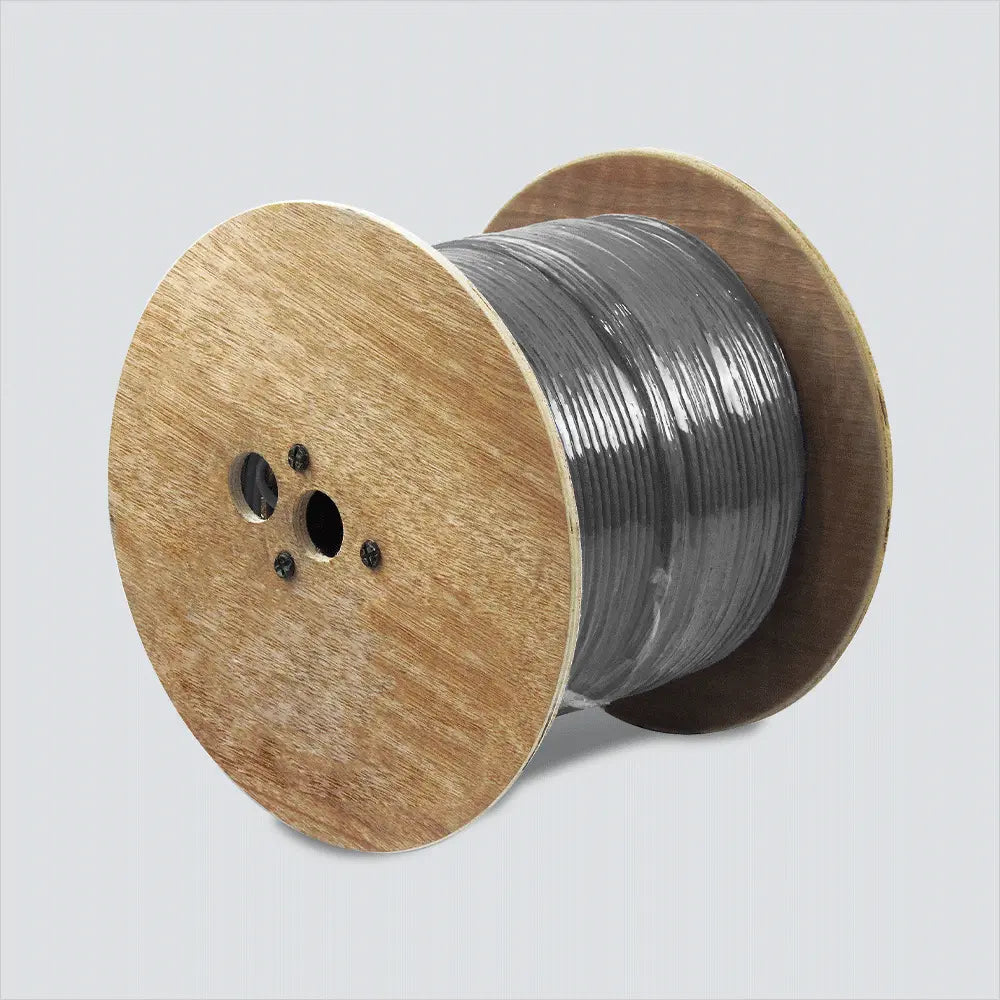

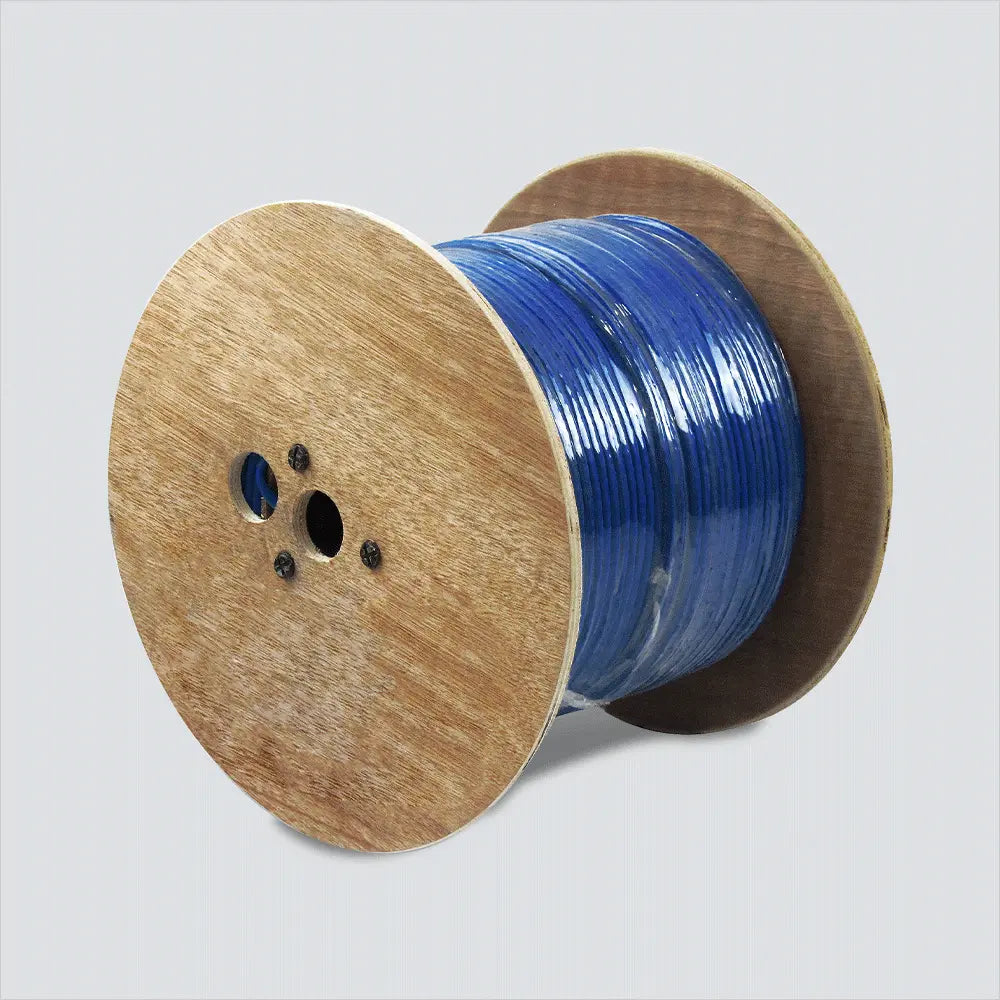

Cat6 Plenum Wavenet 6E04FPXX2N 600MHz F/UTP 23AWG 1000ft Solid Copper Ethernet Cable

You need a Cat6 Plenum cable that meets code in air-handling spaces and still delivers clean, high-speed data. The Cat6 Plenum Wavenet 6E04FPXX2N gives you exactly that.

This F/UTP cable uses four 23 AWG solid bare copper pairs rated to 600 MHz. The overall aluminum foil shield and drain wire block EMI, so you keep a stable network connection even near fluorescent lights, motors, or power lines. FEP insulation on each conductor and a central separator hold pair geometry tight for reliable data transmission across the full frequency range.

Key Construction Details

• CMP and FT6 plenum jacket (low-smoke flame-retardant PVC)

• 23 AWG solid bare copper conductors

• Overall foil shield (F/UTP) with drain wire

• Nominal outer diameter: 0.311 in

• 1000 ft reel, nominal weight 49 lbs

• Colors: blue, white, grey

• Ripcord for fast jacket removal

• ETL verified to ANSI/TIA-568-C.2 and RoHS compliant

You install this cable in drop ceilings, raised floors, and other environmental air spaces without violating fire codes. The CMP rating limits flame spread and smoke production, which building inspectors require in commercial cabling and data center cabling runs.

Where You Use It

Run horizontal or backbone links in offices, schools, hospitals, and government buildings. The 600 MHz bandwidth supports Gigabit Ethernet today and leaves headroom for multi-gigabit applications. Solid copper conductors keep DC resistance low (max 9.38 Ω/100 m) and maintain signal integrity over longer distances.

You get sequential foot markers, standard TIA color coding, and an operating temperature range of –20 °C to 75 °C. Installation stays practical between 0 °C and 75 °C.

When you need more options in the same family, explore the full range of Cat6 plenum Ethernet cable or other Wavenet cables. Discounted Cables ships tax-free across the USA, so you control project cost without surprise charges.

Buy Wavenet 6E04FPXX2N Cable when your job demands both code compliance and consistent high-speed performance in plenum spaces.
