Description

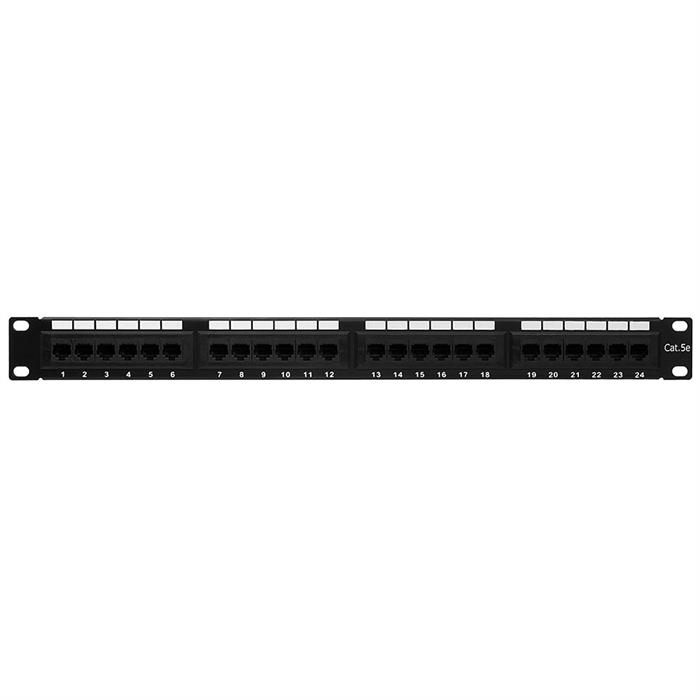

The Cat5e 24-port Patch Panel 110 Type - Enhanced gives your network a solid foundation. This 24-port Cat5e patch panel fits any standard 19-inch rack and uses a 1U form factor, making it a space-efficient choice for structured cabling. Each Cat5e port is certified and ready for Ethernet, Fast Ethernet, and Gigabit Ethernet connections, supporting data rates up to 1000 Mbps over distances up to 100 meters.
You get flexibility with universal compatibility for both T568A and T568B wiring schemes. The Cat5e Enhanced rating means this panel meets stricter standards for crosstalk and attenuation, ensuring clean, reliable signal transmission. Whether you’re wiring a home network, a small business, or a data center, this Cat5e patch panel 24-port model keeps your connections organized and accessible.
Built to Last: Materials and Construction
Discounted Cables constructs this 24-port Cat5 patch panel from robust steel, providing durability for demanding rack environments. Each port features 50 micro-inch gold-plated jack contacts, which resist corrosion and maintain low-resistance connections over time. Fully shielded ports protect your network from electromagnetic interference, while removable jacks allow for easy access and replacement without removing the entire panel.
The color-framed port design and color-coded labeling system make cable identification straightforward, reducing troubleshooting time and simplifying maintenance.
Key Specifications
|
Feature |
Details |
|
Ports |
24 certified Cat5e ports |
|
Form Factor |
19-inch rack-mountable, 1U height |
|
Termination |
110-type IDC punch-down (110 patch panel) |
|
Wiring Standards |
T568A and T568B compatible |
|
Bandwidth |
Up to 100 MHz |
|
Data Rate |
10/100/1000 Mbps (Gigabit Ethernet ready) |
|
Max Cable Run |
100 meters |
|
Jack Contacts |
50 micro-inch gold-plated |
|
Construction |
Steel chassis, fully shielded ports |
|
Certification |
UL Listed, ANSI/TIA-568 compliant |
|
Labeling |
Color-coded, color-framed segment design |
|
Jacks |
Removable for easy replacement |
Simple Installation Process
The 110-type termination system uses insulation displacement contact (IDC) technology. This method lets you punch each wire directly into the rear block without stripping insulation, creating a secure, gas-tight connection. Here’s how installation works:
-
Mount the panel to your 19-inch rack or wall bracket.
-
Strip the outer jacket of each Cat5e cable to expose the four twisted pairs.
-
Arrange wires according to the T568A or T568B color code diagram on the panel.
-
Use a 110 punch-down tool to seat each wire into its IDC slot.
-
Trim excess wire ends after termination.
-
Label each port using the color-coded area on the front.
-
Test all connections with a cable tester to confirm proper wiring.
Why Choose Discounted Cables?
Discounted Cables operates in the USA and delivers every order tax-free, giving you a clear cost advantage. Bulk orders qualify for free shipping, making it easy to outfit larger projects without extra freight costs. The 24-port Cat5e enhanced design, UL listing, and gold-plated contacts ensure you receive a panel that meets professional standards at a competitive price.
Frequently Asked Questions
Is a Cat5e patch panel compatible with Gigabit Ethernet?
Yes. This Cat5e patch panel, 24-port, supports 1000 Mbps (Gigabit Ethernet) over cable runs up to 100 meters, meeting ANSI/TIA-568 standards.
What is the difference between a 110 patch panel and a keystone patch panel?
110 patch panel uses punch-down IDC blocks for permanent, gas-tight terminations. A keystone patch panel uses modular jacks that snap in and out, offering more flexibility for changes.
Can I use Cat6 cable with a Cat5e patch panel?
You can terminate a Cat6 cable into this Cat5e patch panel, but the link will only meet Cat5e specifications. For full Cat6 performance, use a Cat6-rated panel.
Do I need to use the same wiring scheme (T568A or T568B) on both ends?
Yes. Use the same wiring scheme on both ends of each cable run to ensure correct connectivity.
What tool do I need to terminate a 110-type patch panel?
A 110-type punch-down tool is required. This tool seats each wire into the IDC slot and trims excess wire in one action.
