BERK-TEK LANmark-6 CAT6 Riser Cable - 1000ft Pull Box
This BERK-TEK LANmark-6 riser cable delivers dependable Category 6 performance for backbone and riser runs that demand a CMR-rated, plenum-free construction. Built on 24 AWG solid bare copper conductors, it is engineered for installers who need certified performance, clean pulls, and long-term reliability in commercial riser pathways.
Performance & Construction

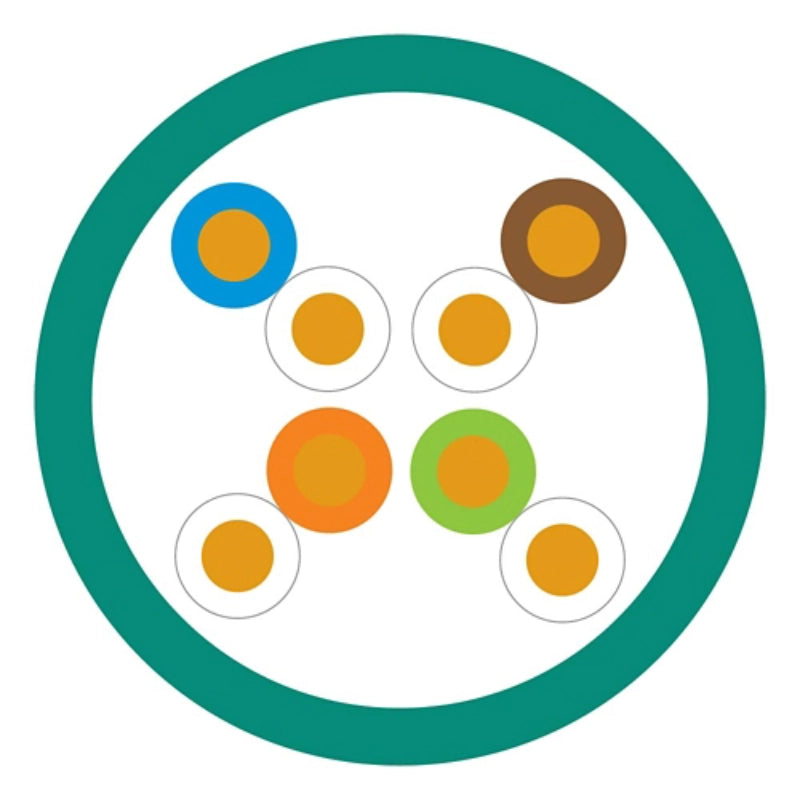

Characterized to 500 MHz, the cable comfortably supports applications extending to 250 MHz, including 2.5/5GBASE-T, 1000BASE-T, 100BASE-TX, and 10BASE-T. The four unshielded twisted pairs are constructed without a center spline, which keeps the cable flexible and easy to terminate while maintaining pair geometry.
Power over Ethernet Ready
Certified for IEEE 802.3 PoE Types 1 through 4 (up to 100 watts), Cisco UPOE and UPOE+ (90 watts max), and Power over HDBaseT (PoH) at 95 watts max, this riser cable is suited for powering IP cameras, wireless access points, and other PoE endpoints.
Standards & Compliance
ETL verified to Cat 6, compliant with ANSI/TIA-568.2 Cat 6 and ISO/IEC 11801 2nd Edition Class E, UL 444 listed, and RoHS compliant. The CMR riser rating meets UL 1666 for vertical riser installations.
Physical Specifications
- Conductor: 24 AWG solid bare copper
- Conductor diameter: 0.0210 in (0.5334 mm)
- Max insulated conductor diameter: 0.0380 in (0.9652 mm)
- Nominal cable diameter: 0.205 in (5.21 mm)
- Nominal cable weight: 19.5 lb/kft (29.0 kg/km)
- Pairs: 4
- Jacket: UTP, CMR riser rated (UL 1666)
- Nominal velocity of propagation: 69%
Electrical Specifications
- DC resistance: Max 9.38 ohm/100 m
- DC resistance unbalance: Max 5%
- Mutual capacitance: Nom 5.1 nF/100 m at 1 kHz
- Capacitance unbalance (pair-to-ground): Max 330 pF/100 m at 1 kHz
- Delay skew: 45 ns/100 m max
Temperature Ratings
- Storage/operating: -20 C to +60 C (-4 F to +140 F)
- Installation: +5 C to +50 C (+41 F to +122 F)
- Listed temperature: +75 C (+167 F)
Additional Info & Specs
| Brand | BERK-TEK (Leviton) |
| Part Number | 10136752 |
| Category | Cat 6 |
| Length | 1000 ft |
| Conductor | 24 AWG solid bare copper |
| Conductor Diameter | 0.0210 in (0.5334 mm) |
| Max Insulated Conductor Diameter | 0.0380 in (0.9652 mm) |
| Nominal Cable Diameter | 0.205 in (5.21 mm) |
| Nominal Cable Weight | 19.5 lb/kft (29.0 kg/km) |
| Number of Pairs | 4 |
| Construction | UTP, no center spline |
| Jacket / Fire Rating | CMR Riser (UL 1666) |
| Bandwidth | 500 MHz |
| Nominal Velocity of Propagation | 69% |
| DC Resistance | Max 9.38 ohm/100 m |
| DC Resistance Unbalance | Max 5% |
| Mutual Capacitance | Nom 5.1 nF/100 m at 1 kHz |
| Capacitance Unbalance (pair-to-ground) | Max 330 pF/100 m at 1 kHz |
| Delay Skew | 45 ns/100 m max |
| PoE Support | IEEE 802.3 PoE Types 1-4 (100W), Cisco UPOE/UPOE+ (90W), PoH (95W) |
| Standards | ETL Cat 6, ANSI/TIA-568.2, ISO/IEC 11801 Class E, UL 444, RoHS |
| Storage/Operating Temp | -20 C to +60 C (-4 F to +140 F) |
| Installation Temp | +5 C to +50 C (+41 F to +122 F) |
| Listed Temperature | +75 C (+167 F) |
