BERK-TEK | 10032479 LANmark-1000 Enhanced CAT6 Riser 1000ft 550MHz CMR UTP Ethernet Cable

BERK-TEK LANmark-1000 Enhanced CAT6 Riser Cable - 1000ft Pull Box

This BERK-TEK LANmark-1000 riser cable delivers enhanced Category 6 performance for backbone and riser runs that require a CMR-rated construction. Built on 23 AWG solid bare copper conductors with a cross-filler design, it is engineered for installers who need certified performance, clean terminations, and dependable long-term reliability in commercial riser pathways.

Performance & Construction

Characterized to 550 MHz, the cable comfortably supports applications extending to 250 MHz, including 2.5/5GBASE-T, 1000BASE-T, 100BASE-TX, and 10BASE-T. Four pairs are laid up around a cross-filler to maintain precise pair geometry and enhance crosstalk performance while keeping the cable easy to terminate.

Power over Ethernet Ready

Certified for IEEE 802.3bt PoE Types 1 through 4 (up to 100 watts), Cisco UPOE and UPOE+ (90 watts max), and Power over HDBaseT (PoH) at 95 watts max, this riser cable is suited for powering IP cameras, wireless access points, and other PoE endpoints.

Standards & Compliance

Compliant with ANSI/TIA-568.2-D Cat 6 and ISO/IEC 11801, UL 444 listed, ETL verified, and RoHS compliant. The CMR riser rating meets UL 1666 for vertical riser installations.

Physical Specifications

• Conductor: 23 AWG solid bare copper
• Max conductor diameter: 0.022 in (0.56 mm)
• Max insulated conductor diameter: 0.039 in (0.99 mm)
• Nominal cable diameter: 0.230 in (5.84 mm)
• Nominal cable weight: 25 lb/kft (37.2 kg/km)
• Min bend radius: 1.00 in (25.40 mm)

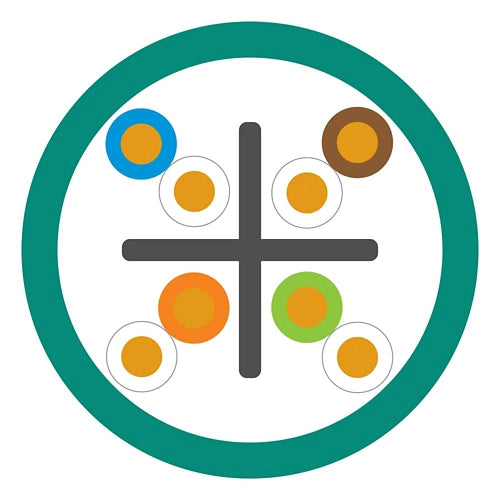

• Construction: 4-pair UTP with cross-filler
• Jacket: White flame retardant polymer, CMR riser rated (UL 1666)
• Nominal velocity of propagation: 68%

Electrical Specifications

• DC resistance: Max 9.38 ohm/100 m
• DC resistance unbalance: Max 5%
• Mutual capacitance: Nom 5.1 nF/100 m at 1 kHz
• Capacitance unbalance (pair-to-ground): Max 330 pF/100 m at 1 kHz
• Delay skew: 45 ns/100 m max

Temperature Ratings

• Storage/operating: -20 C to +60 C (-4 F to +140 F)
• Installation: +5 C to +50 C (+41 F to +122 F)
• ETL listed temperature: +75 C (+167 F)
