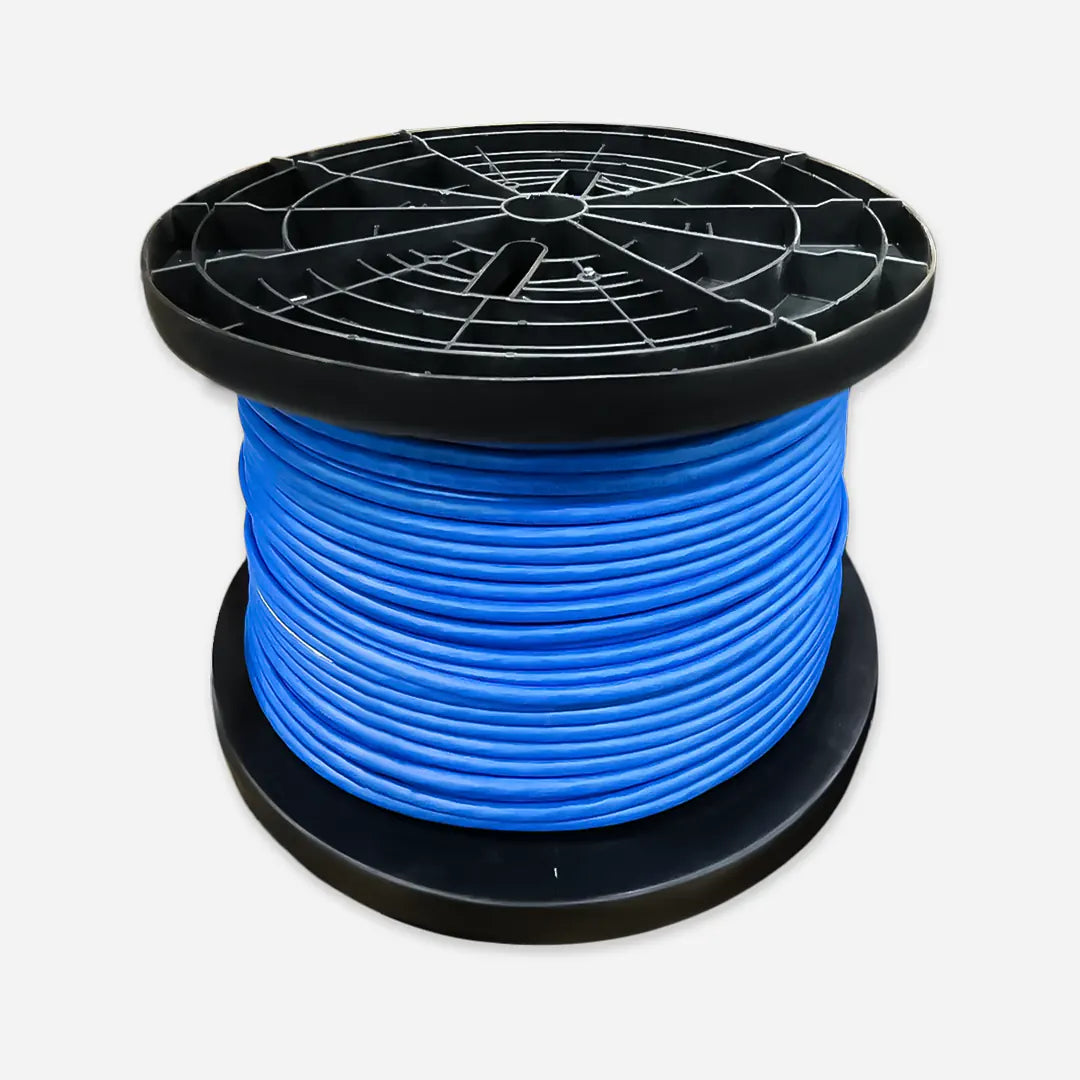

BERK-TEK | 10032064 LANmark-350 CAT5E Plenum 1000ft UTP Ethernet Cable

BERK-TEK | 10032064 LANmark-350 CAT5E Plenum UTP Ethernet Cable

Experience superior network performance with the BERK-TEK LANmark-350 CAT5E Plenum Cable. This premium 1000ft UTP (Unshielded Twisted Pair) cable is engineered for high-speed data applications, providing a reliable and efficient solution for your networking needs. Tested up to 450 MHz, the LANmark-350 significantly exceeds standard Category 5e requirements, ensuring lower bit error rates and enhanced network uptime. Its robust construction and plenum rating make it the ideal choice for installation in air handling spaces, delivering both safety and exceptional performance.

Product Specifications

• Part Number: 10032064
• Cable Type: UTP (Unshielded Twisted Pair)
• Performance Category: Category 5e
• Conductor: 24 AWG Solid Bare Copper
• Number of Pairs: 4
• Jacket Material: Flame-Retardant PVC
• Flame Rating: Plenum (NFPA 262, CMP)
• Cable Diameter: 0.165 in. (4.2 mm)
• Length: 1000 ft (305 m)
• Packaging: Reel
• Color: Blue

Features and Benefits

• High-Speed Performance: Characterized to 450 MHz, which is 350 MHz above the Cat 5e standard, this cable reliably supports high-speed applications like 100BASE-TX Ethernet and Gigabit Ethernet.
• Enhanced Network Efficiency: Engineered for lower bit error rates, the LANmark-350 cable increases your network's overall efficiency and uptime, ensuring a stable and consistent connection.
• Cost-Effective Installation: The cable's small, round, and flexible design simplifies handling and installation, which helps in reducing both initial setup costs and long-term maintenance.
• Certified Quality: ETL verified to meet and exceed ANSI/TIA/EIA-568-B.2 and ISO/IEC 11801 standards, guaranteeing industry-compliant performance and reliability.
• Safety Certified: With a CMP plenum rating, this cable is approved for use in plenum spaces (the areas in a building that facilitate air circulation for heating and air conditioning systems), meeting strict fire safety standards.

Primary Applications and Uses

The Berk-Tek LANmark-350 cable is expertly designed for a wide range of high-speed data and networking applications, including:

• 1000BASE-T Gigabit Ethernet
• 100BASE-TX Fast Ethernet
• 10BASE-T Ethernet
• 155 Mb/s ATM
• CDDI (Copper Distributed Data Interface)
• Broadband Video and VoIP

Construction Details

This cable is meticulously constructed for durability and optimal signal integrity. It features solid 24 AWG bare copper conductors insulated with FEP (Fluorinated Ethylene Propylene). The insulated conductors are twisted into four pairs, which are then cabled together and encased in a durable, blue, flame-retardant PVC jacket to form the final unit.
