Description
The Belden 2413F is a high-performance Category 6+ enhanced premise horizontal cable engineered for demanding network infrastructure applications. Operating at 350MHz bandwidth, this plenum-rated cable delivers reliable data transmission for Ethernet networks up to 10GBASE-T speeds while meeting strict fire safety requirements for air-handling spaces. Although this specific model has been discontinued and replaced by the 2413FS variant, it remains a reference standard for premium solid copper cabling solutions that combine superior electrical performance with robust construction.
Product Specifications
- Cable Type: Category 6+ Enhanced Premise Horizontal Cable (350MHz)
- Configuration: 4 Pair, F/UTP (Foil Shielded Twisted Pair)
- Conductor: 23 AWG Solid Bare Copper (BC)
- Nominal Diameter: 0.265 inches (7.24 mm)
- DC Resistance: 5.8 Ohm/km (8.9 Ohm/1000ft)
- Capacitance Unbalance: Maximum 330 pF/100m
- Voltage Rating: 300V EMP
- Operating Temperature: -20°C to +75°C
- Installation Temperature: 0°C to +50°C
- Pull Tension: Maximum 25 lbs (11 kgf)
- Cable Weight: 44 lbs/1000ft (66 kg/km)
- Bend Radius: 1.3x diameter (32.6mm) installation / 2.6x diameter (65.2mm) loaded

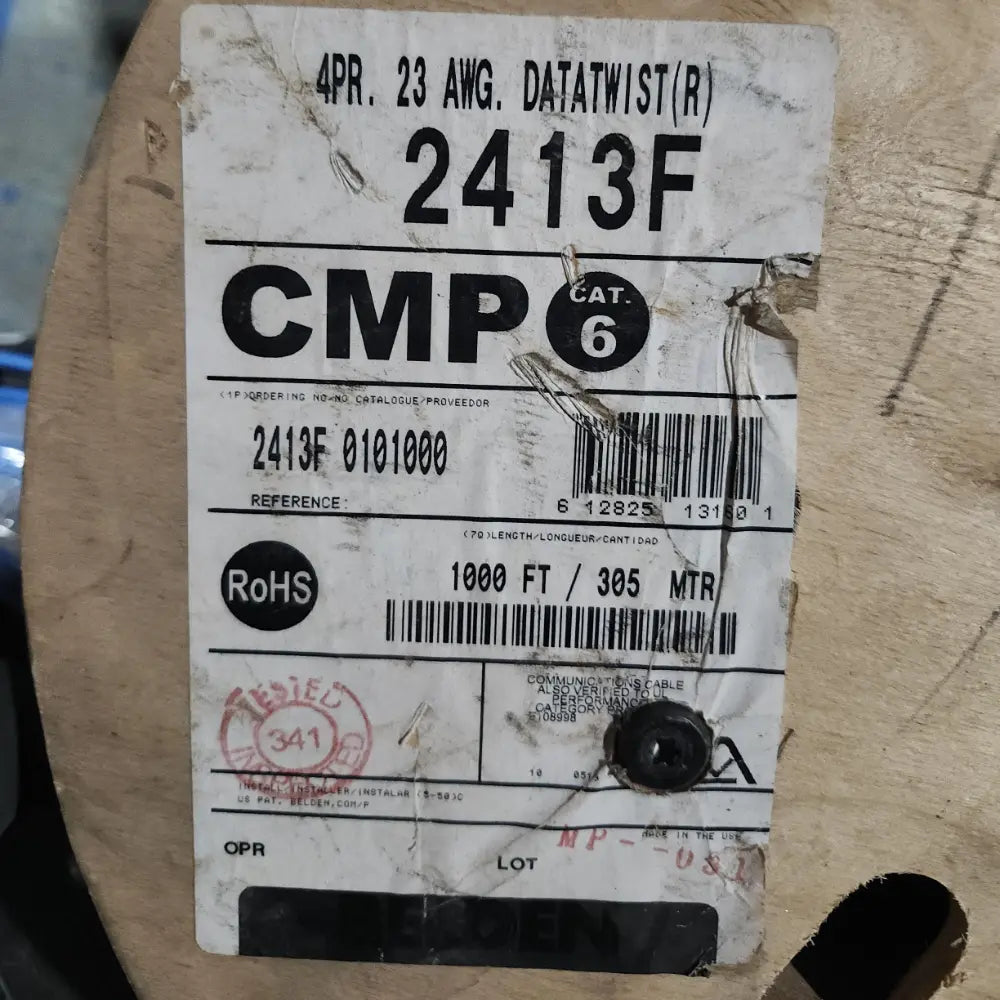

- Available Lengths: 1,000 feet (305 meters)
- Available Colors: Black, Blue, Green, Grey, Orange, Red, White, Yellow
Features and Applications
- Foil Shielding (F/UTP): Provides electromagnetic interference protection for noisy environments
- Plenum Rating (CMP): Certified for installation in air plenums and ducts per NFPA 262 and UL 910 standards
- Flamarrestor Jacket: Advanced flame-retardant PVC-LS (Low Smoke) material for enhanced safety
- PoE Support: Compatible with Power over Ethernet including PoE++ and all PoE variants
- High-Speed Data: Supports 10GBASE-T Ethernet, 1000BASE-TX, 100BASE-T, and surveillance systems
- Environmental Product Declaration: EPD available for sustainability documentation
Uses
This cable is specifically designed for premise horizontal cabling runs in commercial buildings, data centers, healthcare facilities, educational institutions, and government installations where plenum-rated materials are mandated by building codes. It excels in environments with high electromagnetic interference, making it ideal for industrial settings, manufacturing floors, and areas near heavy electrical equipment. The cable supports security camera systems (surveillance), VoIP telephony, wireless access point backhaul, and any application requiring reliable gigabit or 10-gigabit ethernet connectivity within temperature-controlled indoor spaces.
Construction
The 2413F features four pairs of 23 AWG solid bare copper conductors, each individually insulated with Fluorinated Ethylene Propylene (FEP) using industry-standard color coding (Blue/White-Blue, Orange/White-Orange, Green/White-Green, Brown/White-Brown). An overall foil shield consisting of polyester tape combined with B-Laminate (aluminum-polymer composite) provides 100% coverage with a 24 AWG solid tinned copper drainwire for effective grounding. The center member utilizes parallel X-splines of polyvinyl chloride (flame retardant) at 0.285 inches nominal diameter. The outer jacket is constructed from Flamarrestor PVC-LS compound, delivering both flame resistance and low smoke emission properties critical for life safety in occupied buildings.
Additional Relevant Information
- Life Cycle Status: Discontinued — no longer manufactured; succeeded by model 2413FS
- Compliance Certifications: IEEE 802.3af/at/bt (PoE Types 1-4), ISO/IEC 11801, ANSI/TIA-568.2-D Category 6, EU CE Mark, UKCA Mark, China RoHS II, REACH, WEEE Directive
- Safety Standards: NEC Article 802 (CMP), CPR/EU Eca classification, NEMA WC-66
- Non-Plenum Equivalent: Model number 2413F designates the plenum version; non-plenum alternatives exist in the product family
- Performance Note: Electrical values represent expected performance based on cable testing within typical Belden systems; values above 300 MHz are for engineering reference only
Additional Info & Specs
| Color | Black |
|---|---|
| Product Type | Ethernet networking cable |
| Condition | New |
| Brand | Belden |
| Package | Reel |
| Category | 6 |
| Spaces | Plenum |
| Gauge | 23 AWG |
| Jacket | Plenum-Rated |
| Insulation Material | PO+FEP |
| Frequency | 350 to 550MHz |
| No. of Pairs | 4 Twisted |
| Shielding | Foil Shielded U/UTP |
| Conductor | Solid |
| Conductor Material | Bare Copper |
| Certification Standards | UL Certified, ETL, TIA Compliant & TAA Compliant |
