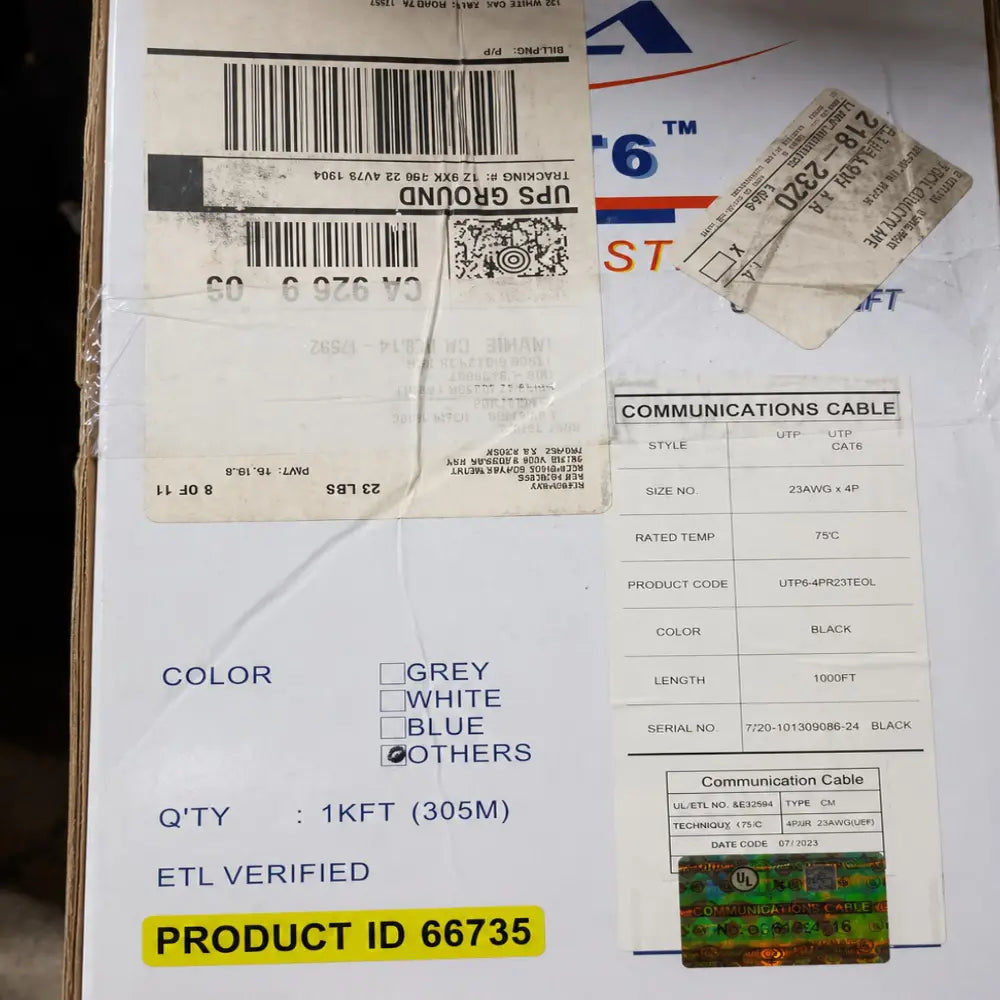

ABA Elite TUR2404N70XX CAT6 UTP 1000ft Solid Copper Cable
The ABA Elite TUR2404N70XX is a high-performance Category 6 unshielded twisted pair (UTP) riser cable engineered for structured cabling environments that demand reliable, high-speed data transmission. Built with 23 AWG solid bare copper conductors and a flame-retardant PVC (FRPVC) jacket, this 1000ft pull box delivers sweep-tested performance up to 400 MHz and is ETL and 3P verified to ANSI/TIA-568-C.2 and ISO/IEC 11801.
Key Features
- 23 AWG solid bare copper conductors for superior signal integrity
- Sweep frequency rated up to 400 MHz
- CMR (UL 1666) riser-rated flame retardant PVC jacket
- ETL & 3P verified to TIA-568-C.2 and ISO/IEC 11801
- RoHS2 and CE compliant
- 1000ft continuous pull box for long cable runs
Standards & Certifications
- Electrical Transmission: ANSI/TIA-568-C.2 (2009), ISO/IEC 11801 (Ed. 2.2), IEC 61156-5 (Ed. 2.0)
- Flame Test: UL 1666 (CMR)
- Material & Construction: UL 444, CSA 22.2 NO.214
- EU Directives: 2011/65/EC (RoHS2), 2006/95/EC (LVD)
- CE compliance since 2010.01.01
Physical Specifications
| Conductor Gauge | 23 AWG solid bare copper |
| Jacket Material | Flame retardant PVC (FRPVC) |
| Jacket Diameter | 5.4 ± 0.2 mm |
| Jacket Thickness | 0.50 ± 0.05 mm |
| Insulation Material | Polyolefin (PO) |
| Frequency Rating | Up to 400 MHz |
| Minimum Bending Radius | ≥ 4x overall diameter |
| Max Pulling Tension | ≤ 110 N |
| Temperature (Operation) | -20°C to 60°C |
| Temperature (Installation) | 0°C to 60°C |
| Temperature (Storage) | -20°C to 75°C |
| Voltage Rating | 300V |
Electrical Characteristics (at 20°C)
| Conductor DC Resistance | ≤ 9.38 Ω/100m |
| Resistance Unbalance | ≤ 5% |
| Dielectric Strength | 1.5 KV AC for 2s |
| Spark Test | 2.5 KV DC |
| Insulation Resistance | ≥ 5000 MΩ·m |
| Mutual Capacitance | ≤ 5.6 nF/100m |
| Capacitance Unbalance (pair-to-ground) | ≤ 330 pF/100m |
| AC Leakage Current | ≤ 10mA (1.5KV AC) |
Additional Info & Specs
| Part Number | TUR2404N70XX |
| Category | Cat6 UTP |
| Conductor | 23 AWG solid bare copper |
| Jacket Material | Flame retardant PVC (FRPVC) |
| Jacket Diameter | 5.4 ± 0.2 mm |
| Jacket Thickness | 0.50 ± 0.05 mm |
| Insulation Material | Polyolefin (PO) |
| Frequency Rating | Up to 400 MHz |
| Length | 1000 ft |
| Flame Rating | CMR (UL 1666) |
| Standards | ANSI/TIA-568-C.2, ISO/IEC 11801, IEC 61156-5 |
| Certifications | ETL, 3P, CE, RoHS2 |
| Conductor DC Resistance | ≤ 9.38 Ω/100m |
| Voltage Rating | 300V |
| Min Bending Radius | ≥ 4x overall diameter |
| Max Pulling Tension | ≤ 110 N |
| Operation Temperature | -20°C to 60°C |
