Experience premium networking performance with our professional-grade Cat6A plenum shielded cable, engineered for demanding commercial environments. This F/UTP shielded Ethernet cable delivers blazing-fast 10Gbps data transmission speeds across distances up to 328 feet, making it the ideal choice for hospitals, manufacturing facilities, banks, and high-performance data centers. The CMP plenum rating ensures fire safety compliance for air handling spaces, while the aluminum foil shielding provides superior EMI protection in electrically noisy environments.
Key Specifications
Cable Type: Cat6A F/UTP Shielded
Length: 1000ft (305m) on wooden reel
Conductor: 23AWG solid bare copper
Bandwidth: 650MHz
Data Rate: 10/100/1000/10000 Mbps
Jacket Rating: CMP Plenum
Jacket Diameter: 7.45mm ± 0.15mm
Part Number: FCMP6A
Advanced Features & Benefits
-
10-Gigabit Ready: Supports 10GBASE-T applications with certified 10Gbps performance
-
Pure Copper Construction: 100% oxygen-free bare copper ensures optimal signal integrity
-
Enhanced Shielding: Overall aluminum foil shield minimizes electromagnetic interference
-
Plenum Fire Rating: CMP certification for safe installation in air handling spaces
-
Extended Distance: Maintains performance up to 100 meters with improved alien crosstalk control
-
Professional Installation: Includes drain wire and rip cord for easier termination
Primary Applications
Network Infrastructure:
- Gigabit and 10-Gigabit Ethernet backbones
- Horizontal cable runs in commercial buildings
- Server room and data center installations
Industry-Specific Uses:
- Hospital and healthcare facility networks
- Manufacturing plant communications
- Banking and financial institution security systems
- Building automation systems (ANSI/TIA-862 compliant)
Protocol Support:
- IEEE 802.3 (Ethernet)
- IEEE 802.5 (Token Ring)
- 155 Mbps ATM
- ISDN and Voice applications
Construction Details
Wire Configuration: Four twisted pairs with PE cross filler
Shielding Type: F/UTP with aluminum mylar foil wrap
Conductor Size: 23AWG (0.58mm) solid copper

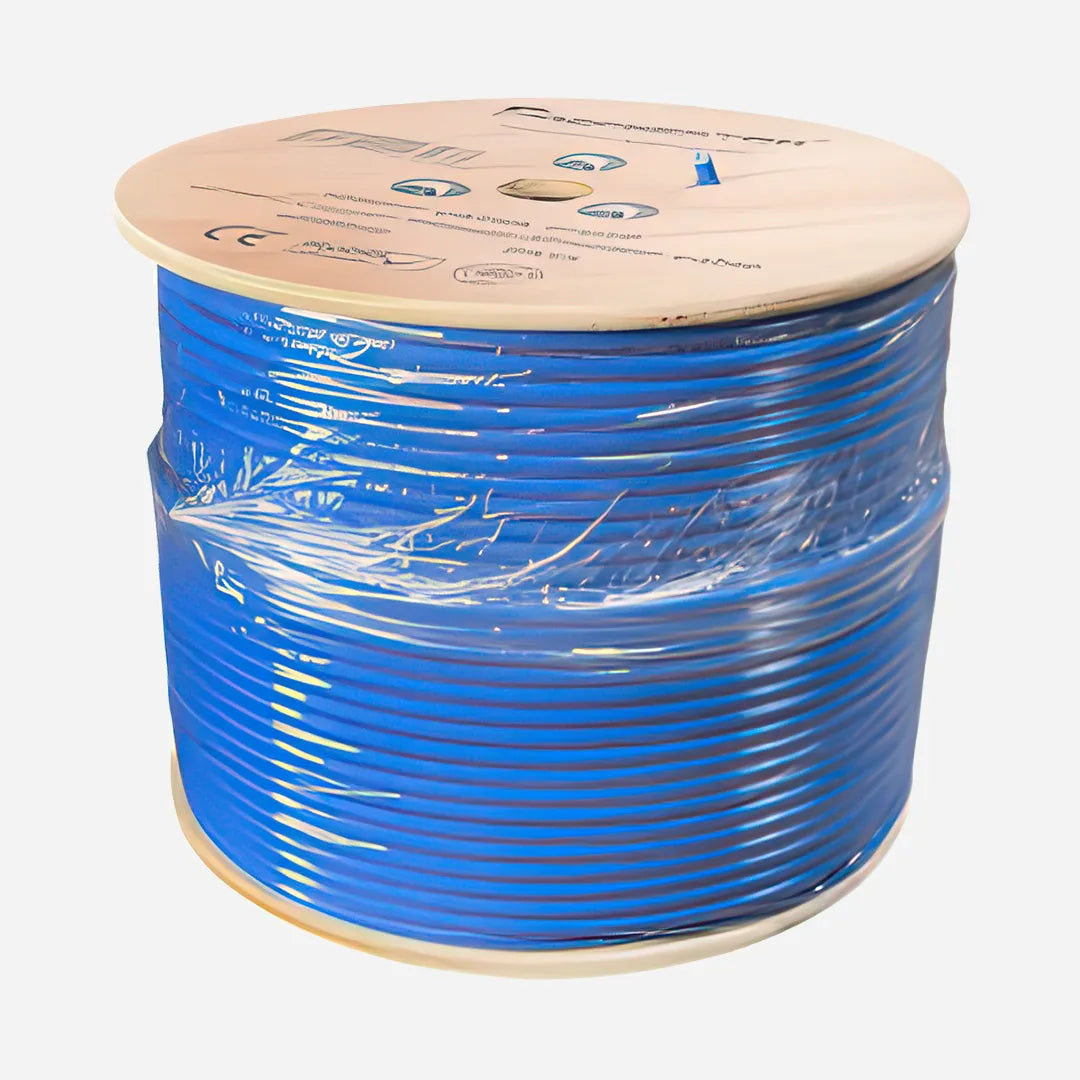

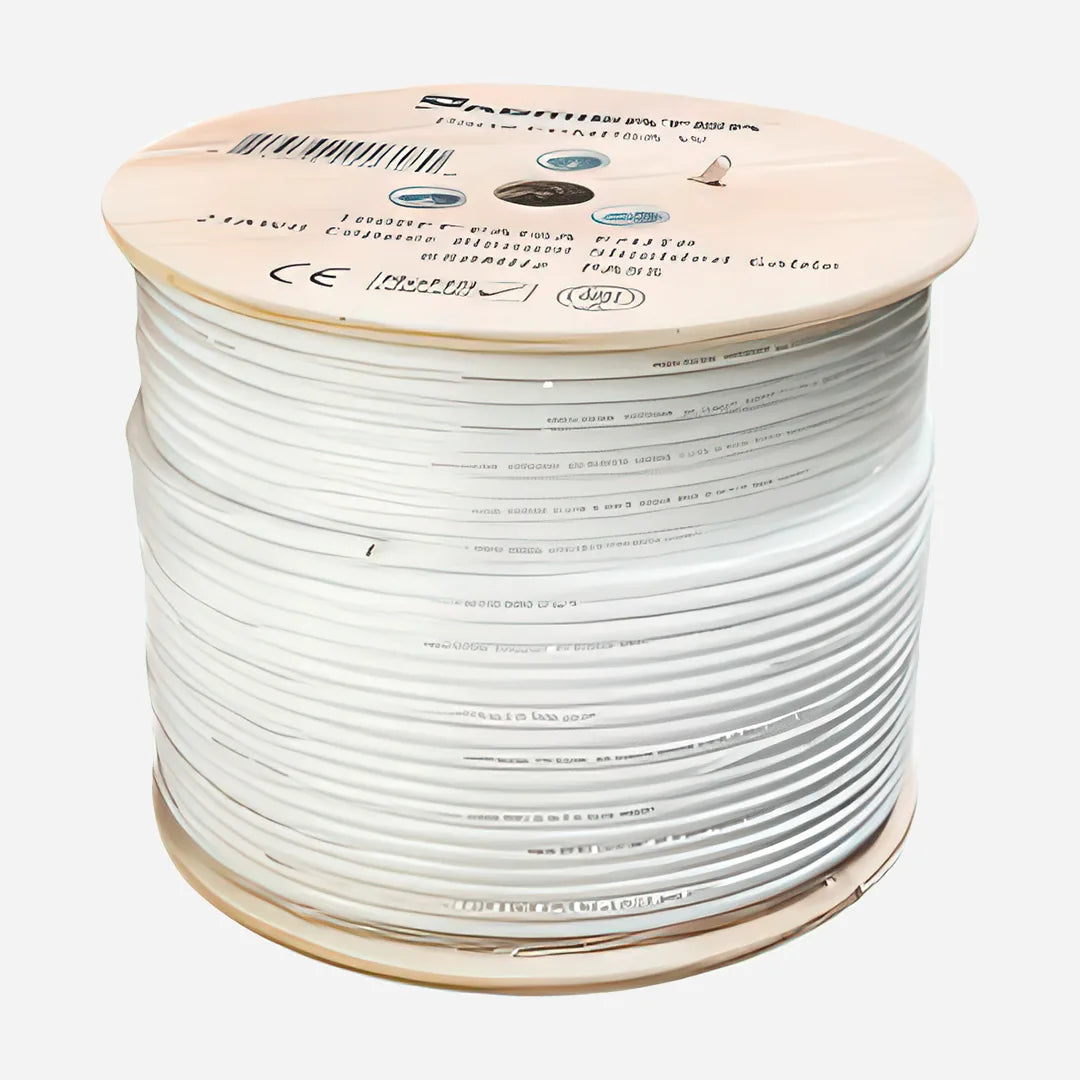

Packaging: Supplied on a wooden reel spool for easy deployment
Standards Compliance
- ANSI/TIA-568.2-D (Latest Category 6A standard)
- ANSI/TIA-862 Building Automation
- IEC 11801 Ed. 2.0 Class E
- UL 444 Listed
- NEC/CEC Type CMP (NFPA 262)
- RoHS Compliant (2011/65/EU)
- Fluke tested and certified
Installation Advantages
This solid copper cable is specifically designed for permanent installations and long-distance runs where maximum performance is critical. The CMP plenum jacket meets strict fire safety codes for installation in air handling spaces, while the shielded design protects against interference in electrically demanding environments.
Quality Assurance: Every cable undergoes rigorous 650MHz testing at 100 meters to ensure certified performance, allowing installers to guarantee job completion with confidence.
