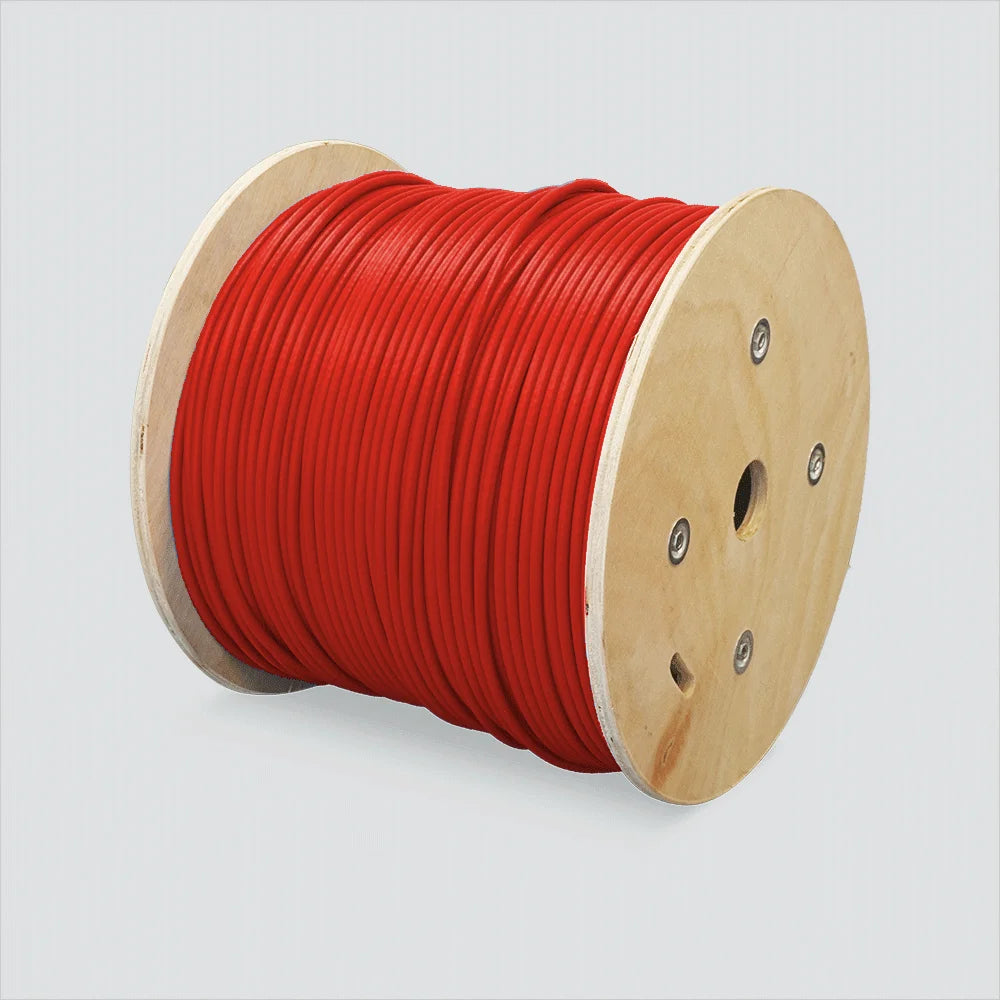

Cat6A Riser Wavenet 6A04URXX2 750MHz 10G UTP 23AWG 1000ft Solid Copper ETL Certified Ethernet Cable

The Wavenet Cat6A Riser Ethernet Cable (Model 6A04URXX2) is a high-performance, unshielded twisted pair cable engineered for 10 Gigabit network installations in commercial and residential buildings. Rated for riser (CMR) environments and verified to ANSI/TIA-568-C.2 standards, this 1000-foot spool delivers reliable, interference-resistant connectivity across demanding network infrastructures. It carries C(ETL)US verification and is fully RoHS compliant, making it a dependable choice for structured cabling projects where performance and safety compliance both matters.

Product Specifications

• Category: Cat6A UTP (Unshielded Twisted Pair)

• Part Number: 6A04URXX2

• Cable Length: 1000 ft per spool

• AWG: 23 AWG

• Frequency Rating: Up to 750 MHz

• Speed Rating: 10 Gigabit Ethernet (10G)

• DC Resistance: 9.38 Ω/100m Max. @ 20°C

• Resistance Unbalance: 5% Max. @ 20°C

• Capacitance Unbalance: 330 pF/100m Max. @ 20°C

• Mutual Capacitance: 5.6 nF/100m Max. @ 20°C

• Delay Skew: 45 nS/100m Max. @ 20°C

• Nominal Propagation: 69%

• Nominal Outer Diameter: 0.30 in ± 0.008 in

• Nominal Weight: 51 lbs per spool

• Installation Temperature: 0°C to +75°C

• Operating Temperature: -20°C to +75°C

• Tensile Strength: ≥ 13.8 MPa (before aging)

• Elongation: ≥ 100% (before aging); ≥ 50% after aging

• Aging Condition: 100°C × 168 hours; retains ≥ 85% of unaged tensile strength

Features and Applications

This cable supports full 10 Gigabit Ethernet performance across its entire 750 MHz bandwidth, meeting and exceeding the ANSI/TIA-568-C.2 specification for Category 6A cabling. The four twisted pairs are color-coded for easy identification during termination: Pair 1 (White/Blue & Blue), Pair 2 (White/Orange & Orange), Pair 3 (White/Green & Green), and Pair 4 (White/Brown & Brown). A built-in ripcord simplifies jacket removal during installation, and an internal separator maintains pair geometry to reduce crosstalk. The flame-retardant PVC jacket meets CMR (riser) and FT4 fire ratings, making it suitable for vertical runs between floors without conduit. Available jacket colors include Blue, White, Grey, Black, Yellow, Red, and Green.

Uses

This cable is well-suited for structured cabling installations in office buildings, data centers, schools, hospitals, and multi-floor commercial facilities. It handles backbone and horizontal runs in riser shafts where fire-rated cable is required by code. Network administrators and IT contractors use it for patch panel terminations, switch-to-switch connections, and high-density server room wiring where 10G speeds are needed. Its 1000-foot spool length makes it practical for large-scale deployments where cutting to length on-site is standard practice.

Construction

The conductor is solid bare copper — not copper-clad aluminum — which ensures lower resistance, better signal integrity, and longer service life. Each conductor is insulated with High-Density Polyethylene (HDPE), which offers excellent dielectric properties and helps maintain consistent electrical performance. The four pairs are separated by an internal cross-web separator that keeps pairs organized and reduces alien crosstalk between adjacent cables. The outer jacket is made from flame-retardant PVC with an average wall thickness of 0.022 in., providing mechanical protection and meeting CMR/FT4 fire safety requirements. The jacket includes a ripcord for clean, tool-free stripping during termination.

Additional Information

The cable is marked along its length with: CATEGORY 6A 10G 23AWG 4PR UTP CMR FT4 75C C(ETL)US VERIFIED ANSI/TIA-568-C.2, allowing easy identification after installation. Electrical performance has been tested and documented across the full frequency range from 1 MHz to 750 MHz, with NEXT, PS-NEXT, ELFEXT, PS-ELFEXT, PS-ANEXT, and PS-AELFEXT values all meeting or exceeding TIA-568-C.2 minimums.
