Cat6 Plenum Wavenet 6E04FPXX2N 600MHz F/UTP 23AWG 1000ft Solid Copper Ethernet Cable

The Cat6 Plenum Wavenet 6E04FPXX2N is a shielded twisted-pair Ethernet cable engineered for installation in plenum air handling spaces where fire safety and low smoke emission are mandated by building codes. Supporting bandwidth up to 600MHz and constructed with solid bare copper conductors, it delivers reliable network performance for high-density commercial environments while meeting stringent flame resistance and smoke density requirements.

Product Specifications
This cable contains four 23AWG solid bare copper conductors with an overall diameter of 0.045 inches. The assembly diameter measures 0.2559 inches with a tolerance of plus or minus 0.0078 inches, and the nominal outer diameter including the jacket is 0.311 inches with a tolerance of plus or minus 0.008 inches. The nominal weight is 49 pounds per 1000-foot reel. Electrical characteristics include a maximum DC resistance of 9.38 ohms per 100 meters at 20 degrees Celsius, resistance unbalance not exceeding 5 percent, and capacitance unbalance capped at 330 picofarads per 100 meters. Mutual capacitance reaches a maximum of 5.6 nano-farads per 100 meters, delay skew is limited to 45 nanoseconds per 100 meters, and the nominal velocity of propagation is 69 percent. Attenuation, return loss, near-end crosstalk, power-sum NEXT, ELFEXT, and propagation delay values are specified across frequencies from 1MHz to 600MHz.

Features and Applications
The cable's aluminum foil shielding reduces electromagnetic interference in high-noise environments. Its low smoke flame-retardant PVC jacket carries CMP and FT6 plenum ratings, permitting installation in ceiling cavities and raised floors that serve as air circulation pathways. A ripcord assists with jacket stripping during termination, and an internal separator preserves pair geometry for stable electrical characteristics over the full 600MHz range. Standard TIA color coding on the pairs speeds up identification and termination time.

Uses

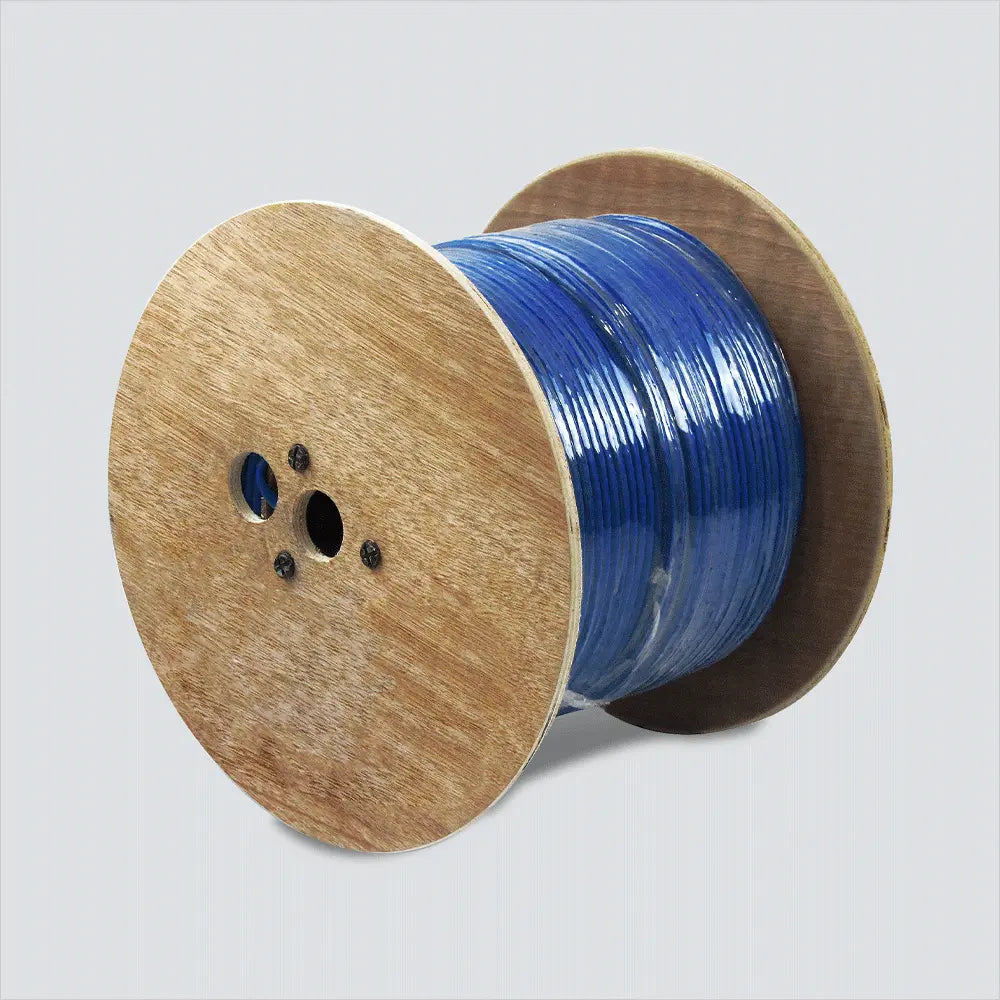

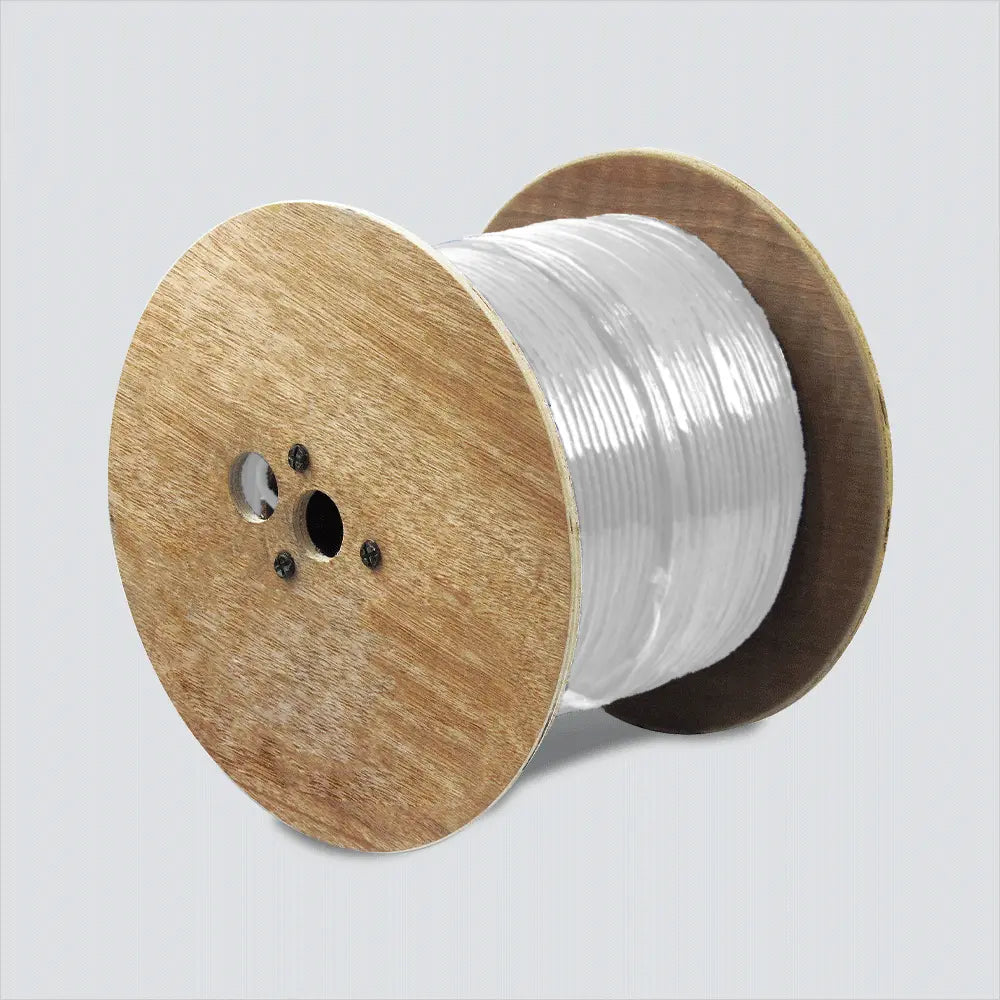

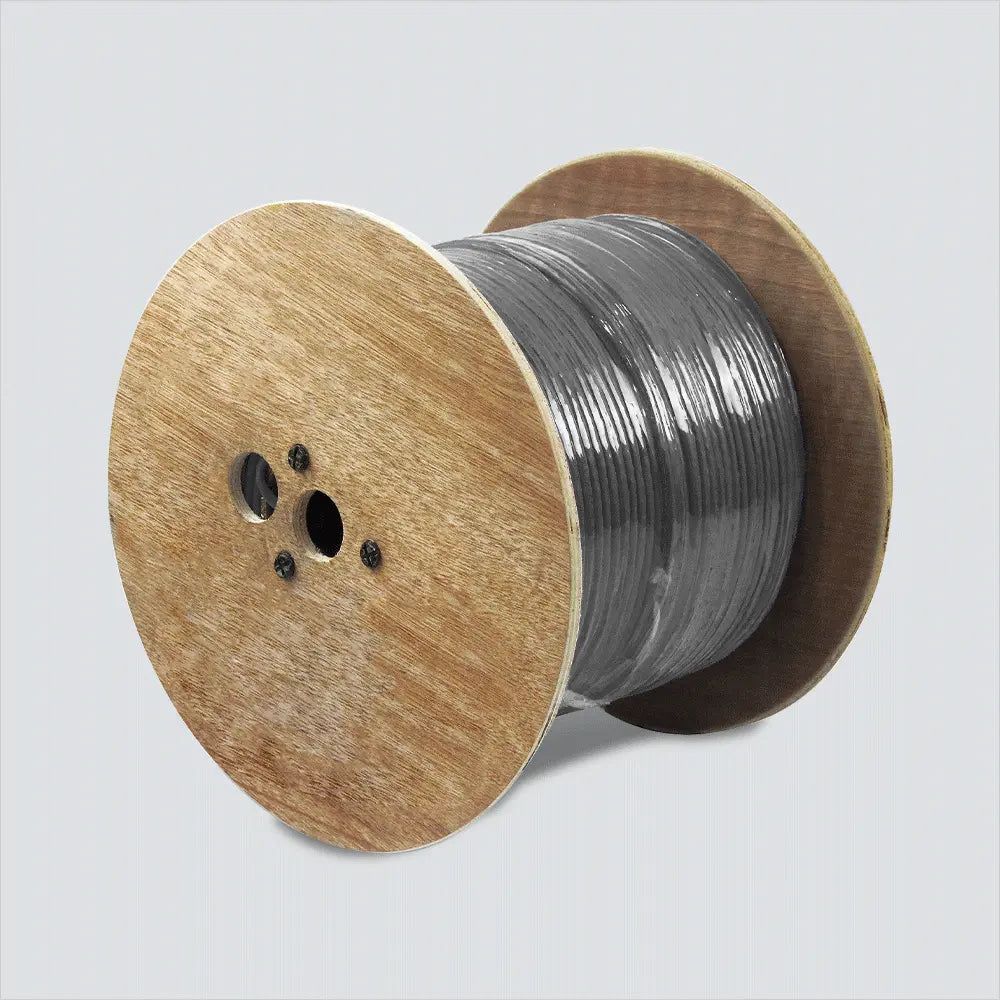

This cable is designed for network installations in commercial office buildings, educational campuses, healthcare facilities, and government structures where local codes require plenum-rated cabling. It supports Gigabit Ethernet and higher-speed protocols in horizontal and backbone runs routed through ventilation ducts, drop ceilings, and other environmental air spaces. The 1000-foot reel format accommodates large-scale projects, and the blue, white, and grey jacket options allow for network segmentation or aesthetic coordination with existing infrastructure.

Construction
The core is built from four 23AWG solid bare copper conductors twisted into pairs around a central separator that limits crosstalk. Each conductor receives an FEP insulation layer measuring 0.0085 inches thick on average. An aluminum foil shield wraps the core assembly with a longitudinal drain wire for grounding continuity. The outer jacket consists of low smoke flame-retardant PVC with an average wall thickness of 0.0197 inches. Mechanical testing confirms tensile strength of at least 13.8 MPa before aging, with retained strength of at least 85 percent of unaged values after 168 hours at 100 degrees Celsius. Elongation tests show at least 100 percent before aging and at least 50 percent of unaged values following thermal conditioning.

Additional relevant information
Installation temperature range spans from 0 degrees to 75 degrees Celsius, while the operating temperature range extends from negative 20 degrees to 75 degrees Celsius. The cable marking includes the Category 6 rating, 600MHz bandwidth, 23AWG gauge, four-pair count, FTP shielding type, CMP plenum rating, 75-degree temperature rating, FT6 flame test designation, C(ETL)US verification marks, and ANSI/TIA-568-C.2 compliance reference.
