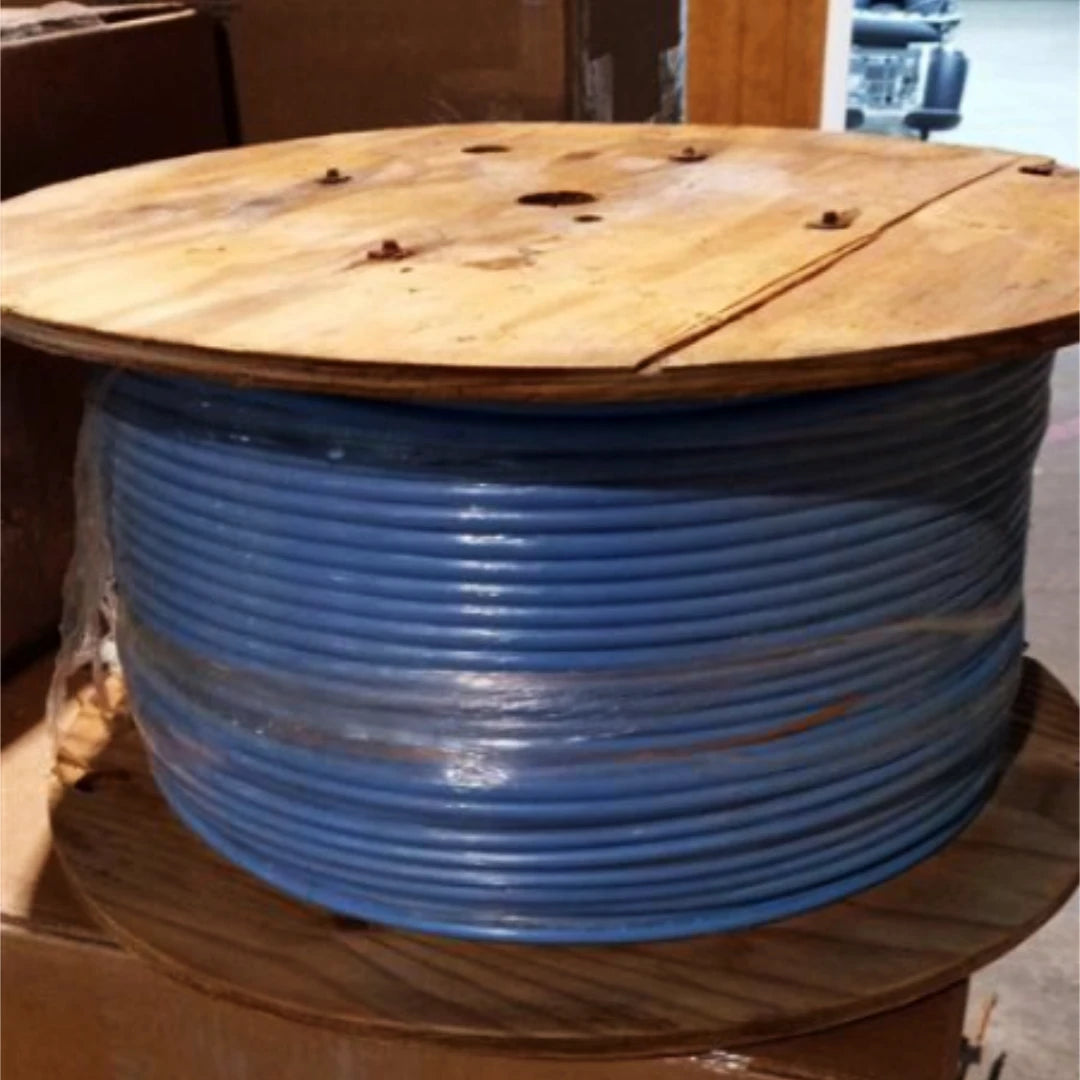

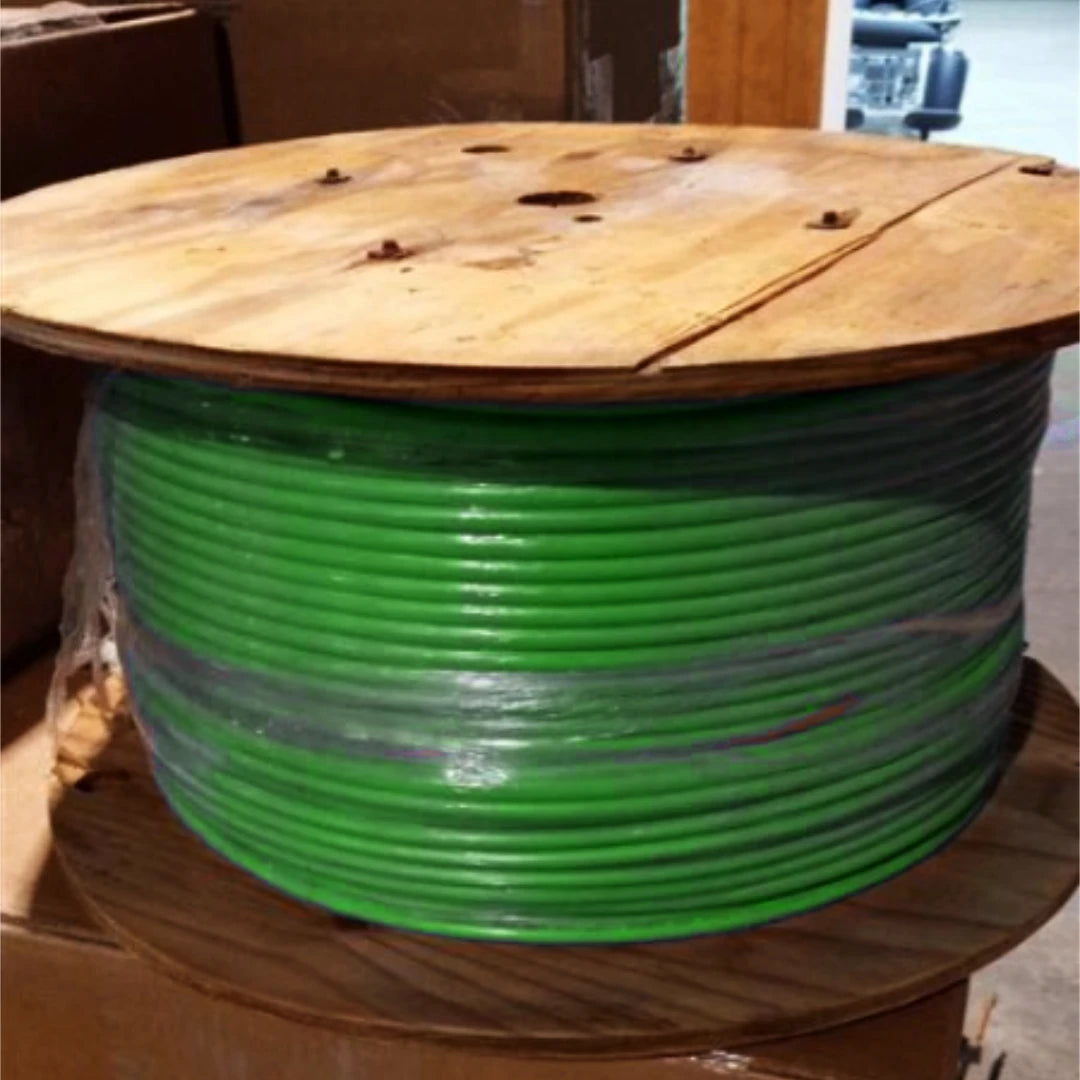

Remee | 6UB234UTP CAT6A Plenum 1000ft 500MHz Solid Copper Ethernet Cable

The Remee 6UB234UTP is a Category 6A augmented plenum Ethernet cable rated to 500 MHz and built for demanding commercial and enterprise network installations. Manufactured in the USA and ETL Listed for guaranteed performance, this cable is engineered to handle 10 Gigabit Ethernet and a wide range of other high-speed data and audio/video applications across horizontal runs in plenum-rated environments. If you need a cable that checks every compliance box without cutting corners on performance, this is a solid choice.

Product Specifications

Features and Applications

What sets this cable apart from the average Cat6A option is its full 500 MHz bandwidth rating — double the 250 MHz minimum required by the Cat6A standard. That extra headroom means the cable isn't just barely meeting spec; it's performing well above it, which translates to more reliable signal integrity in real-world installations where conditions aren't always ideal.

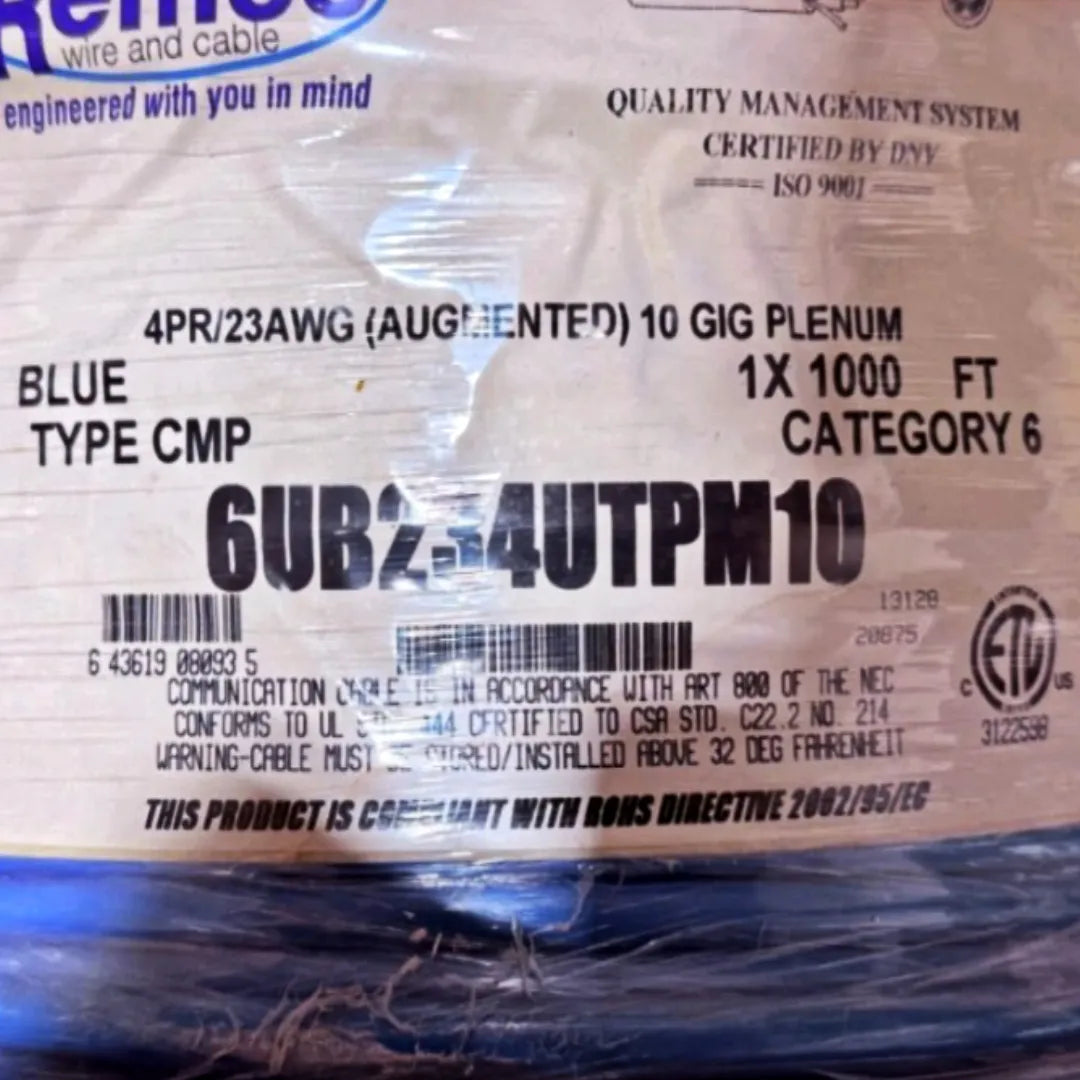

The ETL Listing is third-party verified performance, not just a manufacturer claim. Every reel is backed by independent testing to confirm it meets ANSI/TIA/EIA 568C.2 Category 6A requirements. The cable's surface print reads: 3122598 CAT6A (AUGMENTED) 10GIG 4PR 23AWG C(ETL)US CMP FT6 MADE IN USA — so compliance is clearly marked right on the jacket for inspectors and installers alike.

The CMP plenum rating and FT6 flame classification make it fully approved for installation in air-handling ceiling spaces and other plenum areas where fire codes require low-smoke, flame-retardant materials.

Uses

This cable is well-suited for:

• 10 Gigabit Ethernet (10GBASE-T) horizontal runs in enterprise, healthcare, education, and government facilities
• Plenum and air-handling spaces where CMP-rated cable is required by the National Electric Code (Article 800)
• 100BASE-TX and 100BaseVG AnyLAN legacy and mixed-speed network environments
• ATM networks at 155 Mbps and 622 Mbps
• NTSC/PAL component and composite video distribution over structured cabling
• AES/EBU digital audio and AES51 professional audio-over-IP applications
• RS-422 serial data communication runs

Construction

Each conductor is 23 AWG solid bare copper, insulated with FEP for stable electrical performance across the full 500 MHz frequency range. Two color-coded insulated conductors are twisted together to form a pair, and all four pairs are assembled around a central pair separator that keeps them physically isolated from each other throughout the cable length. The color coding follows a standard scheme: Pair 1 is Blue with White, Pair 2 is Orange with White, Pair 3 is Green with White, and Pair 4 is Brown with White — making identification fast and straightforward during termination.

The assembled core is then jacketed with a low-smoke, flame-retardant PVC compound that meets CMP plenum requirements. The nominal outer diameter comes in at 0.320 in, and the cable weighs 64 lb per 1,000 ft.

Compliance and Standards

The Remee 6UB234UTP meets or exceeds the following standards and certifications:

• Data Standard: ANSI/TIA/EIA 568C.2 Category 6A, ISO/IEC 11801:2002 Category 6A
• Fire / Plenum: CMP Rating, FT6
• NEC Compliance: National Electric Code – Article 800
• Third-Party Listing: C(ETL)US CMP — independently verified Category 6A performance
• Origin: Made in the USA
