CommScope 1071E Systimax CAT6 Riser 1000ft UTP Purple Ethernet Cable

CommScope 1071E SYSTIMAX CAT6 Riser 1000ft UTP Purple Ethernet Cable Power dependable Gigabit networks with CommScope’s 1071E from the SYSTIMAX GigaSPEED XL line. This CAT6 U/UTP cable uses solid bare copper conductors and a polyolefin bisector to maintain pair geometry, reduce crosstalk, and deliver stable performance up to 300 MHz. Supplied in a 1000 ft WE TOTE box, it features a durable purple PVC jacket and 23 AWG conductors for clean terminations and consistent results in horizontal runs.

Product Specifications

• Brand/Portfolio: SYSTIMAX GigaSPEED XL
• Model: 1071E PRP C6 4/23 U/UTP W1000
• Category/Type: CAT6, U/UTP, horizontal
• Conductor: Solid bare copper, 23 AWG (8 conductors/4 pairs)
• Separator: Polyolefin bisector
• Jacket: PVC, purple (non‑plenum)

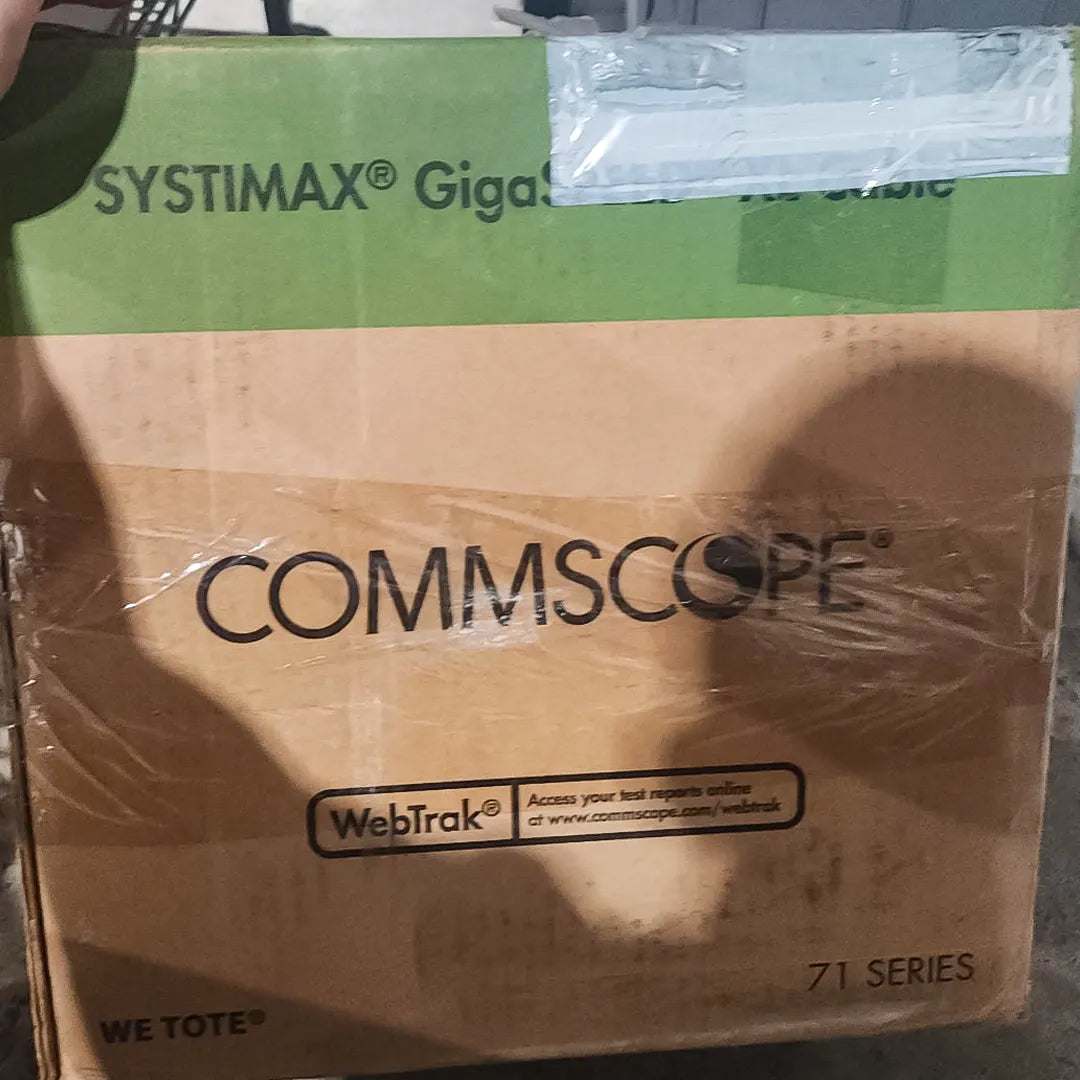

• Length: 1000 ft (304.8 m), WE TOTE box
• Nominal OD: 0.232 in (5.893 mm)
• Jacket thickness: 0.022 in (0.559 mm)
• Diameter over insulated conductor: 0.041 in (1.029 mm)
• Cable weight: 25.6 lb/kft (38.097 kg/km)
• Max pulling tension: 25 lb (11.34 kg)

Electrical and Performance

• Operating frequency: up to 300 MHz
• NVP: 69%
• DC resistance (max): 7.61 Ω/100 m (2.32 Ω/100 ft)
• Resistance unbalance (max): 5%
• Dielectric strength: 1500 Vac / 2500 Vdc
• Mutual capacitance: 5.6 nF/100 m @ 1 kHz
• Operating voltage (max): 80 V
• Remote powering: Complies with IEEE 802.3bt Type 4 when installed per ISO/IEC 14763‑2, EN 50174‑1/‑2, or TIA TSB‑184‑A

Standards and Ratings

• Transmission standards: ANSI/TIA‑568.2‑D, ISO/IEC 11801 Class E, CENELEC EN 50288‑6‑1
• Environmental space: Non‑plenum (CMG/CMR flame test)
• Temperature: Install 0°C to +60°C; operate −20°C to +60°C; UL rating 75°C
• Regional availability: North America, LATAM, APAC (not available in EMEA)

Key Features

• Consistent CAT6 channel performance with solid copper 23 AWG conductors
• Bisector design to help control pair‑to‑pair interaction and crosstalk
• PoE/PoE+/4PPoE readiness per IEEE 802.3bt Type 4 guidelines
• Practical 1000 ft WE TOTE packaging for smooth payout and faster pulls
• Purple jacket for easy identification and rack/patch discipline

Applications

• 10/100/1000BASE‑T Ethernet horizontal cabling to the workstation
• VoIP, IP cameras, WAPs, and building systems within CAT6/PoE limits
• Data, voice, and video over IP in offices, classrooms, healthcare, and hospitality

Typical Uses

• Workstation drops, conference rooms, open offices
• Access layer connections for edge switches and small devices
• Unified communications, collaboration, and streaming on enterprise LANs

Construction Details

• 4 balanced twisted pairs with polyolefin insulation
• Polyolefin bisector maintains geometry and separation
• PVC outer jacket (purple), non‑plenum rated
• Solid 23 AWG copper for stable terminations and low DC resistance
