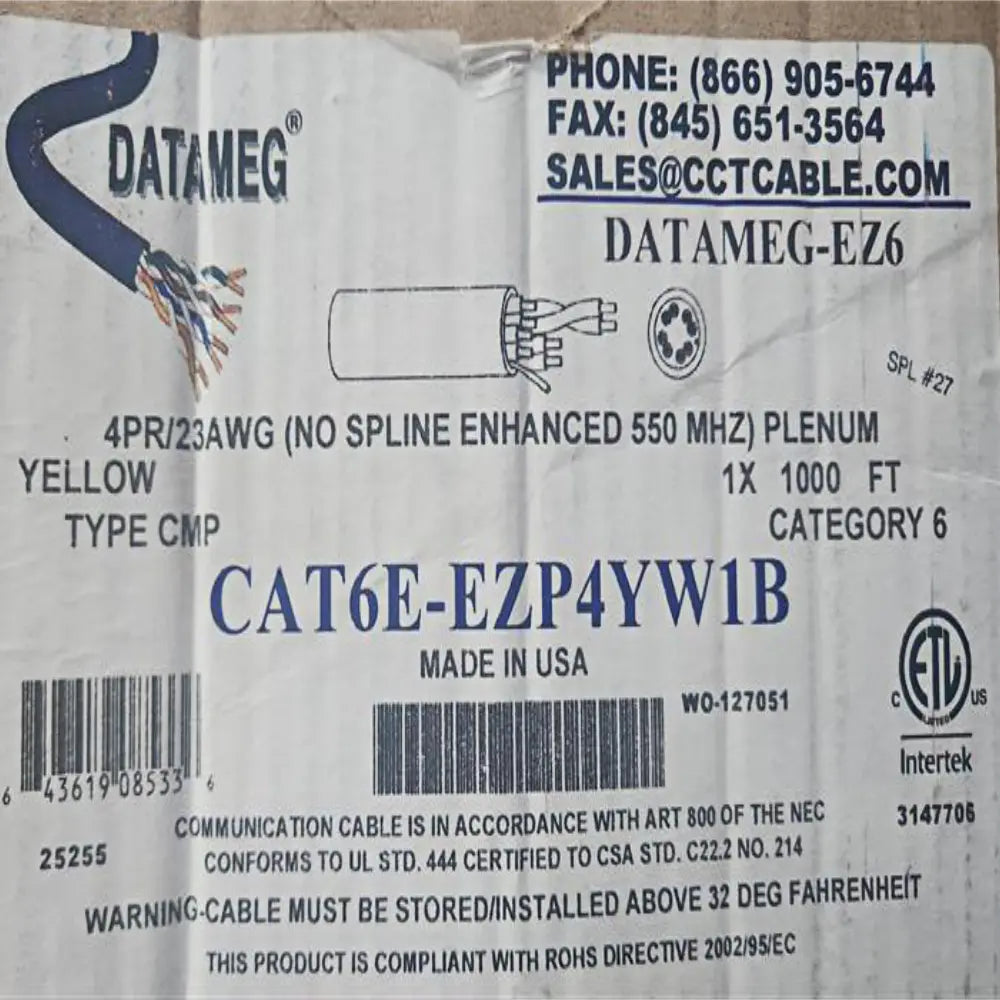

Cat6E Plenum CCTCable EZP4YWIB 550MHz No Spline UTP 23AWG 1000ft ETL Certified Solid Copper Yellow Ethernet Cable

The Cat6E Plenum CCTCable EZP4YWIB DataMeg is a Category 6 horizontal Ethernet cable built for networking installations that need dependable data transmission and plenum-rated safety. Manufactured in the USA by Convergent Connectivity Technologies, this 1000-foot bulk cable uses a splineless construction that simplifies installation while preserving signal integrity across extended bandwidth testing up to 550 MHz. It is purpose-built for environments where low smoke and flame-retardant properties are mandated, making it a strong fit for commercial and institutional building infrastructure.

Product Specifications
This cable uses 23 AWG solid bare copper conductors arranged in four unshielded twisted pairs. The nominal overall diameter is 0.200 inches, and the cable weighs approximately 29 pounds per 1,000 feet. Key electrical properties include a velocity of propagation of 72%, nominal mutual capacitance of 14 pF/ft, and maximum capacitance unbalance of 330 pF/ft. Maximum conductor DC resistance is 28.6 ohms per 1,000 feet, with DC resistance unbalance held to 5% or less. Delay skew is capped at 45 nanoseconds per 100 meters. Characteristic impedance is rated at 100 ohms, with tolerances of ±15% from 0.772–100 MHz, ±22% from 101–250 MHz, and ±32% from 201–550 MHz.

Features and Applications
The splineless design removes the traditional internal separator, allowing more flexible routing and easier termination without giving up Category 6 performance. It supports all standard Category 6 applications including Ethernet 10BASE-TX, 100BASE-VG, and 155 ATM. The cable is especially well suited for high-bandwidth uses such as 622 ATM, Wideband video distribution, and Gigabit Ethernet 1000BASE-T. It also provides headroom for emerging technologies with anticipated data rates approaching 3.2 Gbps, offering some future-proofing as network demands grow.

Uses
This plenum-rated cable is designed for installation in air handling spaces, drop ceilings, and raised floors where building codes require CMP-rated communications cabling. It is commonly deployed in commercial office buildings, educational campuses, healthcare facilities, and data centers running horizontal network distribution. The 1000-foot easy pull box packaging supports efficient deployment on large-scale structured cabling jobs, helping reduce installation time and material waste for professional low-voltage and IT infrastructure contractors.

Construction
The conductor core is made from 23 AWG solid bare copper, selected for excellent conductivity and long-term reliability in permanent link installations. The four twisted pairs are enclosed in a low smoke flame retardant polyvinyl chloride jacket that meets strict plenum safety requirements. Pair insulation follows standard color coding: blue with white/blue, orange with white/orange, green with white/green, and brown with white/brown. The cable allows a minimum bend radius of 1.0 inch, which helps protect internal pair geometry during pulls through conduit and cable trays. The overall build balances electrical consistency with physical durability for horizontal runs.

Additional relevant information
The cable carries NEC Article 800 approval and a UL 910/CMP FT6 plenum rating. It is ETL electrically verified to ANSI/TIA/EIA 568C.2 Category 6 standards and holds C(ETL)US certification. The product is RoHS compliant, restricting hazardous substances in its materials. Temperature ratings are 0°C to 50°C during installation and -2°C to 60°C during operation.
