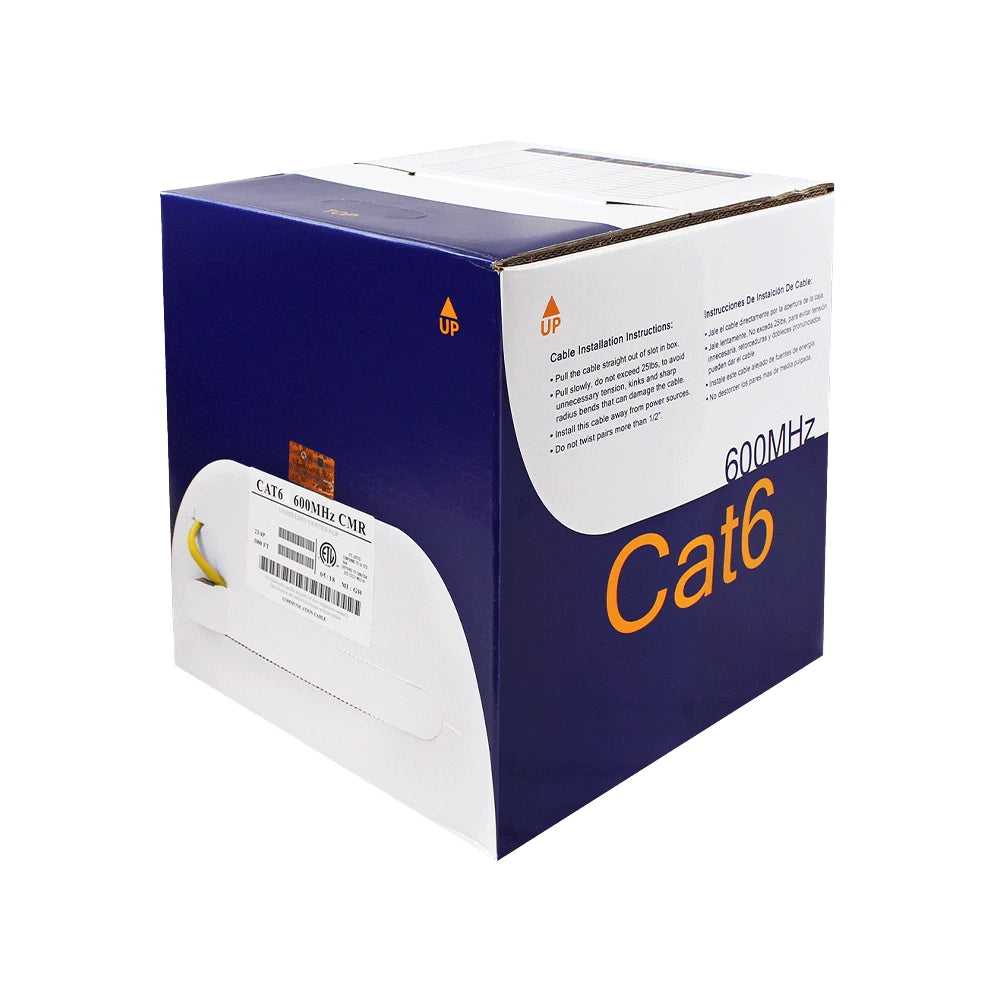

Cat6 Riser Wavenet 6E04URXX4N 600MHz UTP 23AWG 1000ft Solid Copper Ethernet Cable

This Wavenet Cat6 riser-rated Ethernet cable delivers reliable high-speed data performance for vertical installations in residential and commercial buildings. Designed to meet CMR riser standards, it supports bandwidth up to 600MHz while maintaining signal integrity across long runs, making it a practical choice for structured cabling systems that need code compliance without the cost of plenum-rated alternatives.

Product Specifications
The cable features 23 AWG solid bare copper conductors arranged in four precisely twisted pairs with high-density polyethylene insulation. It is C(ETL) listed for FT4 and CMR, and C(ETL)US verified to ANSI/TIA-568-C.2. Electrical characteristics include DC resistance of 9.38 ohms per 100 meters maximum at 20 degrees Celsius, mutual capacitance of 5.6 nanofarads per 100 meters, delay skew under 45 nanoseconds per 100 meters, and a nominal velocity of propagation of 67 percent. The flame-retardant PVC jacket has an average wall thickness of 0.023 inches with a nominal outer diameter of 0.244 inches. Each one-thousand-foot spool weighs approximately 26 pounds. Two part numbers are available: 6E04URXX3N, packaged in rib format, and 6E04URXX4N on Reelex II.

Features and Applications
With 600MHz bandwidth capacity and an unshielded twisted pair design, this cable controls crosstalk through precise pair geometry rather than metallic shielding, keeping installation simple and termination straightforward. An internal separator maintains pair spacing and reduces interference, while the RoHS-compliant build supports Power over Ethernet deployments. Multiple jacket colors are offered across both part numbers, including black, blue, green, grey, red, purple, white, and yellow, with 6E04URXX4N adding a red-orange option for easier circuit identification and cable tracing.

Uses
This riser-rated cable is engineered for vertical shaft installations between floors in multi-story office buildings, apartment complexes, schools, and similar structures. It serves as backbone cabling connecting telecommunications rooms to work areas, and it supports IP security camera networks, VoIP telephone systems, wireless access point uplinks, and standard Gigabit Ethernet drops. The CMR rating specifically addresses flame spread and smoke generation in riser spaces, fitting wherever local building codes require rated infrastructure for floor-to-floor runs.

Construction
Wavenet constructs this cable with solid bare copper conductors for stable electrical performance over distance, avoiding the signal degradation common with copper-clad aluminum alternatives. Each conductor is insulated with HDPE, and an internal filler spline separates the pairs to preserve crosstalk performance. The outer jacket uses flame-retardant PVC engineered to FT4 standards, tested to withstand 100 degrees Celsius aging for 168 hours while retaining at least 85 percent of original tensile strength and 50 percent elongation. A rip cord sits beneath the jacket for clean stripping without damaging the pairs.

Additional relevant information
Cable marking reads: XXXX CATEGORY 6 600MHZ 23AWG 4PR UTP CMR 75C FT4 C(ETL)US VERIFIED (ETL) ANSI/TIA-568-C.2 followed by the footage count. Insulation colors follow standard TIA pair assignments: white-blue with blue, white-orange with orange, white-green with green, and white-brown with brown. Installation temperature ranges from 0 to 75 degrees Celsius, with an approved operating range of negative 20 to 75 degrees Celsius.
