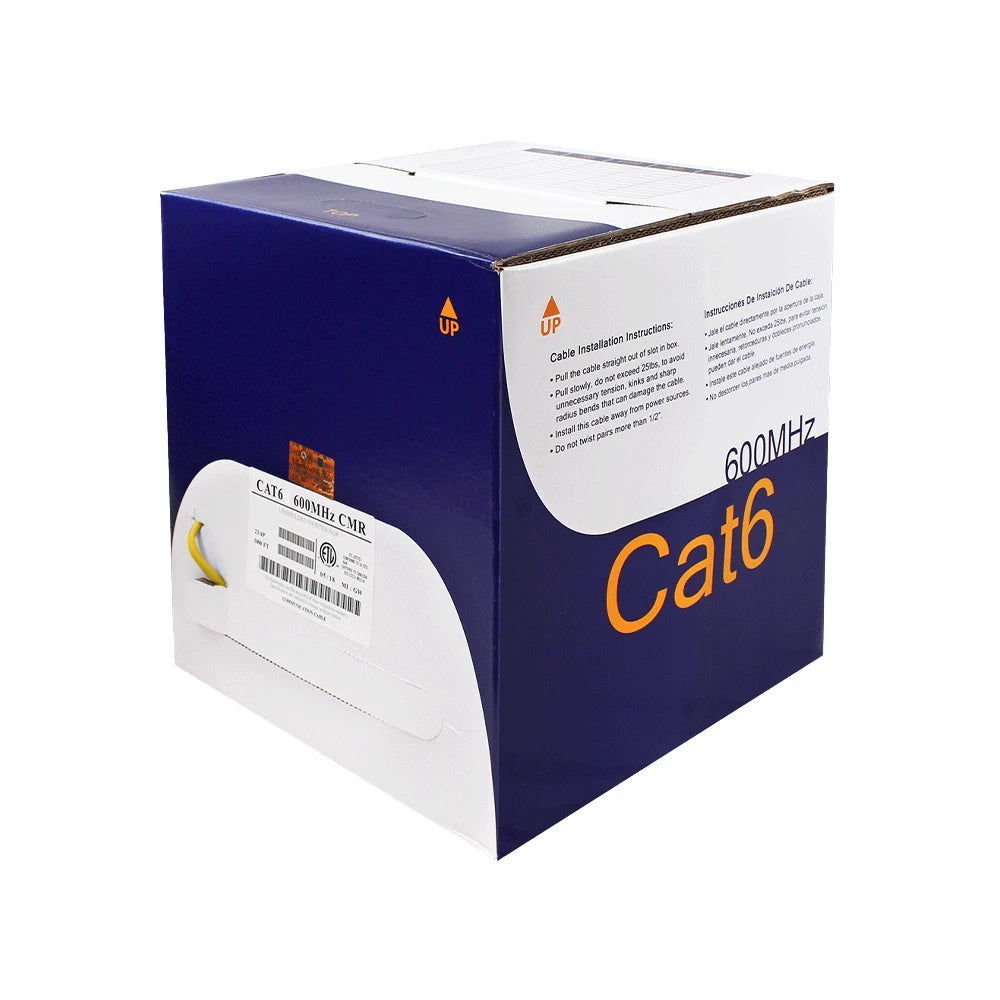

Cat6 Riser Wavenet 6E04URXX3N 600MHz UTP 23AWG 1000ft Solid Copper Ethernet Cable RIB (Reel-in-Box)

This Wavenet Cat6 riser-rated Ethernet cable comes on a convenient RIB (Reel-in-Box) spool designed for controlled dispensing during vertical installations. Built to CMR riser standards with verified industry-standard performance, it delivers reliable high-speed connectivity for structured cabling projects that need code-compliant backbone infrastructure without the premium cost of plenum-rated materials.

Product Specifications
The cable uses 23 AWG solid bare copper conductors in four twisted pairs insulated with high-density polyethylene. It carries C(ETL) listing for FT4 and CMR, plus C(ETL)US verification to ANSI/TIA-568-C.2. Key electrical values include maximum DC resistance of 9.38 ohms per 100 meters at 20 degrees Celsius, mutual capacitance of 5.6 nanofarads per 100 meters, delay skew capped at 45 nanoseconds per 100 meters, and nominal velocity of propagation at 67 percent. The flame-retardant PVC jacket measures 0.023 inches average wall thickness with a nominal outer diameter of 0.244 inches. This one-thousand-foot RIB spool has an approximate nominal weight of 26 pounds. Part number 6E04URXX3N is available in eight jacket colors: black, blue, green, grey, red, purple, white, and yellow.

Features and Applications
The unshielded twisted pair design manages crosstalk via precise pair geometry rather than metallic shielding, simplifying termination and reducing installation time. An internal separator spline maintains consistent pair spacing to preserve signal integrity, while RoHS compliance ensures compatibility with environmentally sensitive projects. Eight jacket color options support circuit identification and organized cable management during complex installs.

Uses
This riser-rated cable is intended for floor-to-floor runs in office buildings, condominiums, university dormitories, hotels, and municipal facilities where building codes mandate rated cabling in vertical shafts. It works well as backbone cabling between telecommunications rooms and distribution points, and it supports standard Gigabit Ethernet networks, IP surveillance systems, VoIP phone deployments, and wireless access point connections. The solid copper construction makes it particularly suitable for permanent links where signal consistency over distance matters more than flexibility.

Construction
Wavenet builds this cable with solid bare copper conductors chosen for stable long-distance performance rather than short-patch flexibility. Each conductor is individually insulated with HDPE, and the pairs are separated by an internal spline that reduces crosstalk without adding shielding weight. The outer jacket uses PVC engineered to FT4 flame-spread specifications, tested to endure 100 degrees Celsius aging for 168 hours while retaining at least 85 percent of its original tensile strength and 50 percent elongation. A ripcord runs beneath the jacket to enable clean, nick-free stripping during connector termination.

Additional relevant information
Cable markings include: XXXX CATEGORY 6 600MHZ 23AWG 4PR UTP CMR 75C FT4 C(ETL)US VERIFIED (ETL) ANSI/TIA-568-C.2 followed by the footage count. Standard TIA pair color codes apply: white-blue with blue, white-orange with orange, white-green with green, and white-brown with brown. Safe installation temperatures range from 0 to 75 degrees Celsius, with an operating range from negative 20 to 75 degrees Celsius.
