Cat6 Riser Wavenet 6E04SRXX2N 600MHz F/UTP 23AWG 1000ft Solid Copper Ethernet Cable

This Cat6 Riser Wavenet 6E04SRXX2N Ethernet cable is a high-performance, shielded twisted-pair solution designed for structured cabling systems that demand reliable data transmission across vertical building runs. Rated for riser environments and verified to industry standards, it delivers consistent signal integrity for modern network infrastructures requiring elevated bandwidth capacity and electromagnetic protection.

Product Specifications
The cable supports frequencies up to 600MHz with a nominal velocity of propagation of 69 percent. It contains four twisted pairs of 23AWG solid bare copper conductors with an overall conductor diameter of 0.045 inches. The nominal outer diameter measures 0.2992 inches with a tolerance of ±0.008 inches, and the nominal weight is 37 pounds per 1000-foot reel. DC resistance is rated at a maximum of 9.38 ohms per 100 meters at 20°C, with resistance unbalance not exceeding 5 percent. Capacitance unbalance is limited to 330 pF per 100 meters maximum, while mutual capacitance reaches 5.6 nF per 100 meters maximum. Delay skew is held to 45 nS per 100 meters maximum at 20°C.

Features and Applications
An aluminum foil shield provides protection against electromagnetic interference, making this cable suitable for environments with moderate to high noise levels. The flame-retardant PVC jacket meets CMR riser and FT4 flame test requirements, allowing safe installation in vertical shafts and between floors. A ripcord and internal separator simplify jacket stripping and pair separation during termination. Insulation color coding follows standard TIA conventions with white/blue, white/orange, white/green, and white/brown pairs for easy identification. Performance is ETL verified to TIA-568-C.2 standards and the cable is RoHS compliant.

Uses

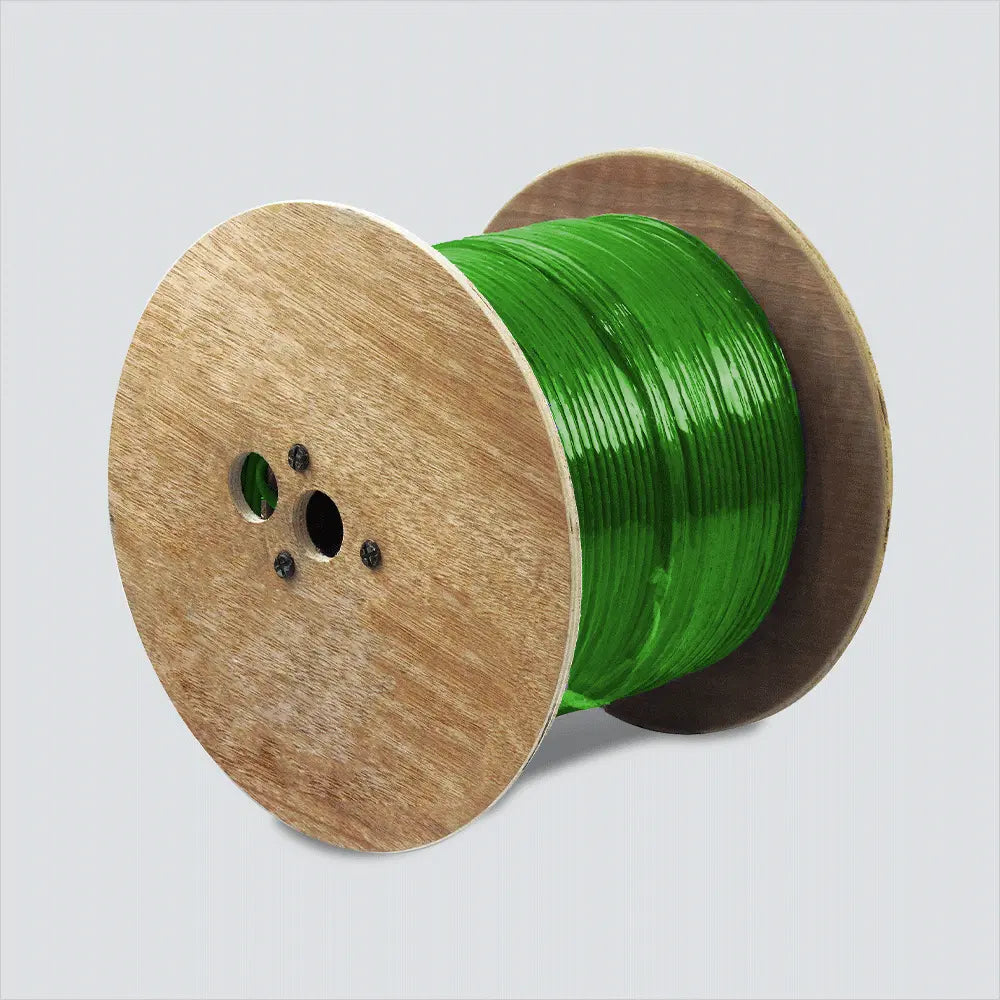

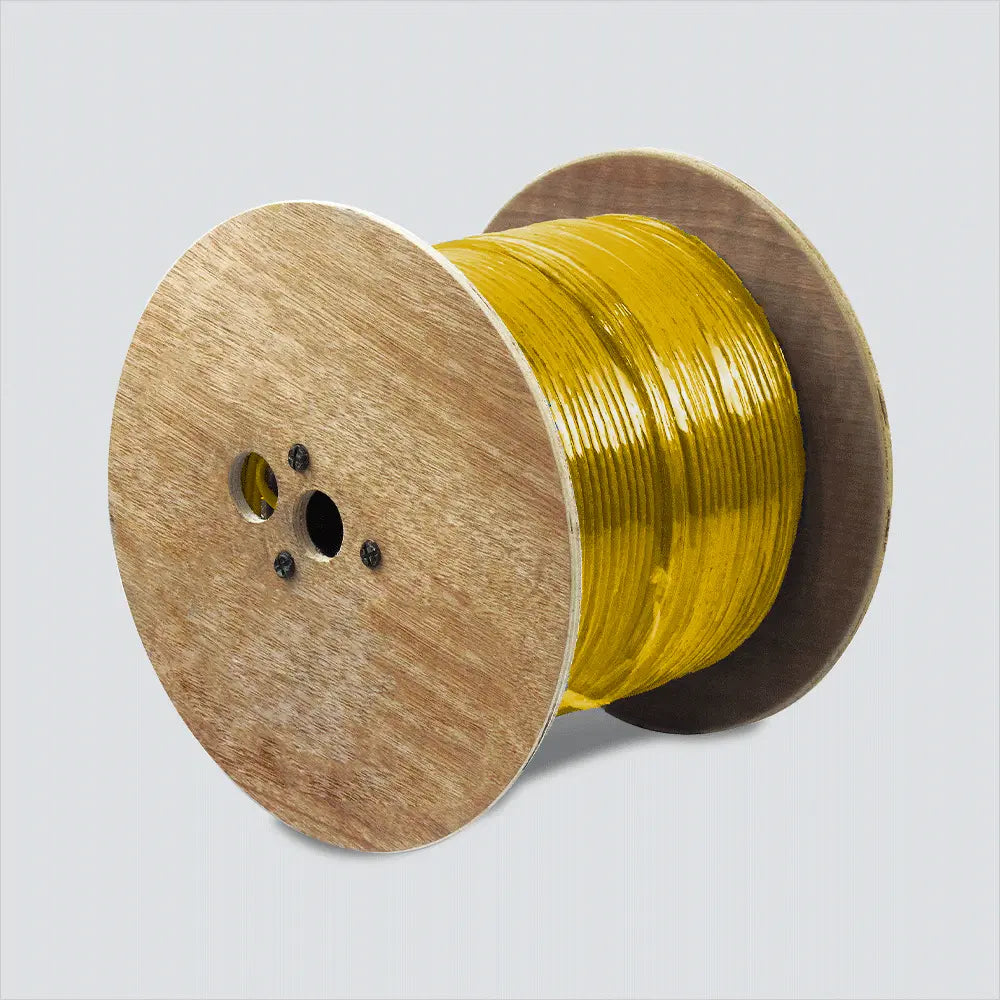

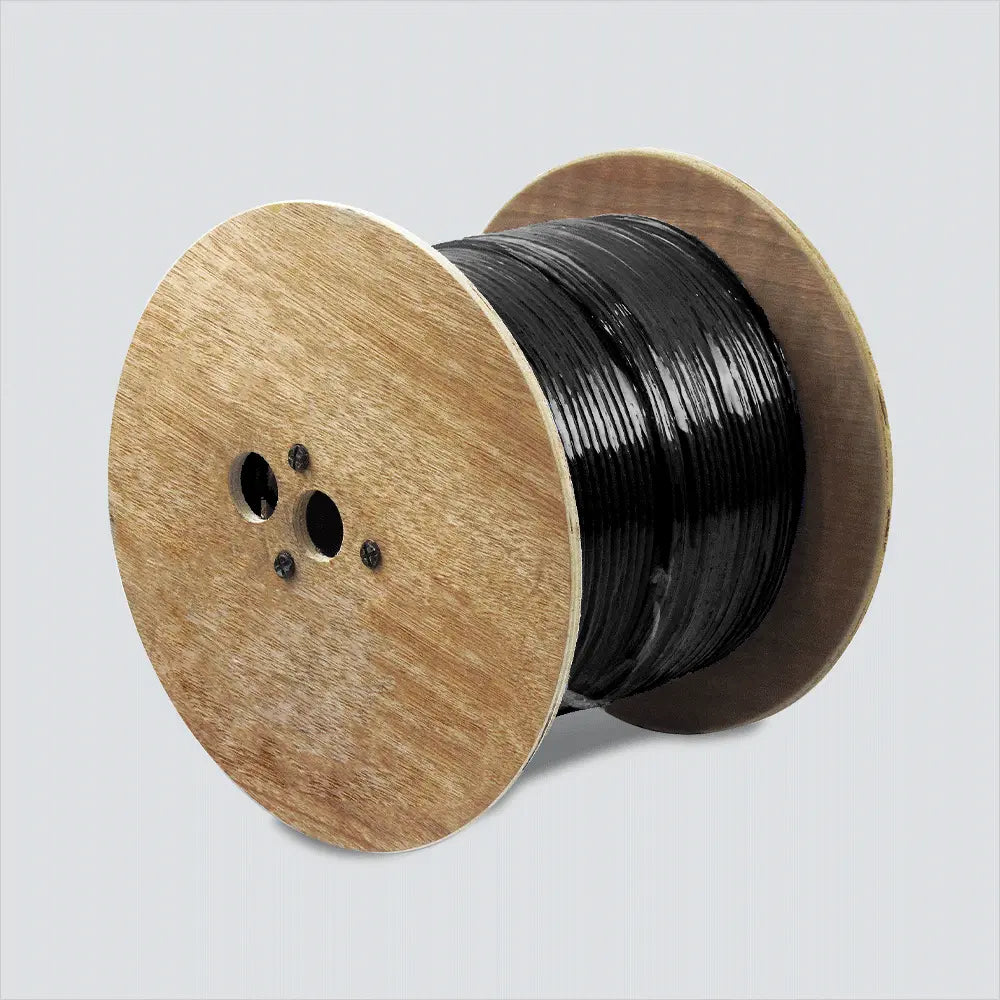

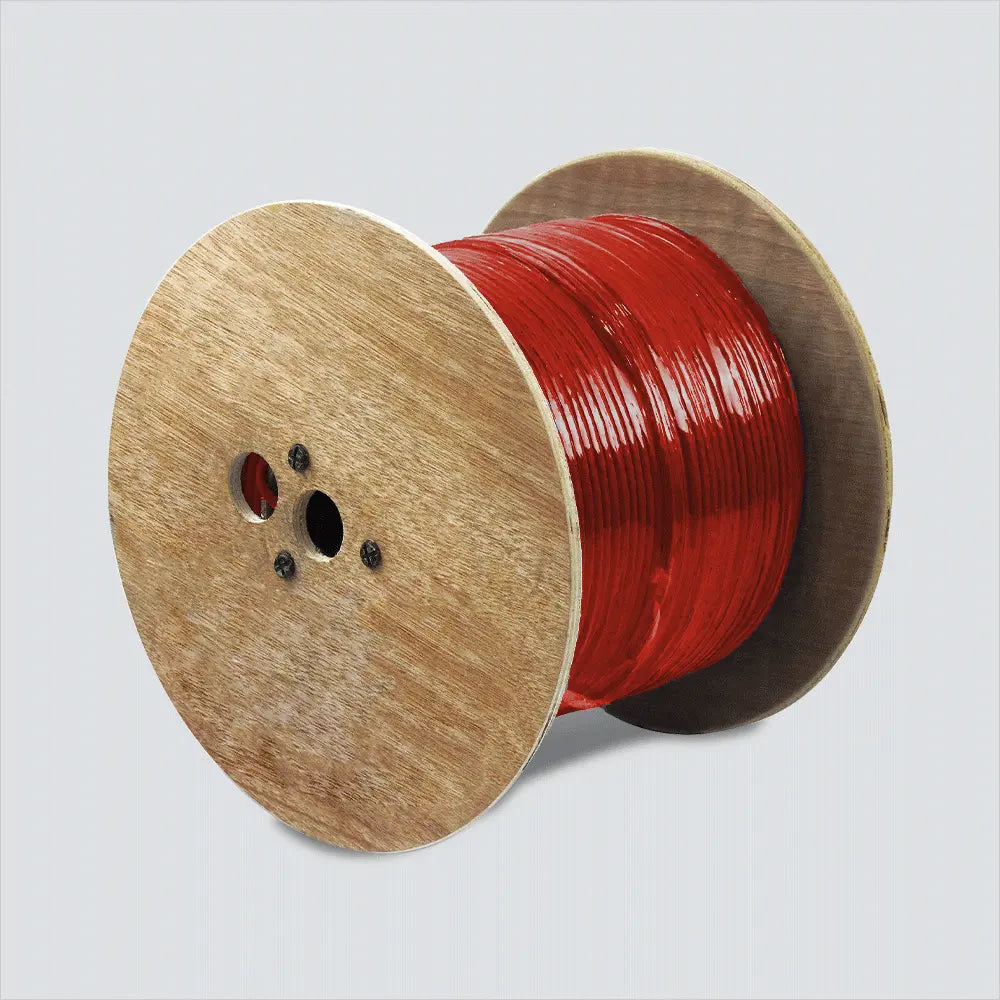

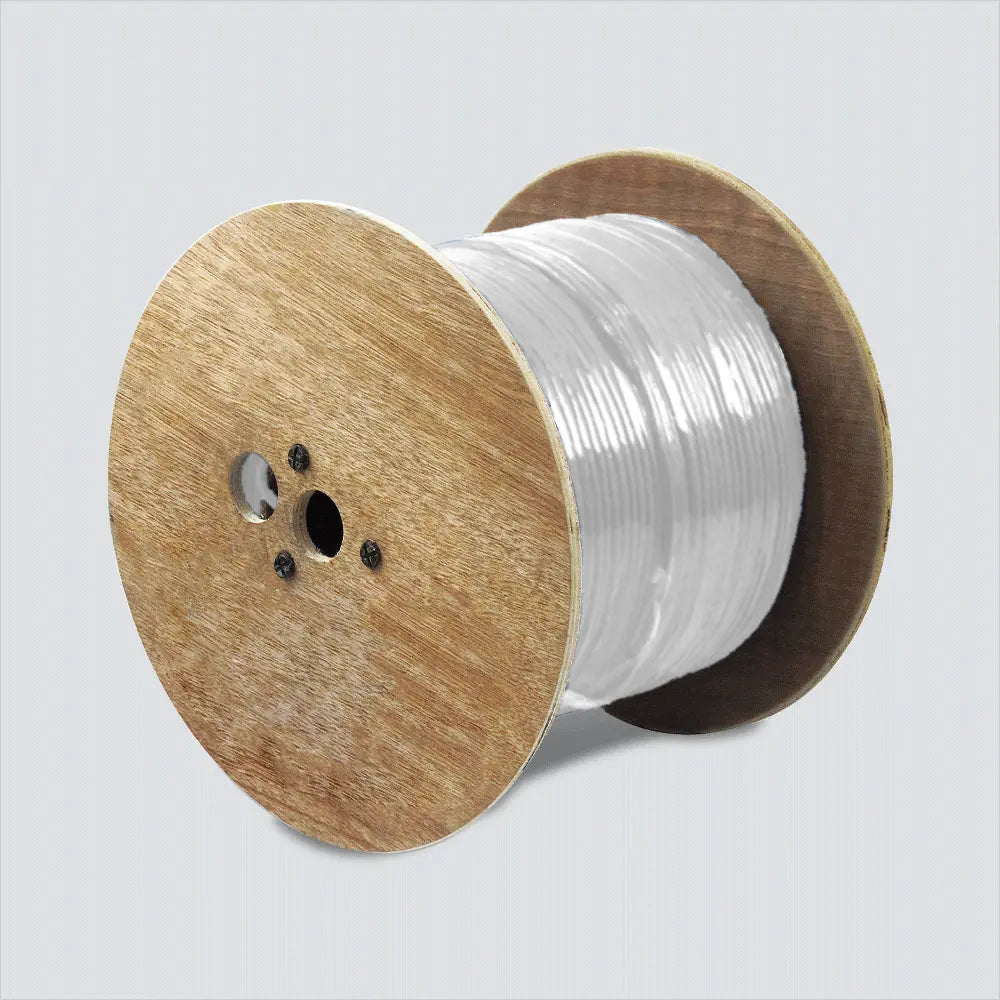

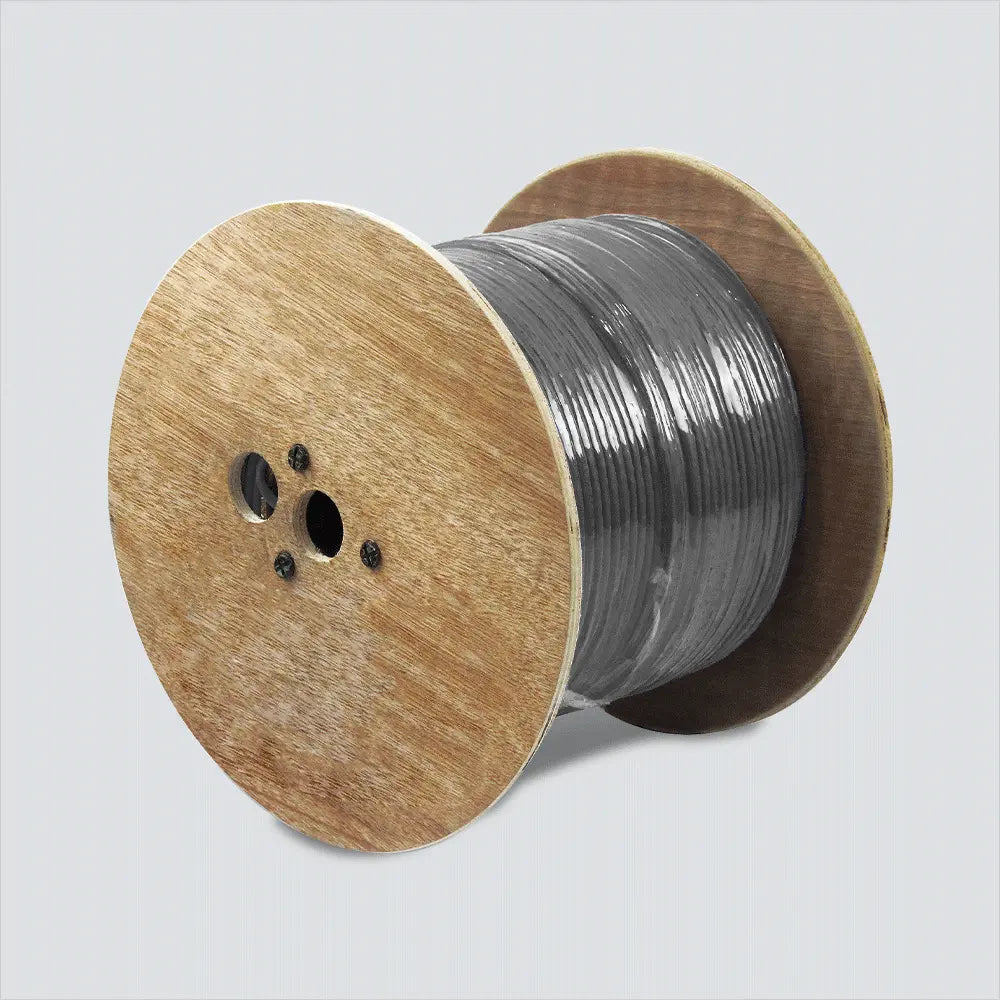

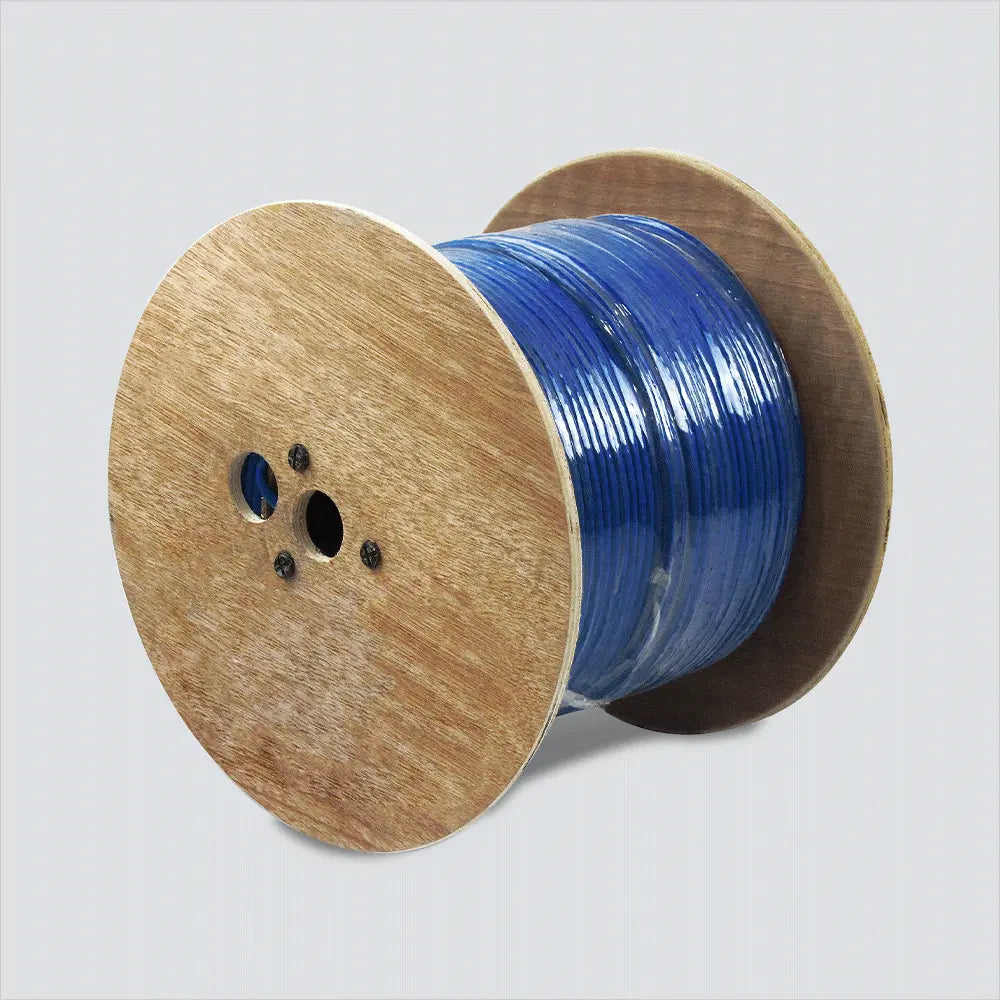

This cable is intended for commercial building networks, educational institutions, healthcare facilities, and multi-dwelling units where riser-rated cabling is mandated by local code. It supports Gigabit Ethernet and is suitable for VoIP, video streaming, and data backbone applications running through inter-floor conduits and riser spaces. The 1000-foot reel format suits medium to large installation projects, and the cable is available in eight jacket colors including black, blue, green, grey, red, white, yellow, and purple to support color-coded network segmentation.

Construction
The conductor core uses solid bare copper for optimal conductivity and long-distance signal preservation. Each conductor is individually insulated with high-density polyethylene, providing electrical isolation with an average insulation thickness of 0.0106 inches. The pairs are arranged around a central separator that maintains geometry and reduces crosstalk. An aluminum foil shield wraps the core assembly, supplemented by a drain wire for grounding. The outer jacket consists of flame-retardant PVC with an average wall thickness of 0.0236 inches, engineered to withstand tensile strength exceeding 13.8 MPa before aging and maintaining at least 85 percent of unaged tensile strength after 168 hours at 100°C. Elongation remains at or above 100 percent before aging and at least 50 percent of unaged values after thermal conditioning.

Additional relevant information
Installation temperature range is 0°C to 75°C, while operating temperature spans from -20°C to 75°C. The cable marking includes the category rating, bandwidth, gauge, pair count, shielding type, CMR and FT4 classifications, ETL verification marks, and compliance reference to ANSI/TIA-568-C.2. Wavenet manufactures this cable and provides technical support through their listed contact channels. Electrical performance tables detail attenuation, return loss, near-end crosstalk, power-sum NEXT, ELFEXT, power-sum ELFEXT, propagation delay, and attenuation-to-crosstalk ratio values across the full frequency spectrum from 1MHz to 600MHz for precise system engineering.
