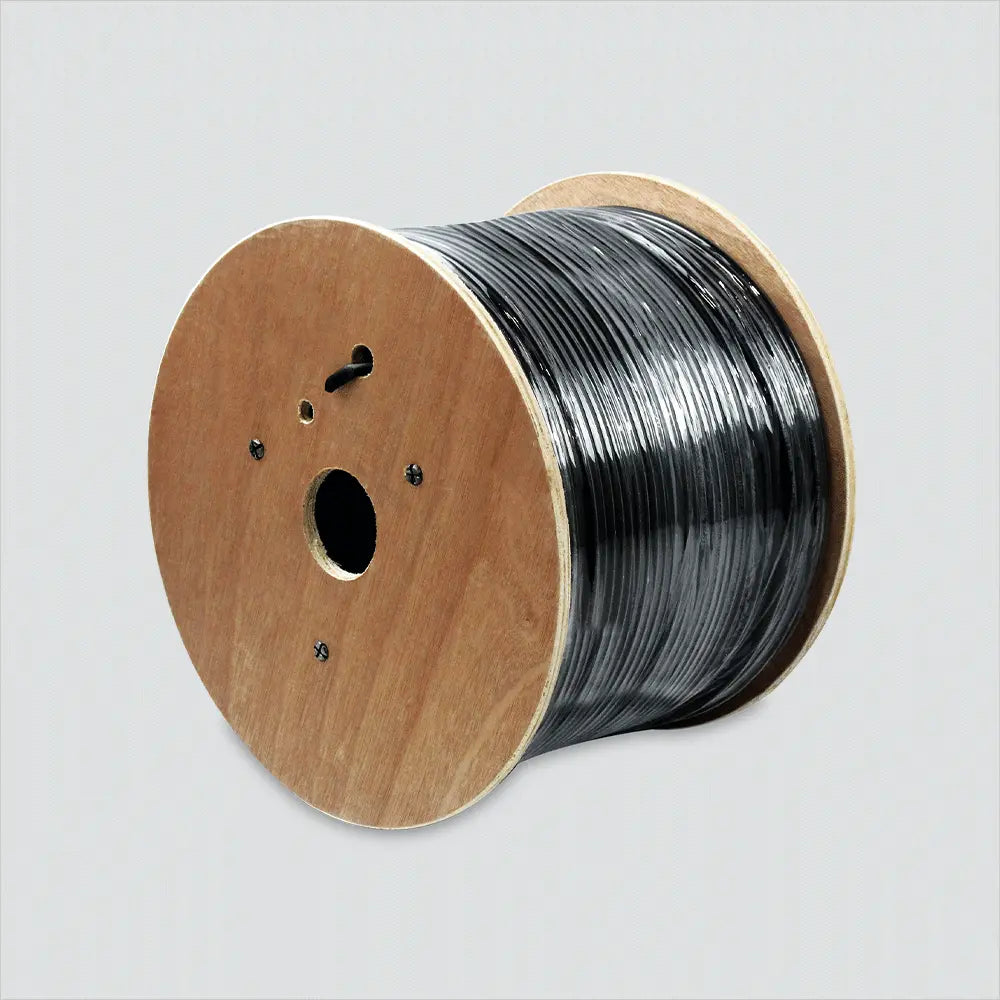

Cat6 Direct Burial Wavenet 6EOSPBK2N Waterblock PE 600MHz UTP 23AWG 1000ft Solid Copper Ethernet Cable

This Wavenet Cat6 direct burial ethernet cable is built for network runs that leave the building and face the elements head-on. Supplied on a 1000-foot reel, it delivers Category 6 performance in outdoor and underground environments without the added expense of protective conduit. Water-blocking technology and a rugged outer jacket work together to maintain signal integrity through seasonal ground moisture and temperature swings, giving installers confidence that the connection will hold up long after the trench is closed.

The cable carries four unshielded twisted pairs constructed from 23AWG solid bare copper wire. Each conductor measures 0.040 inches in diameter with an insulation thickness averaging 0.0088 inches. The overall nominal outer diameter is 0.318 inches, and the entire reel weighs approximately 32 pounds. Electrical performance includes a maximum DC resistance of 9.38 ohms per 100 meters at 20°C, resistance unbalance capped at 5 percent, and mutual capacitance not exceeding 5.6 nanofarads per 100 meters. Delay skew remains within 45 nanoseconds per 100 meters, and the nominal velocity of propagation is 69 percent. The cable meets TIA-568-C.2 transmission requirements and UL444 mechanical property standards, and it is RoHS compliant.

With 600MHz of usable bandwidth, the cable readily supports gigabit and multigigabit Ethernet speeds for demanding network backbones. Its black LLDPE jacket is specifically formulated for prolonged UV exposure, preventing the cracking and brittleness that can shorten service life in outdoor installations. A wide operating temperature window accommodates climates ranging from freezing winters to hot summers, while the reel packaging keeps the cable organized and kink-free during long pulls across campus grounds or rural properties. These traits make it a practical choice for anyone extending LAN connectivity beyond traditional indoor boundaries.

Typical deployments include trench runs between main structures and detached outbuildings, backhaul links for outdoor wireless access points, and direct connections to PoE security cameras mounted on exterior walls or poles. It also fits small cell installations, campus network extensions across landscaped areas, and remote sensor networks in agricultural or industrial settings. Any project that calls for Category 6 performance in an outdoor environment can benefit from this direct burial-rated design.

At the center, four conductors provide the electrical foundation, each insulated with high-density polyethylene and twisted into pairs around a cross-shaped separator that preserves geometry and controls crosstalk. The cable core is fully treated with WaterBlock compound to prevent water from migrating longitudinally, and the entire bundle is wrapped in a linear low-density polyethylene jacket tough enough for direct contact with soil. A ripcord beneath the jacket simplifies termination prep in the field.

The cable marking reads: CATEGORY 6 600MHZ 23AWG 4PR UTP DIRECT BURIAL OUTDOOR WATERBLOCK TIA-568-C.2, with sequential footage markings. The color code follows standard TIA pairing: white/blue with blue, white/orange with orange, white/green with green, and white/brown with brown.
