Description
Professional-grade networking solution for commercial installations

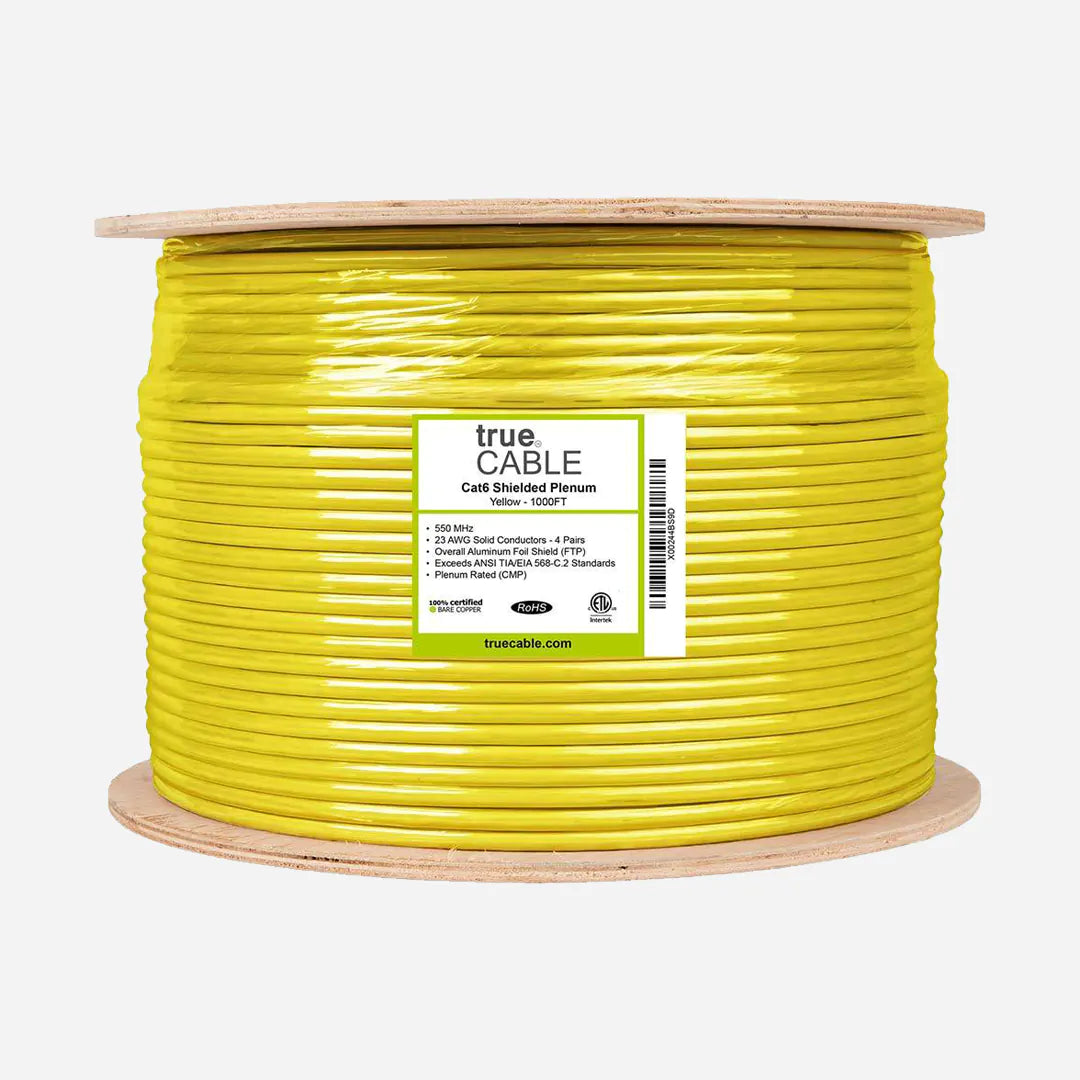

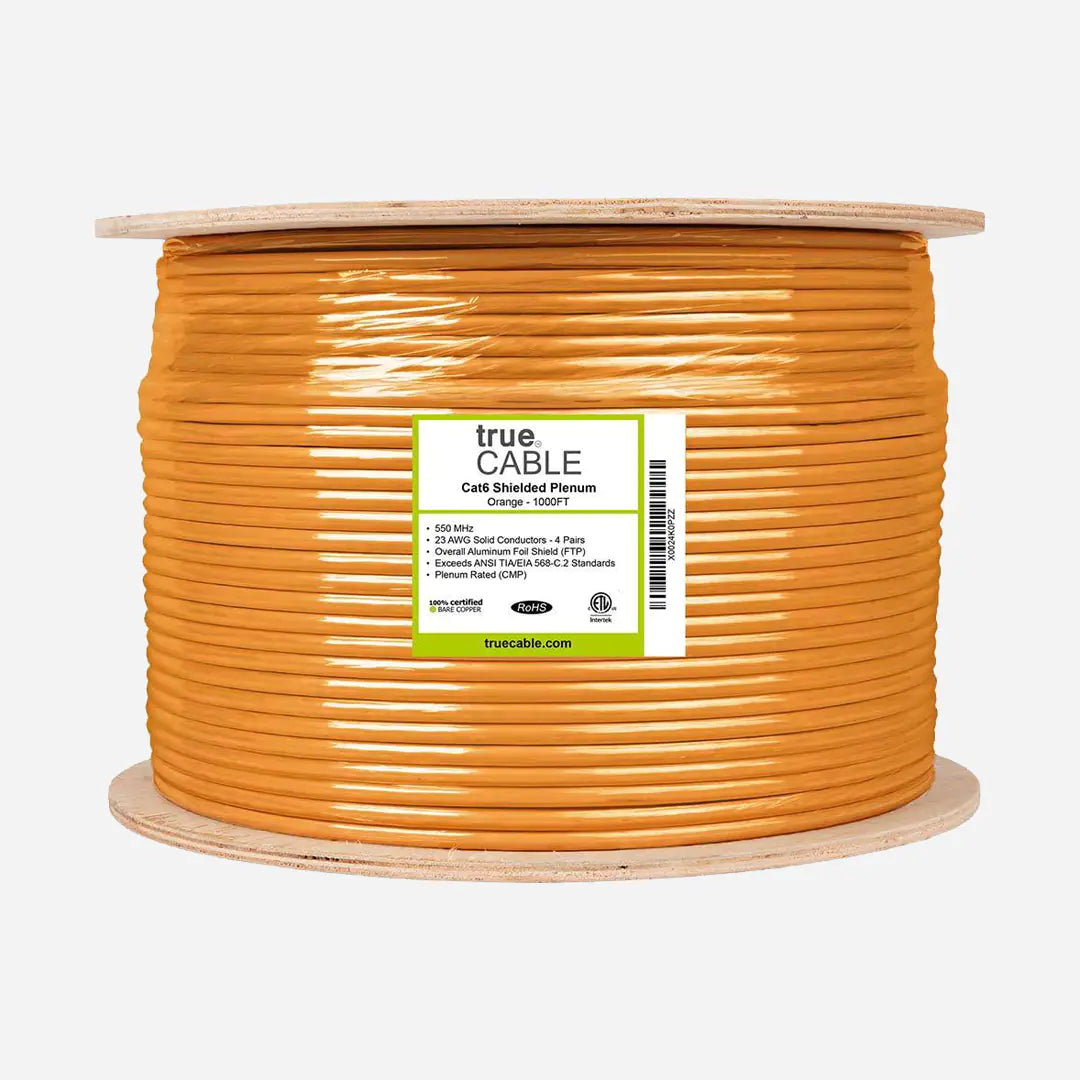

The trueCABLE Cat6 Plenum Shielded cable delivers reliable high-speed connectivity for demanding commercial environments. This 1000-foot spool of 23AWG solid copper cable meets stringent plenum fire safety requirements while providing exceptional performance for modern network applications.
Product Specifications
This F/UTP (Foiled/Unshielded Twisted Pair) cable features four twisted pairs of 23AWG solid bare copper conductors with FEP insulation. The cable maintains a 100-ohm impedance across its 550MHz bandwidth and includes a polyethylene spline for structural integrity. Sequential footage markings every two feet simplify installation tracking.
Features and Applications
Certified for Power over Ethernet applications including PoE, PoE+, and PoE++ (IEEE 802.3af/at/bt), with 4PPoE support up to 100 watts. The cable supports network speeds from 10BASE-T through 5GBASE-T, making it suitable for both current and future network requirements. Colour-coded twisted pairs follow industry standards for easy identification during termination.
Uses
Ideal for commercial building installations requiring plenum-rated cable in air handling spaces. Perfect for connecting network equipment, security cameras, wireless access points, and VoIP phones. The shielded design protects against electromagnetic interference in electrically noisy environments.
Construction

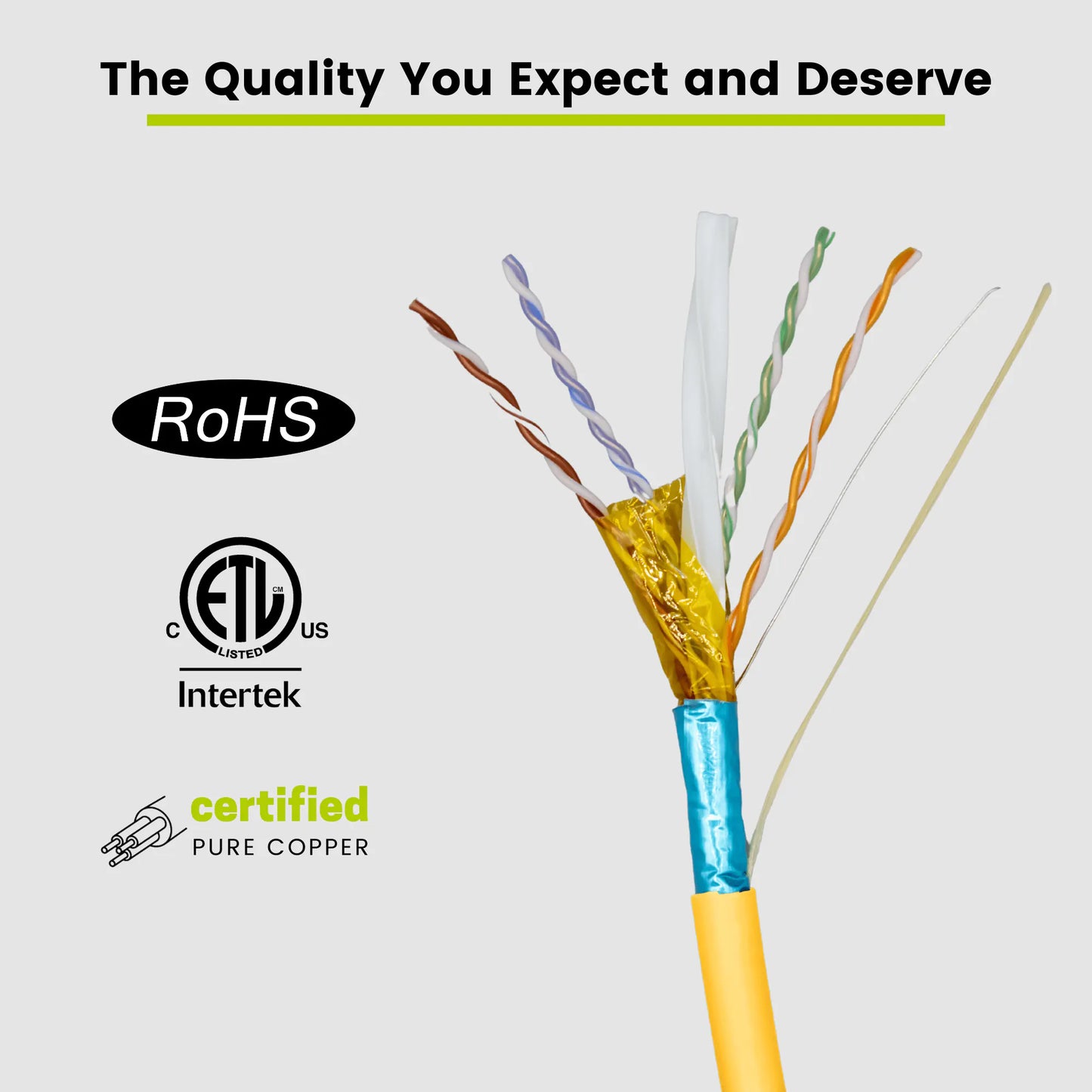

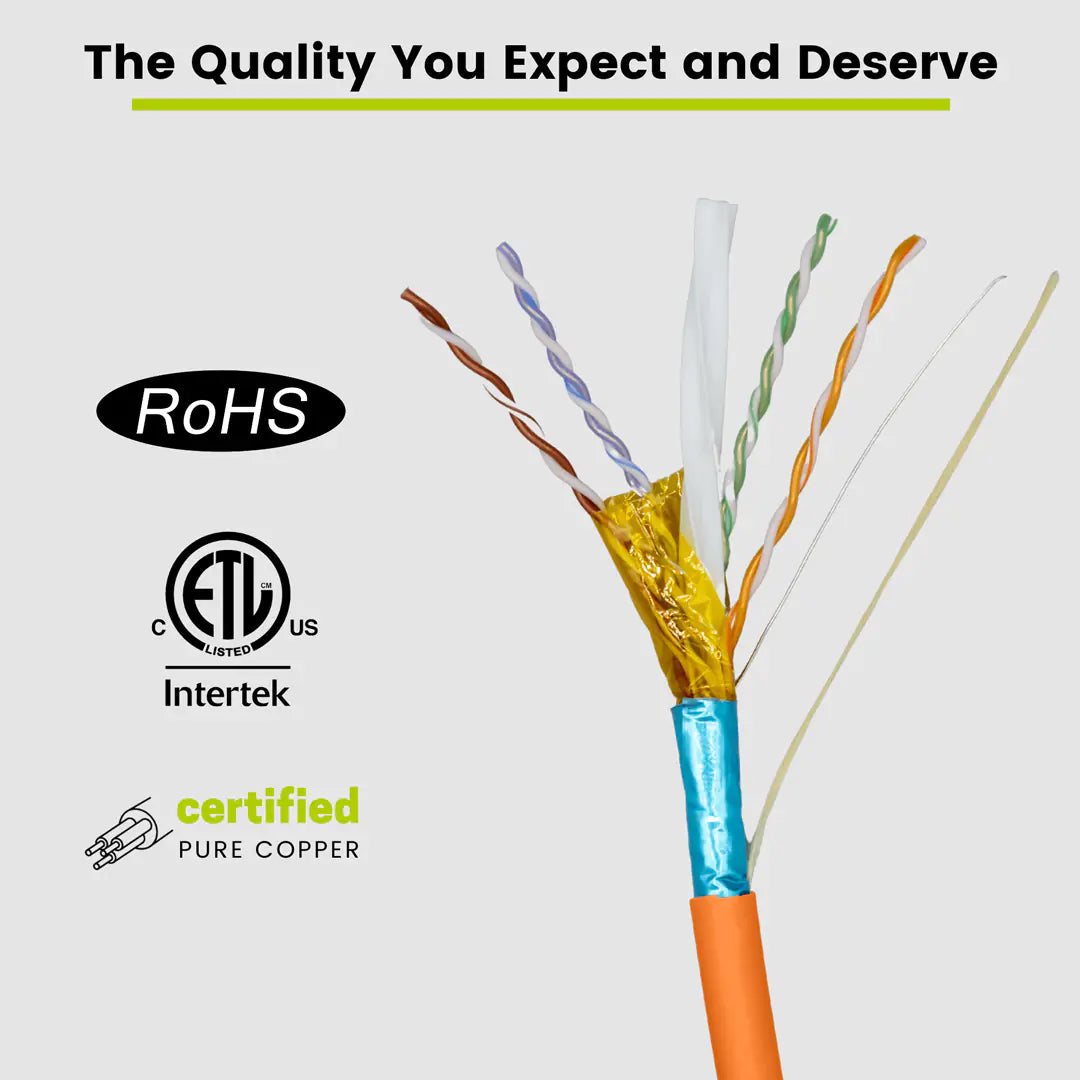

Features aluminium foil shielding with a solid tinned copper drain wire for superior EMI protection. The FR-PVC jacket provides flame resistance meeting CMP (Communications Multipurpose Plenum) requirements. Kevlar ripcord enables easy jacket removal during termination. The cable's 7.20mm outer diameter balances performance with manageable installation characteristics.
Quality Assurance
Manufactured with certified pure copper conductors and backed by comprehensive testing to ANSI/TIA 568.2-D Category 6 standards. Each cable undergoes rigorous quality control, including bandwidth verification up to 550MHz. RoHS-3 compliant construction ensures environmental responsibility. Available in multiple jacket colors to support organised cable management systems.
Additional Info & Specs
| Color | Yellow, Orange |
|---|---|
| Product Type | Ethernet Cable |
| Condition | New |
| Brand | trueCABLE |
| Package | Reel in a Box |
| Category | 6 |
| Spaces | CMP |
| Gauge | 23 AWG |
| Jacket | Plenum-Rated |
| Insulation Material | FEP |
| No. of Pairs | 4 Twisted |
| Shielding | Shielded |
| Conductor | Solid |
| Conductor Material | Bare Copper |
| Certification Standards | UL Listed, ETL-Listed, RoHS-Compliant |
